Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Compass | On Inside Rear View Mirror |

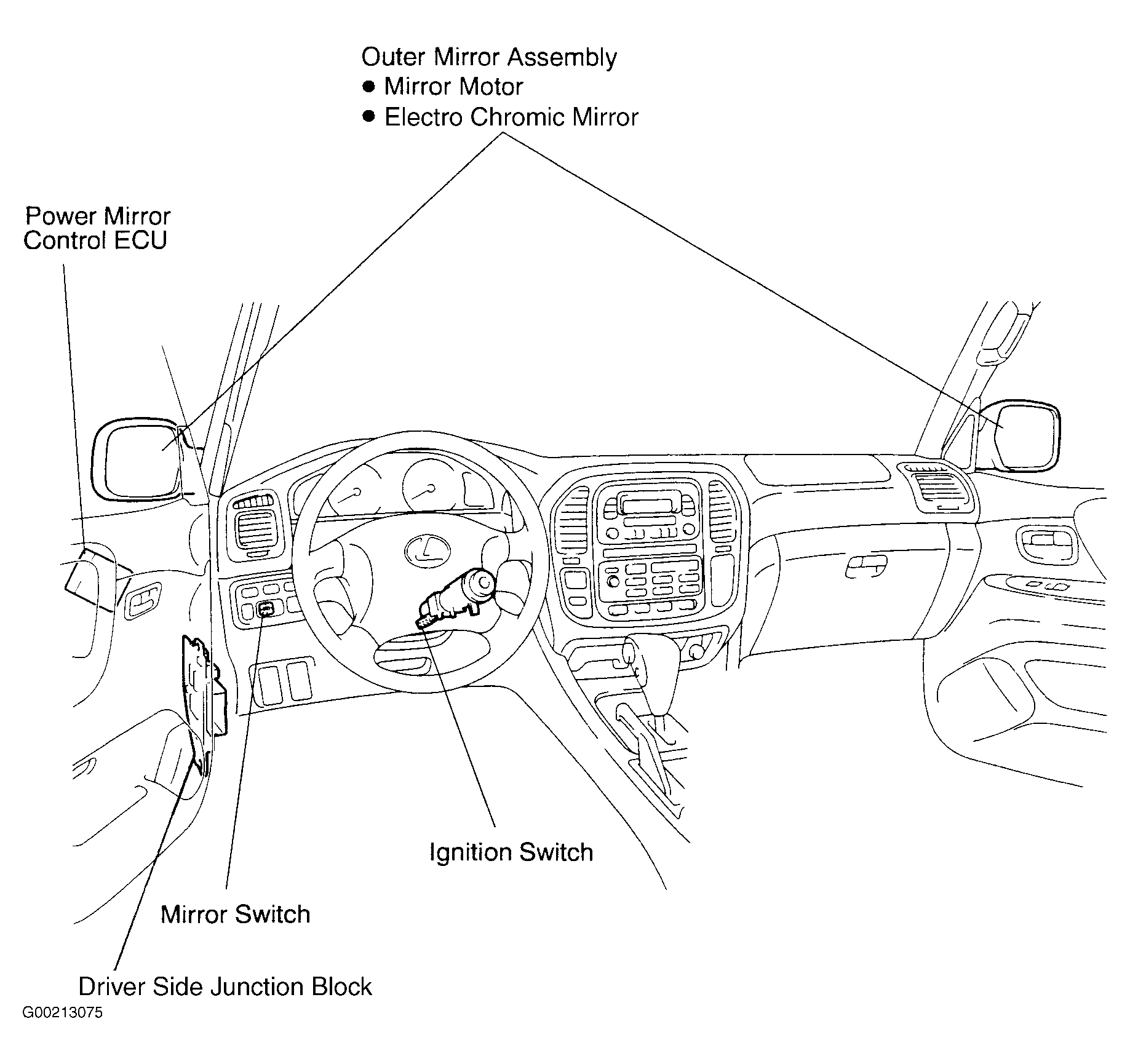

| Driver Side Junction Block | Fig 1 |
| Driving Position Memory Switch | In Upper Right Side Of Driver Door Trim Panel |
| Outside Electro Chromic Mirrors | Fig 1 |
| Outside Rear View Mirror Motors | Fig 1 |
| Power Mirror Control ECU | Fig 1 |
| Power Mirror Position Sensor (With Memory) | In Outside Rear View Mirror Assembly |
| Power Mirror Switch | Fig 1 |
