Circuit Description

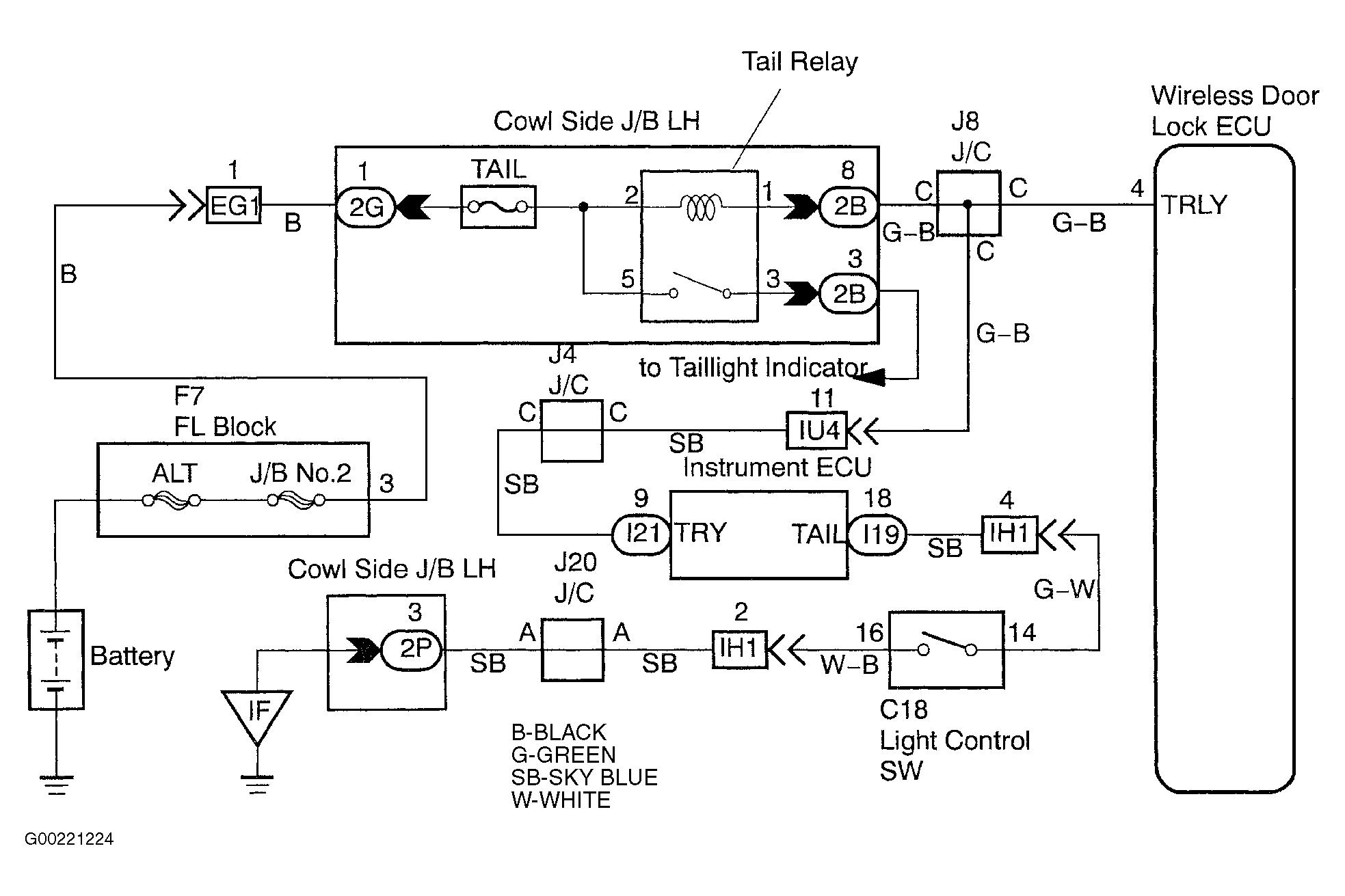

terminal No. 4 (TRLY) of the wireless door lock ECU outputs the signal once when pressing the LOCK switch of the transmitter and twice when pressing the UNLOCK switch and then makes the taillight come to light. See Fig 1.
terminal No. 4 (TRLY) of the wireless door lock ECU outputs the signal once when pressing the LOCK switch of the transmitter and twice when pressing the UNLOCK switch and then makes the taillight come to light. See Fig 1.
