Circuit Description

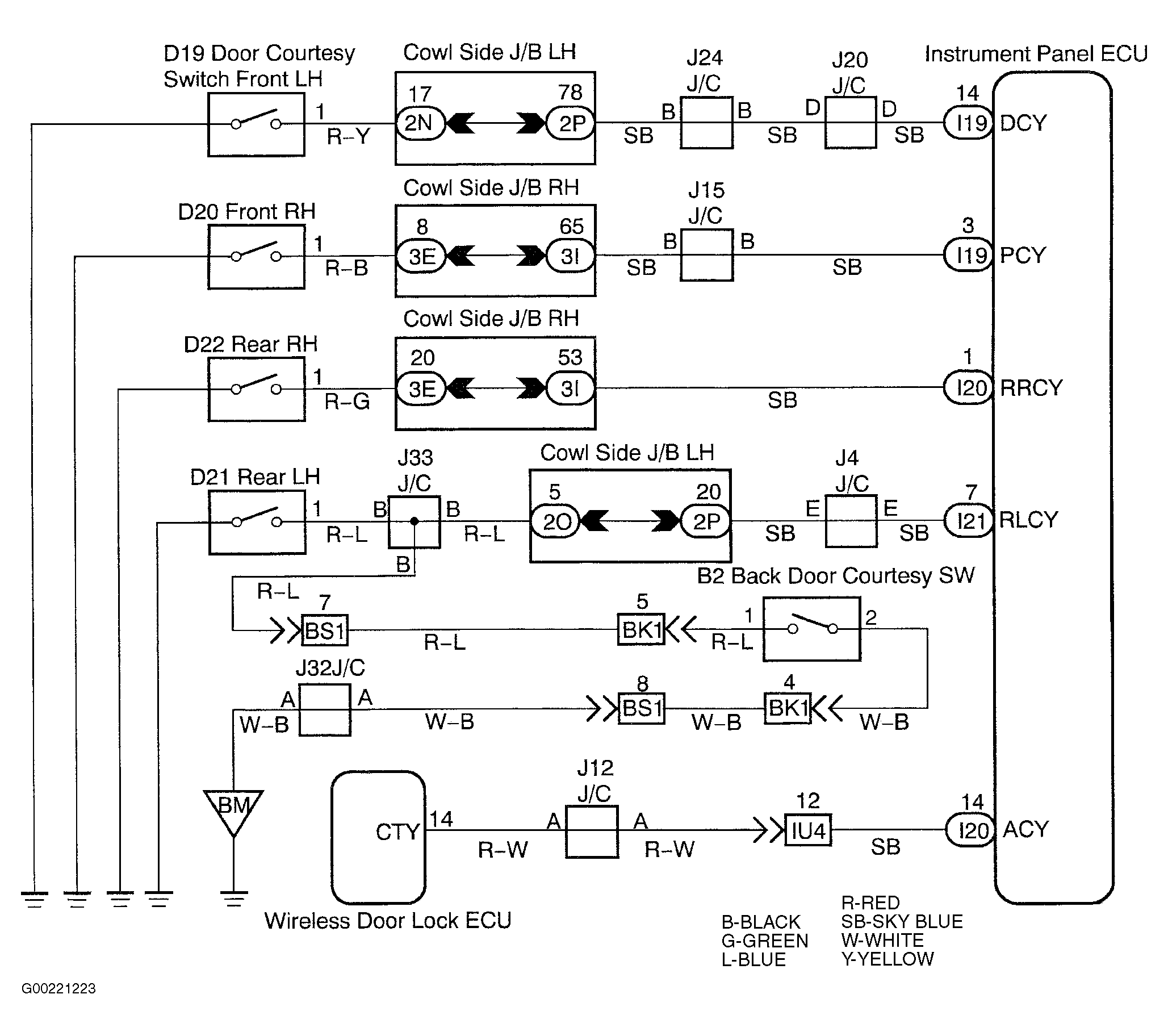

The door courtesy switch comes ON when the door is opened and goes OFF when the door is closed. Furthermore the door courtesy switch circuit has terminal +B connected inside the theft deterrent ECU. Battery positive voltage is applied to connector T6 terminal No. 4 (DSWD) of the theft deterrent ECU when all doors are closed (i.e. when the door courtesy switches of all doors are OFF). See Fig 1.
