Circuit Description

This circuit provides power to operate the theft deterrent ECU. See Fig 1.

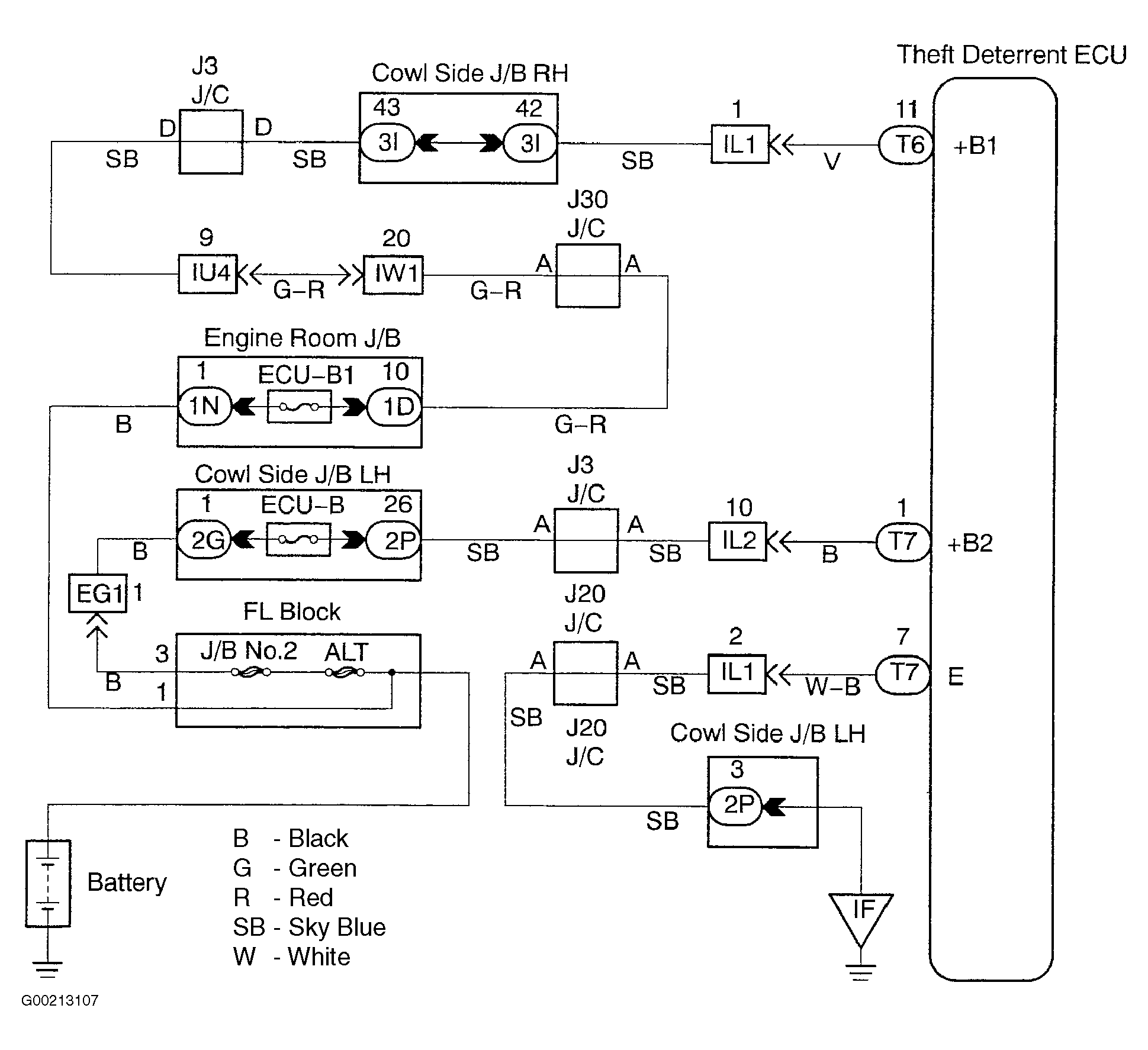

Fig 1: Identifying ECU Power Source Circuit

G00213107

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
