Circuit Description

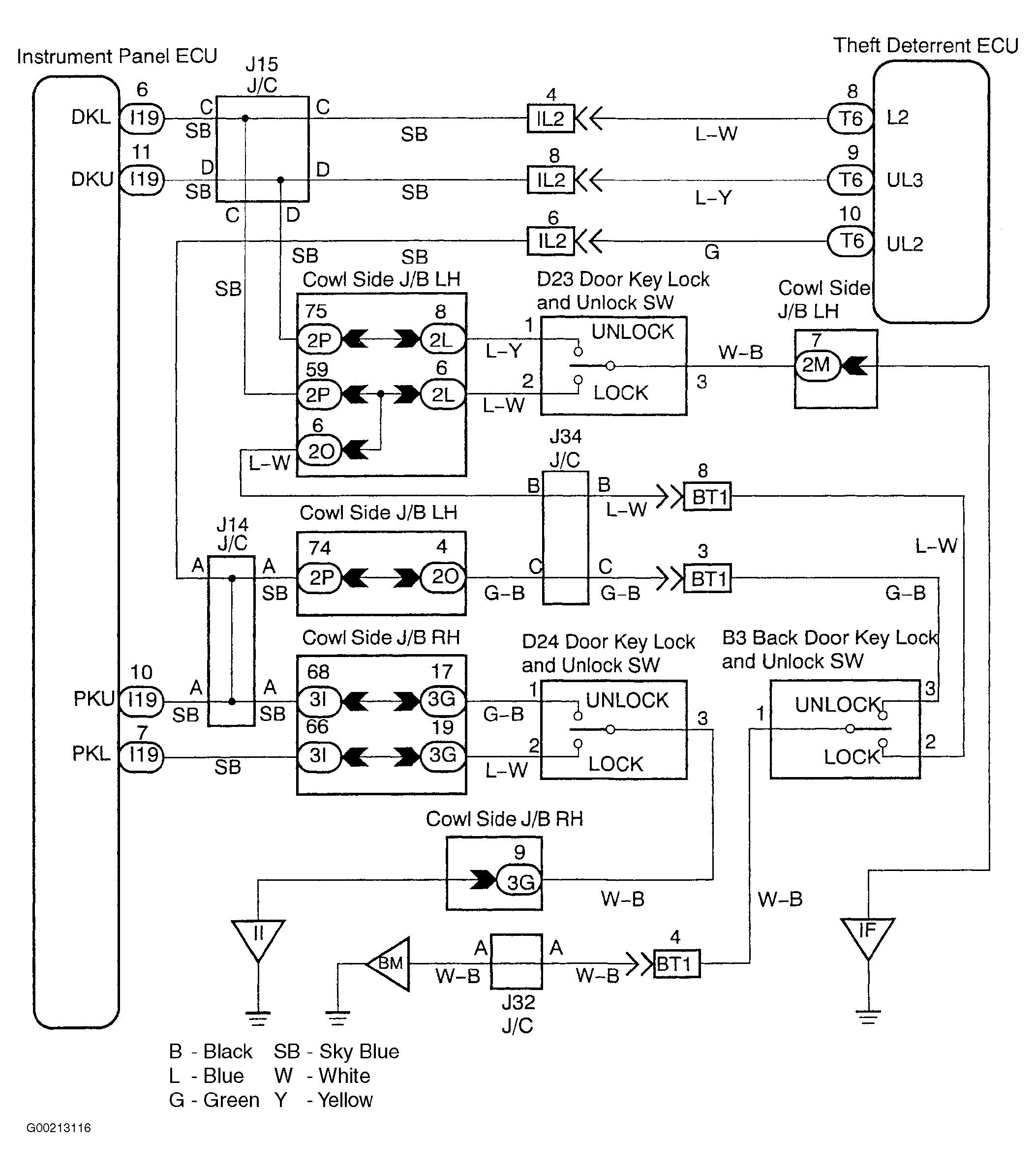

The door key lock and unlock switch is built in the door key cylinder. When the key is turned to the lock side, terminal No. 1 of the switch is grounded and when the key is turned to the unlock side, terminal No. 2 of the switch is grounded. See Fig 1.
