Circuit Description

The door courtesy switch goes ON when the door is opened and goes OFF when the door is closed. See Fig 1.

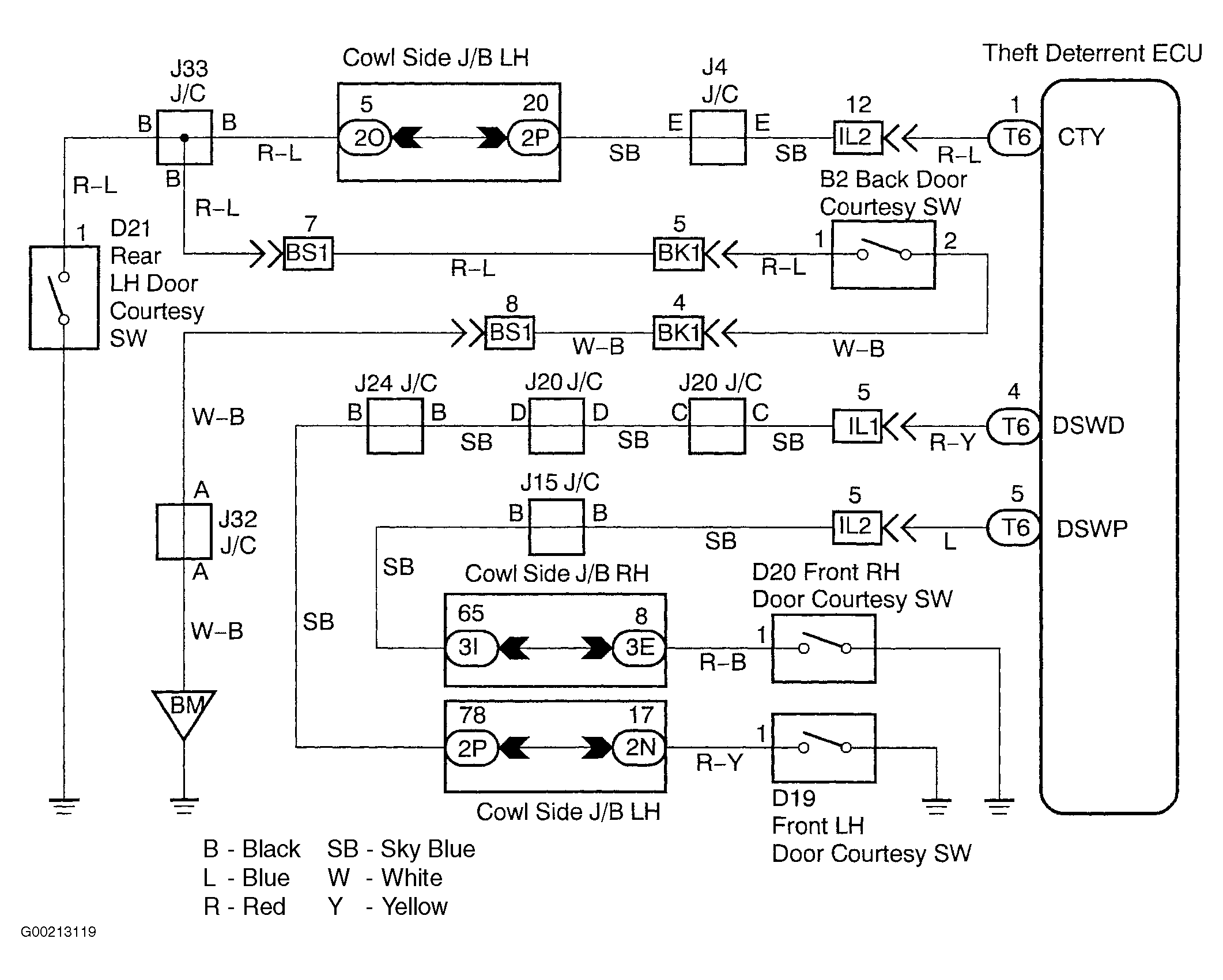

Fig 1: Identifying Door Courtesy Switch Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
