Connector Identification: Notes

Fig 1: Identifying Center ECU (A/C-Heater Control Assembly) Connector Terminals
G98D03632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

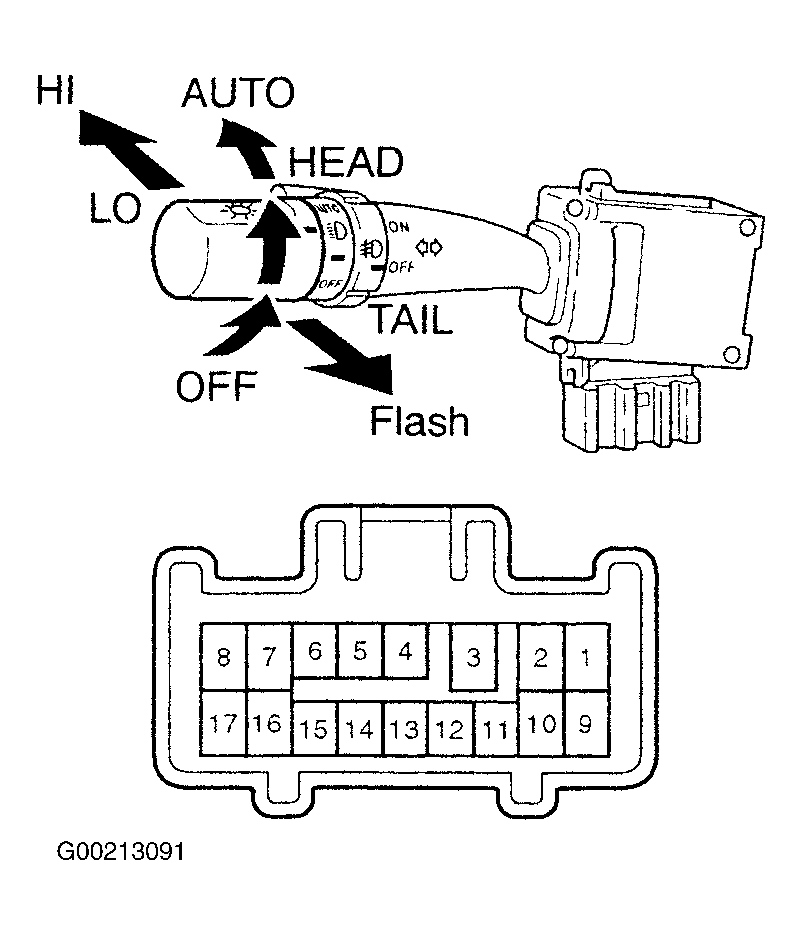

Fig 2: Identifying Combination Switch Connector Terminals
G00213091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Ignition Switch Connector Terminals
G96H07646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Key Unlock Warning Switch Connector Terminals
G00213090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Identifying Turn Signal Flasher Connector Terminals
G99I50136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
