Circuit Inspection

The taillight relay will be ON by operating the taillight switch. The transistor which activates the taillight relay has 2 types:

1. One activates directly by the headlight switch for fail safe operation.
2. Another activates by the body ECU.

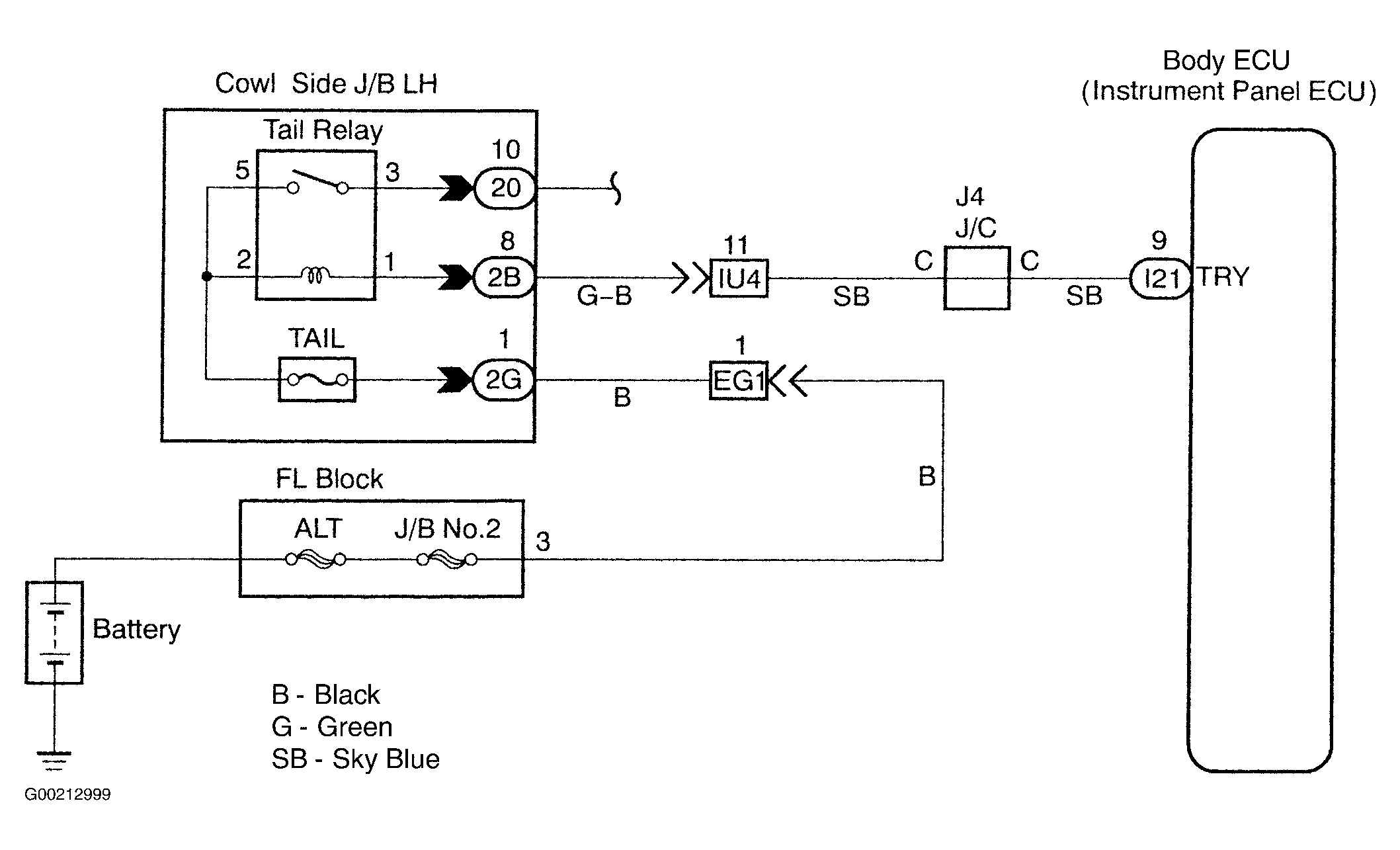

Fig 1: Identifying Taillight Relay Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
