Circuit Description

Receiving the courtesy signal from the body ECU (instrument ECU) will make the interior light, ignition light and courtesy light come on. See Fig 1.

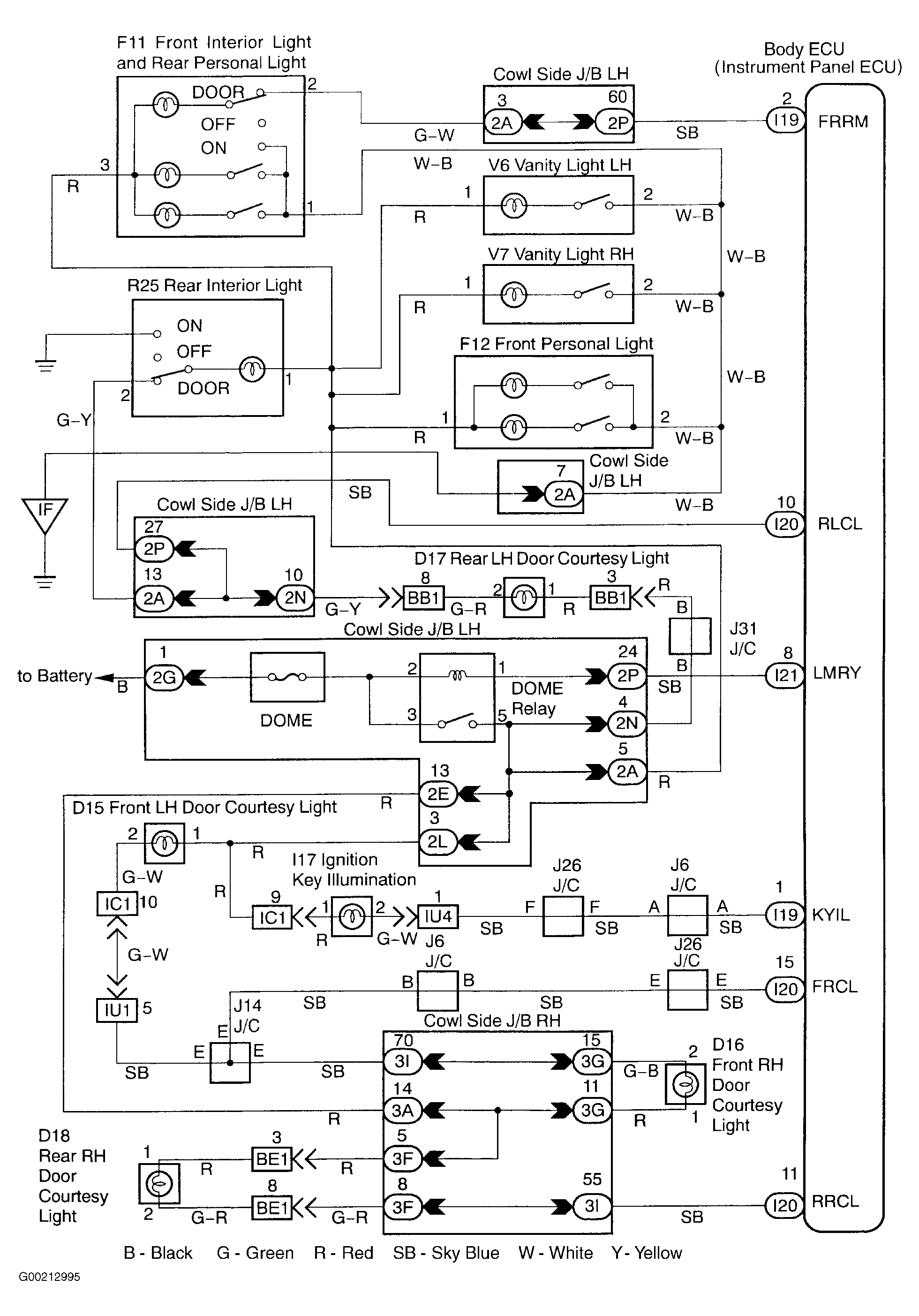

Fig 1: Identifying Illumination Circuit
