Remove A/C Control Assembly

  1. Using a moulding remover, remove the center cluster in order A", B", C", D".
  2. Disconnect the connector.

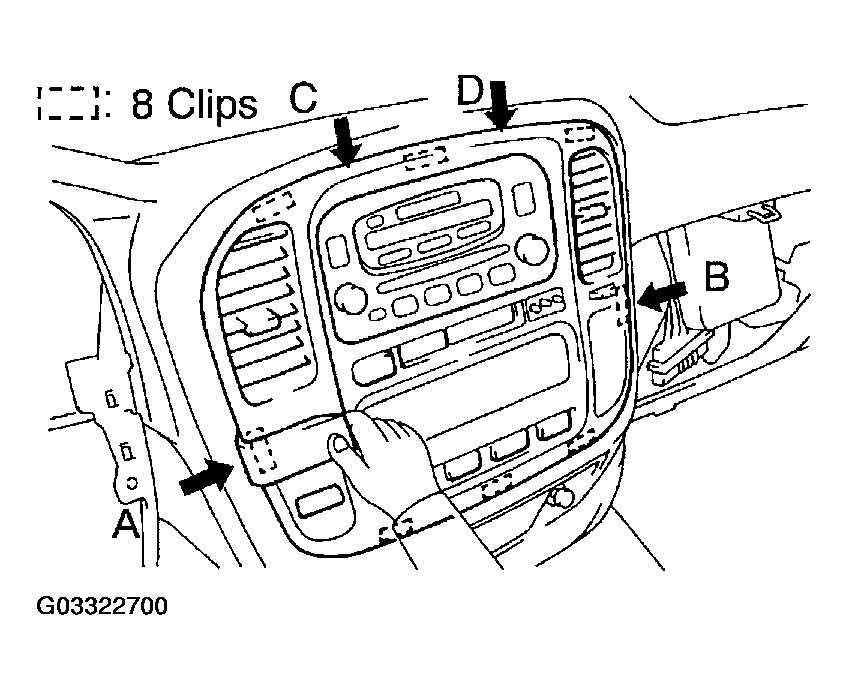

    3. Fig 1: Removing & Installing A/C Control Assembly
    G03322700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
