Rear A/C Control Assembly: Removal

  1. Remove rear seat center arm rest cover.
    1. Slide the cooling box cover.

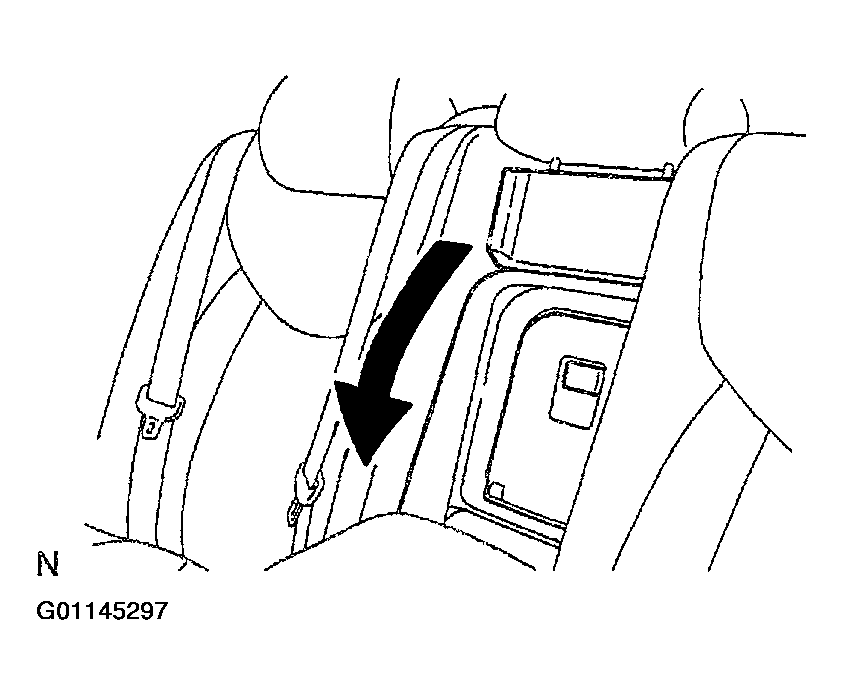

      Fig 1: Sliding Cooling Box Cover
      G01145297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and rear seat center arm rest cover.

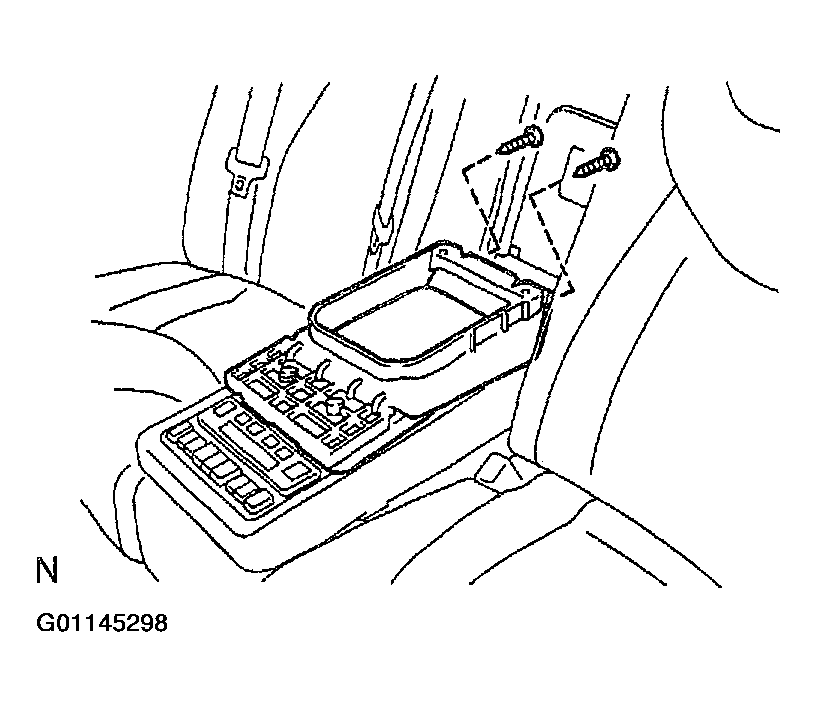

      Fig 2: Locating Screws & Rear Seat Center Arm Rest For Removal
      G01145298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove rear A/C control assembly.
    1. Remove the screw and rear seat center arm rest plate.
      Fig 3: Locating Screws For Removal
      G01145299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 screws and rear A/C control assembly.
