Condenser Fan: Disassembly

  1. Remove cooling fan computer.
    1. Disconnect the connectors.
    2. Remove the 3 screws and computer.

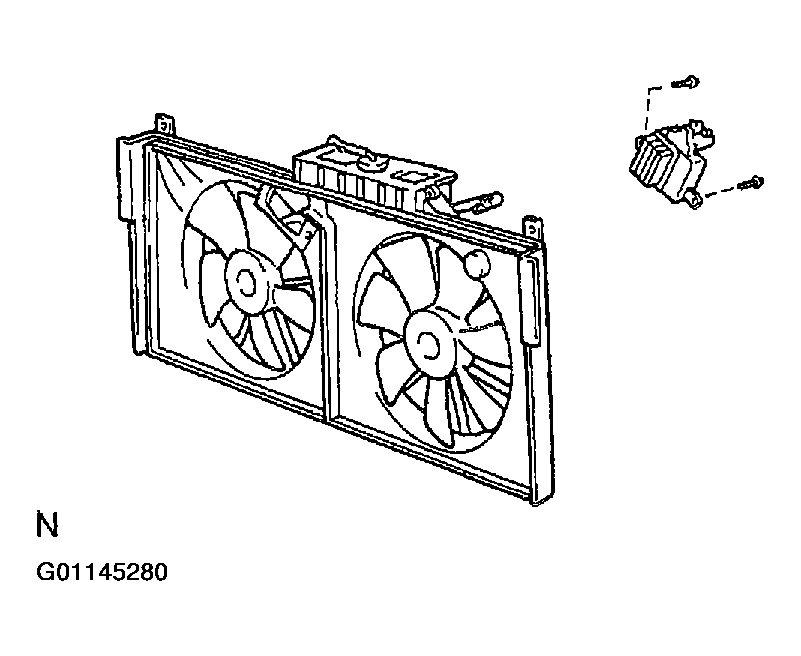

      Fig 1: Locating Screws & Computer For Removal
      G01145280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connectors.

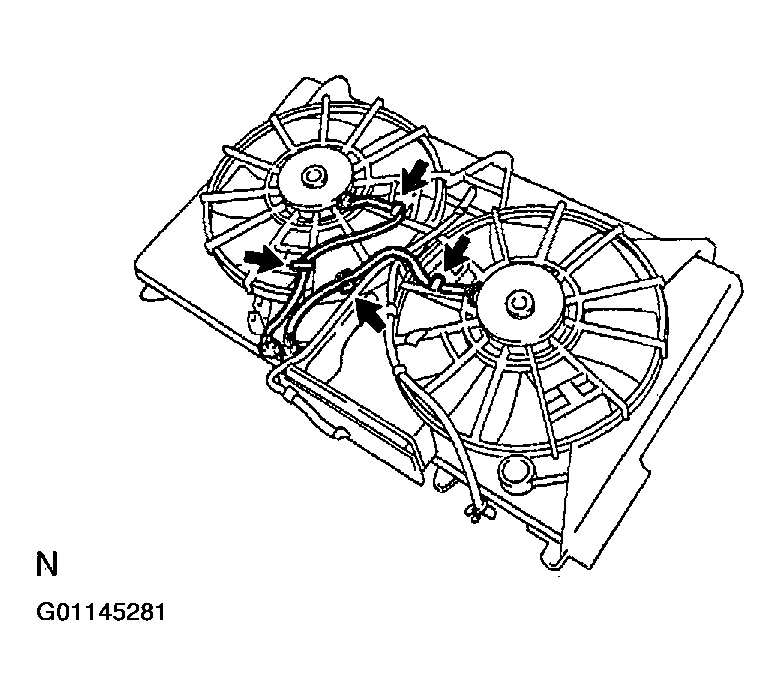

      Fig 2: Locating Connectors For Disconnection
      G01145281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove fan and motor.
    1. Remove the 2 nuts and 2 fans.
    2. Remove the 6 screws and 2 motors.

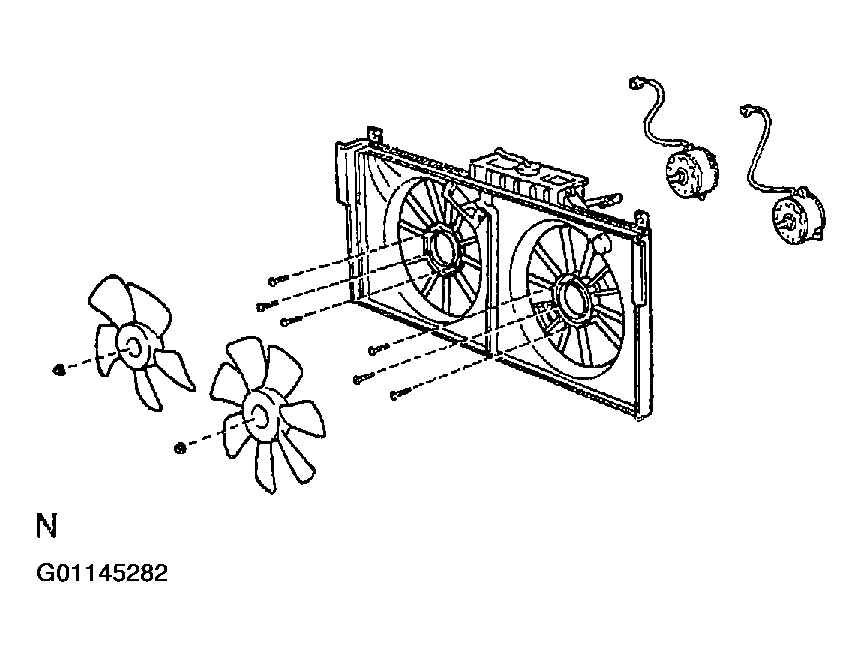

      Fig 3: Locating Nuts, Fans, Screws & Motors For Removal
      G01145282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
