Rear Combination Lamp Lens LH: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LIGHTING

  1. REMOVE TONNEAU COVER STOPPER SUB-ASSY LH (See  REPLACEMENT  )
  2. REMOVE REAR FLOOR FINISH PLATE (See  REPLACEMENT  )
  3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See  REPLACEMENT  )
  4. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH (See  REPLACEMENT  )
  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH (See  REPLACEMENT  )
  6. REMOVE SPARE WHEEL COVER ASSY (See  REPLACEMENT  )
  7. REMOVE TOOL BOX COVER (See  REPLACEMENT  )
  8. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSY REAR (See  REPLACEMENT  )
  9. REMOVE TONNEAU COVER ASSY (See  REPLACEMENT  )
  10. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER (See  REPLACEMENT  )
  11. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT (See  REPLACEMENT  )
  12. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE LH (See  REPLACEMENT  )
  13. REMOVE REAR LAMP COVER LH
    1. Using a screwdriver, remove the rear lamp cover LH.
  14. REMOVE REAR COMBINATION LAMP LENS LH
    1. Remove the bolt.
    2. Pull out the rear combination lamp lens LH forward, then disconnect the 2 pins and rear combination lamp guide of body side.
    3. Remove the 2 bulb sockets and rear combination lamp lens LH.

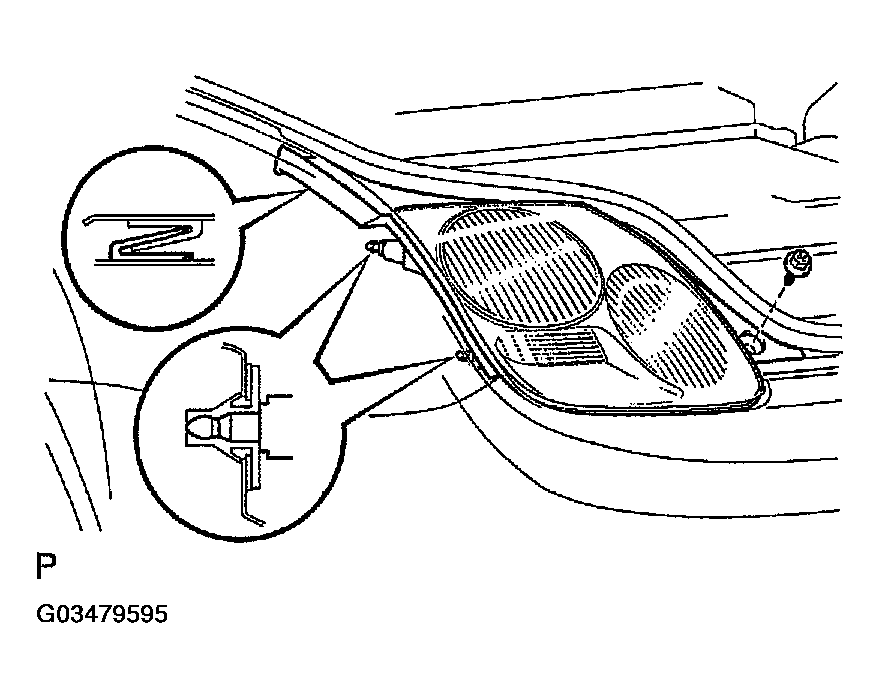

    Fig 1: Removing Rear Combination Lamp Lens
    G03479595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
