Section 533 (Fog Lamps): Overhaul

HINT:

• COMPONENTS: SEE LOCATION .
• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.
• Reassembly is in the reverse order of overhaul.

1. REMOVE ENGINE UNDER COVER NO.1 (SEE  ON-VEHICLE INSPECTION  )
2. REMOVE FRONT FENDER LINER LH (SEE  ON-VEHICLE INSPECTION  )
3. REMOVE FRONT FENDER LINER RH (SEE  ON-VEHICLE INSPECTION  )
4. REMOVE FRONT BUMPER COVER (SEE  ON-VEHICLE INSPECTION  )
5. REMOVE FOG LAMP ASSY LH
   1. Remove the bolt from the fog lamp assy LH.
   2. Release the 2 claw fittings, then pull out the fog lamp assy LH.

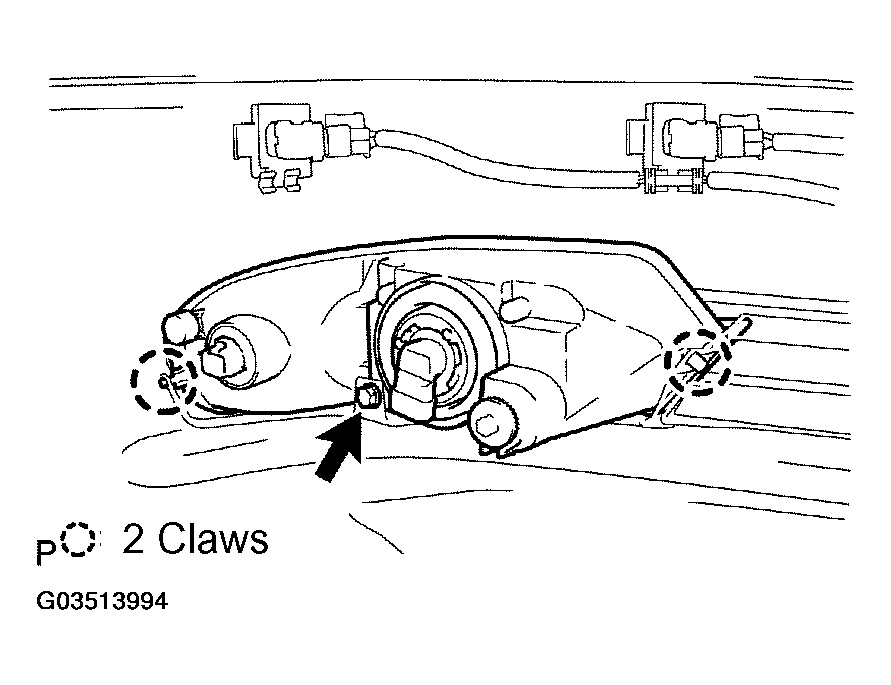

      Fig 1: Releasing Claw Fittings And Removing Fog Lamp Assembly LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE FOG LAMP BULB
   1. Remove the fog lamp bulb from the fog lamp assy LH as shown in the illustration.

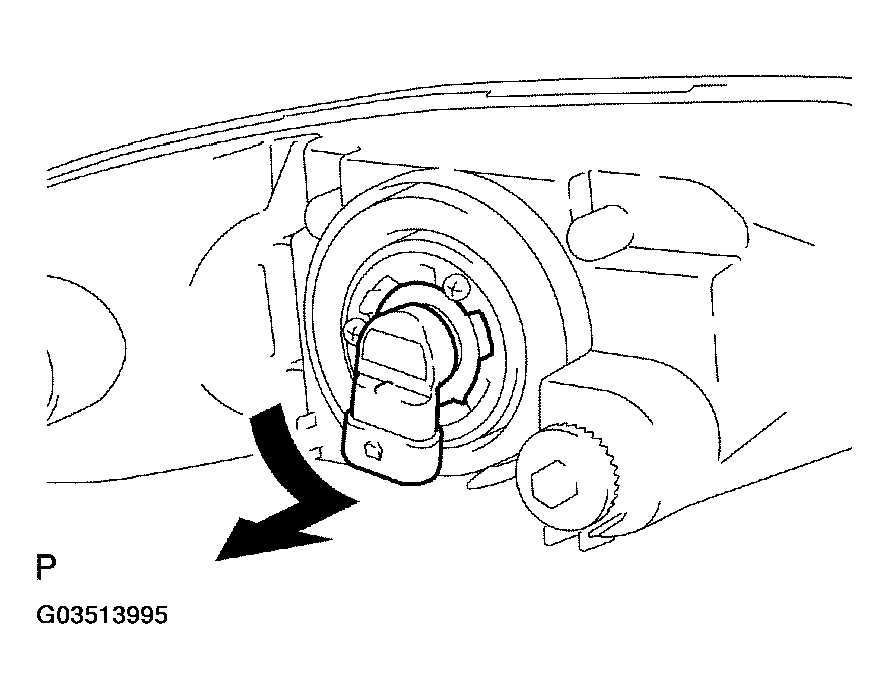

      Fig 2: Removing Fog Lamp Bulb From Fog Lamp Assembly LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL FRONT BUMPER COVER (SEE  ON-VEHICLE INSPECTION  )
8. INSTALL FRONT FENDER LINER LH (SEE  ON-VEHICLE INSPECTION  )
9. INSTALL FRONT FENDER LINER RH (SEE  ON-VEHICLE INSPECTION  )
10. INSTALL ENGINE UNDER COVER NO.1 (SEE  ON-VEHICLE INSPECTION  )
11. PUT VEHICLE UNDER THESE CONDITIONS (SEE  ADJUSTMENT  )
12. ADJUST FOG LIGHT AIM (SEE  ADJUSTMENT  )
