Wiper Rubber LH: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE FR WIPER BLADE LH
1. Remove the front wiper blade LH from the front wiper arm LH.
  NOTE: Do not fold down the front wiper arm with the front wiper blade being removed from it.
REMOVE WIPER RUBBER LH
1. Remove the front wiper rubber LH from the front wiper blade LH.
2. Remove the 2 wiper rubber backing plates from the wiper rubber LH.
INSTALL WIPER RUBBER LH
1. Install the 2 wiper rubber backing plates to the wiper rubber LH.
  NOTE: Be careful not to install the packing plate back or front.

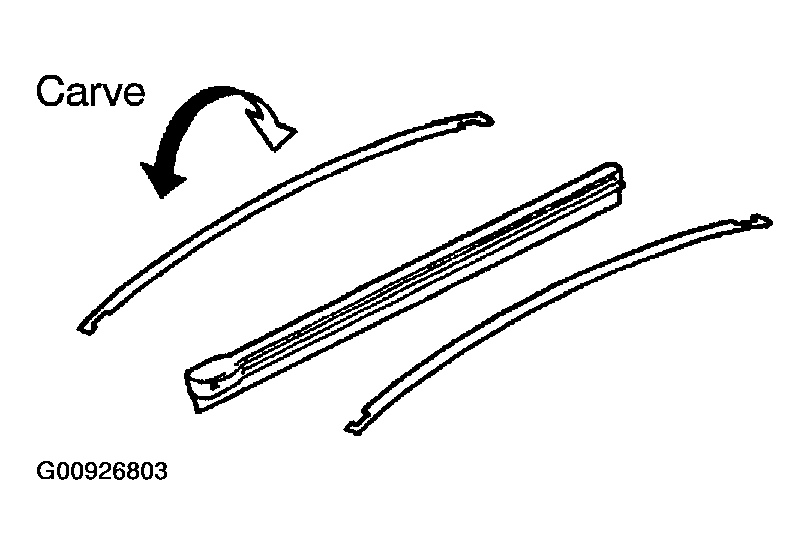

  Fig 1: Identifying Shapes Of Wiper Rubber Backing Plates
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the wiper rubber LH in the way that the head part (Longer side) of the wiper rubber faces the arm axle side.
  NOTE: Push in the front wiper blade into the grooves of the wiper rubber to completely engage them.

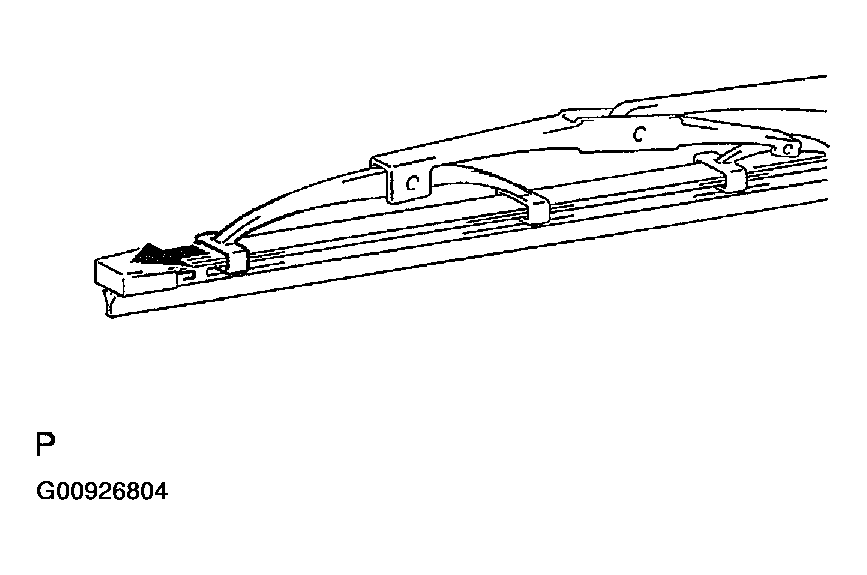

  Fig 2: Installing Wiper Rubber LH In Way That Head Part Of Wiper Rubber Faces Arm Axle Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
