Section 388 (Power Steering Gear)
>>
Power Steering Gear
>>
Components
Power Steering Gear: Components
WARNING:
This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

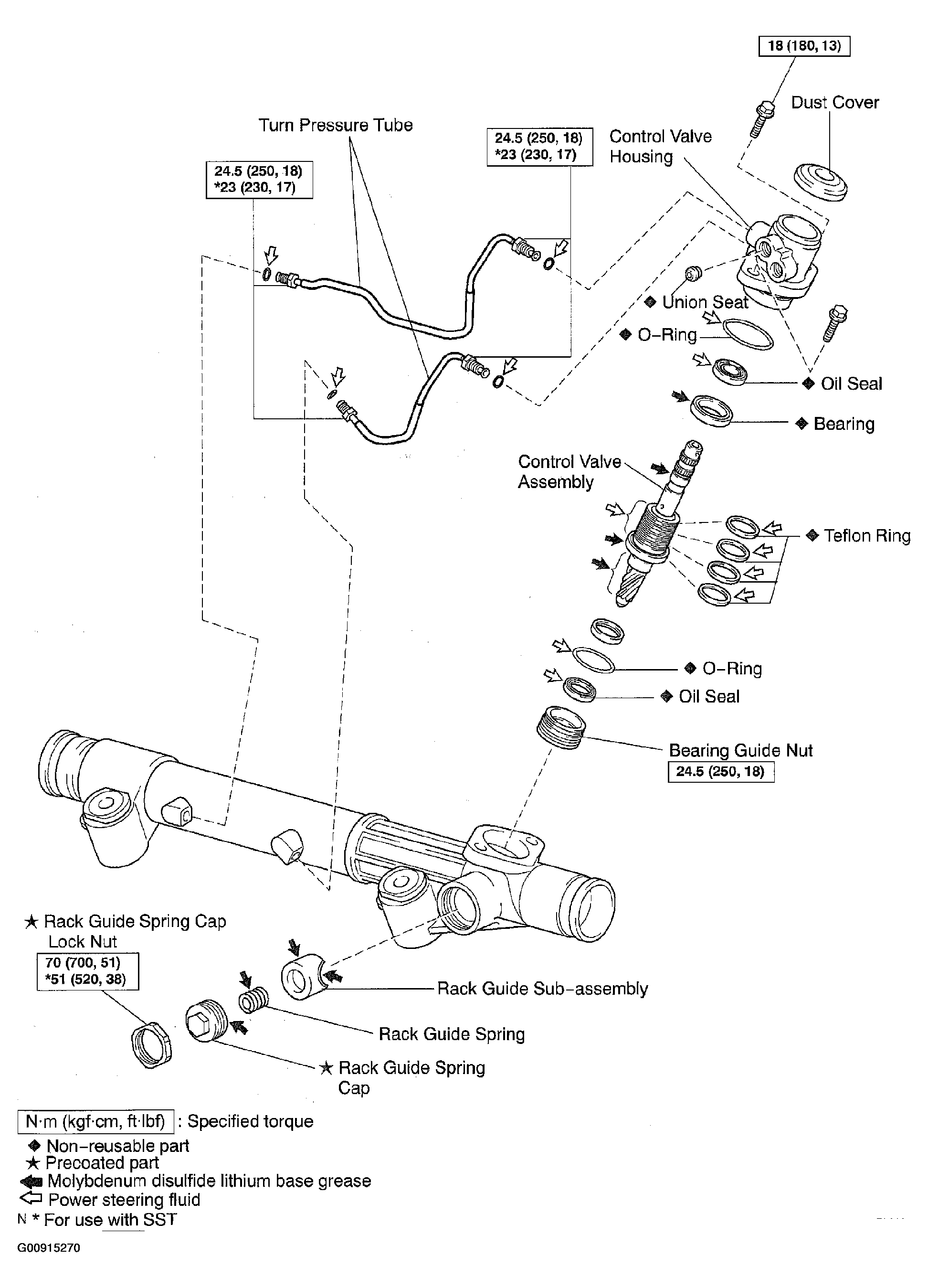

Fig 1: Identifying Power Steering Gear Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

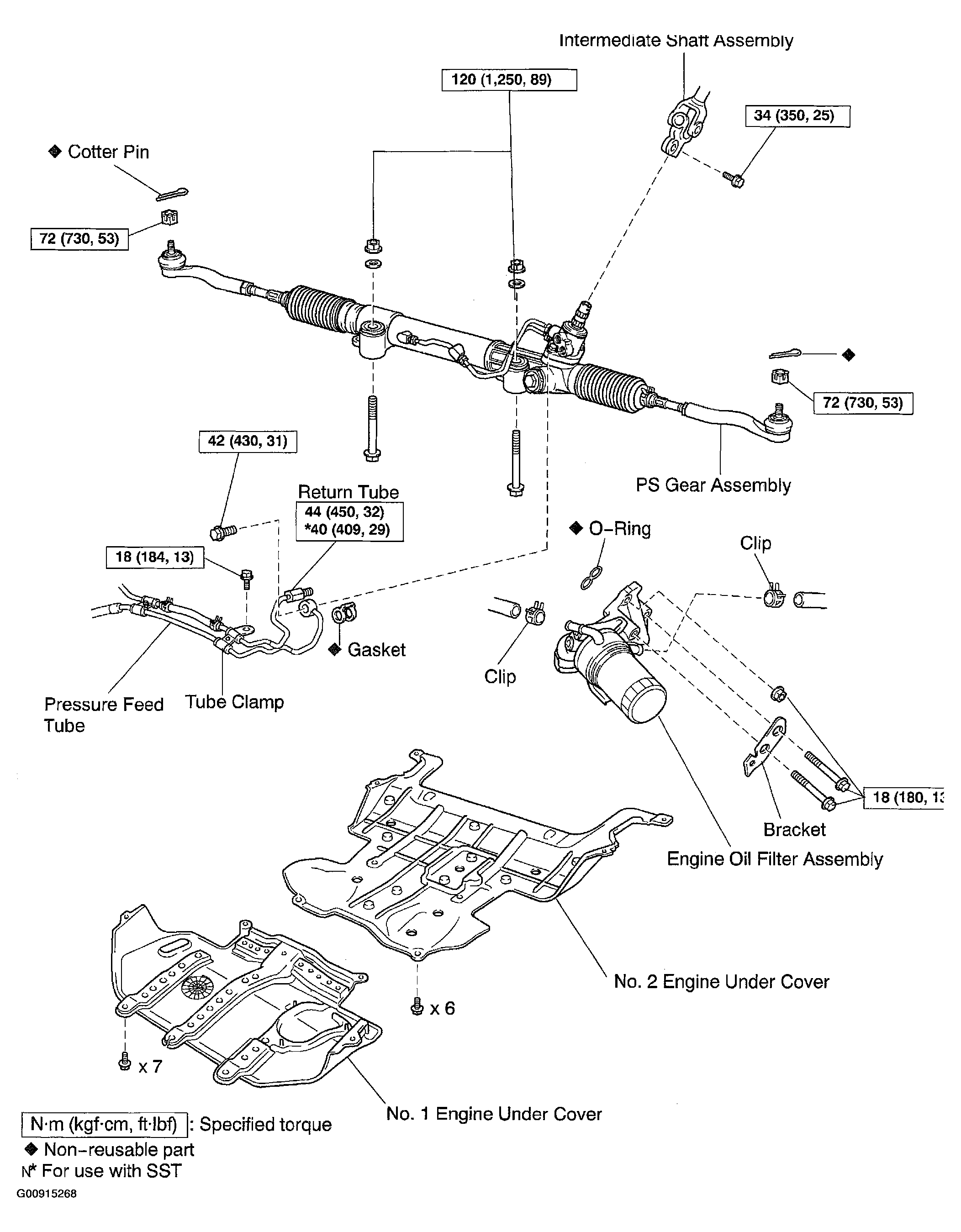

Fig 2: Identifying Power Steering Gear Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

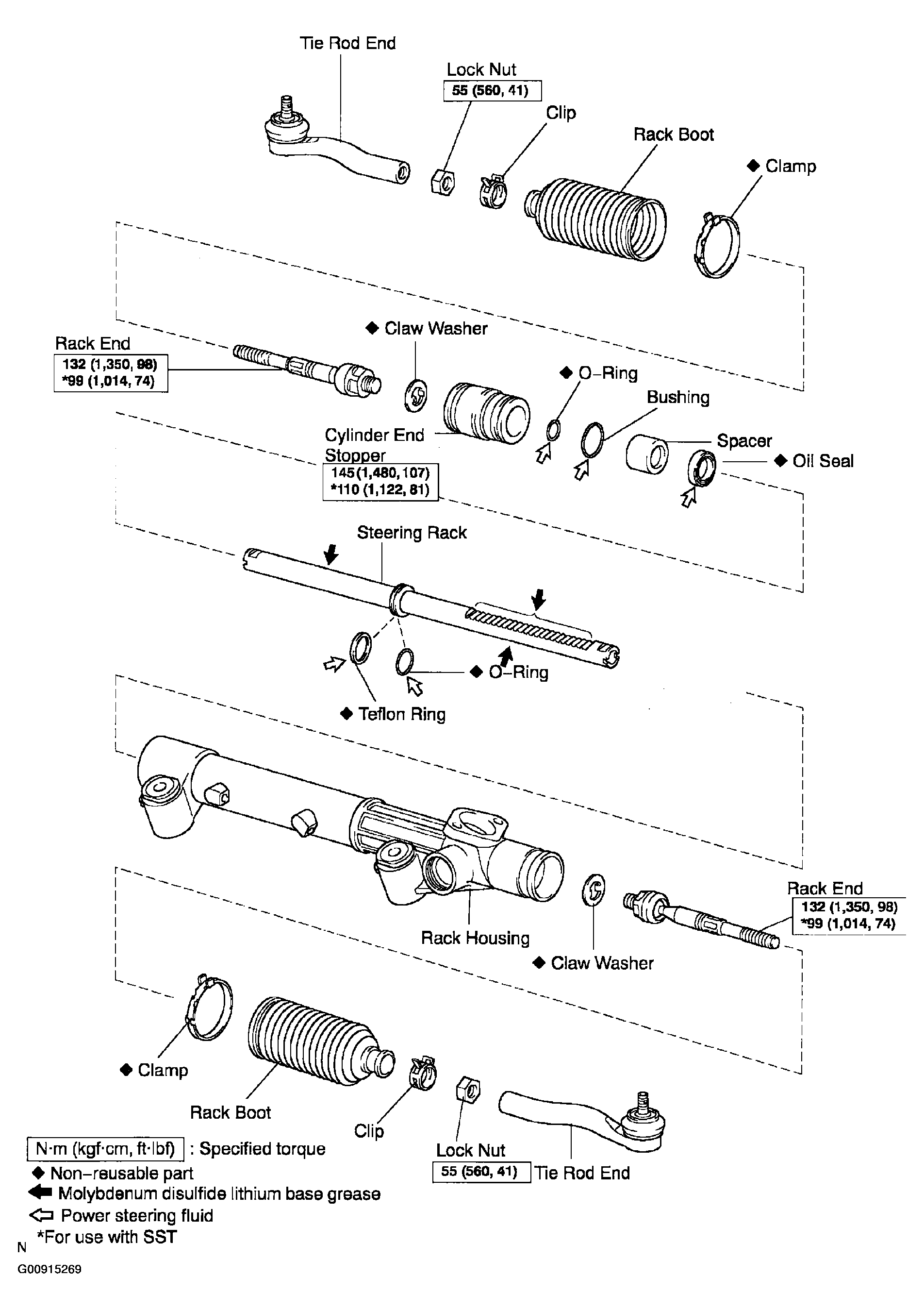

Fig 3: Identifying Power Steering Gear Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
