Compressor And Magnetic Clutch: Disassembly

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE PRESSURE PLATE
1. Using SST and a socket wrench, remove the shaft bolt.
  Torque: 13.2 N.m (135 kgf.cm, 9 ft.lbf)

  SST 07112-76060

  Fig 1: Remove Compressor Shaft Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

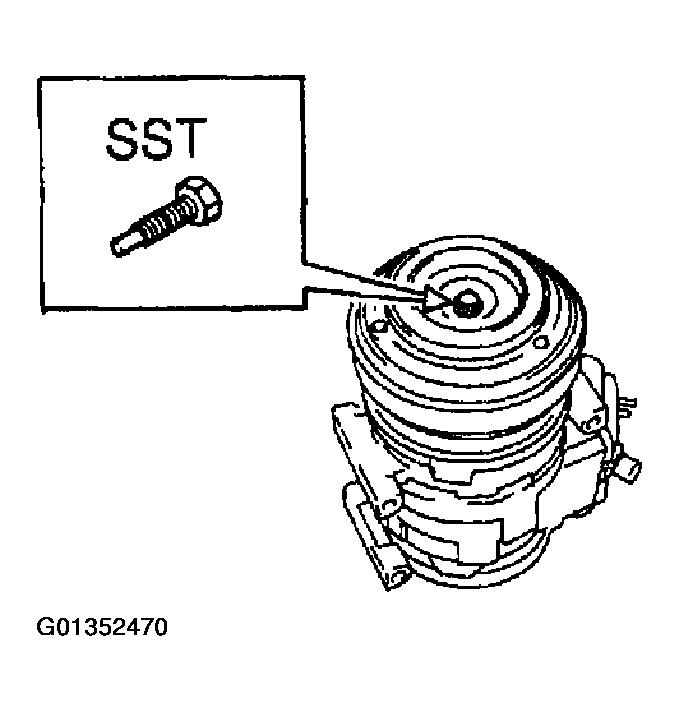

2. Install SST on the pressure plate.
  SST 07112-66040

  Fig 2: Installing SST On Pressure Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

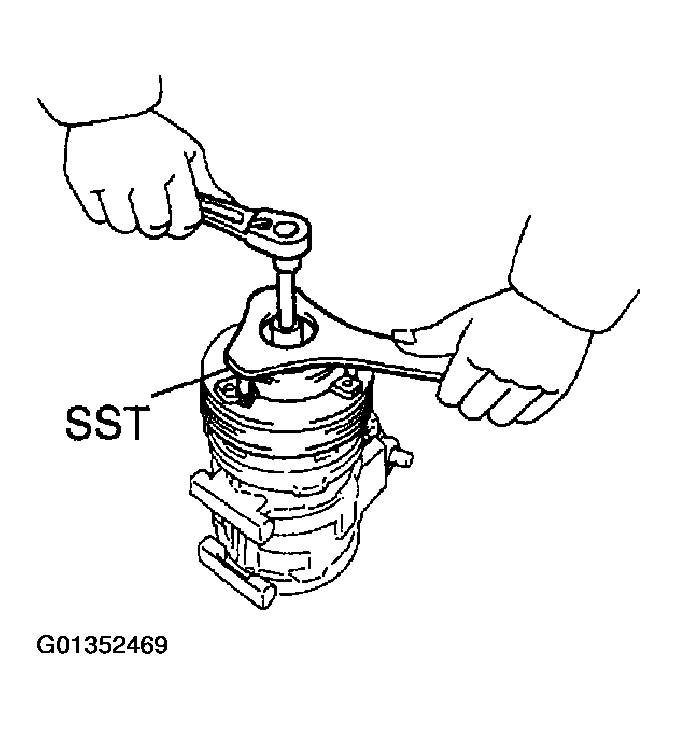

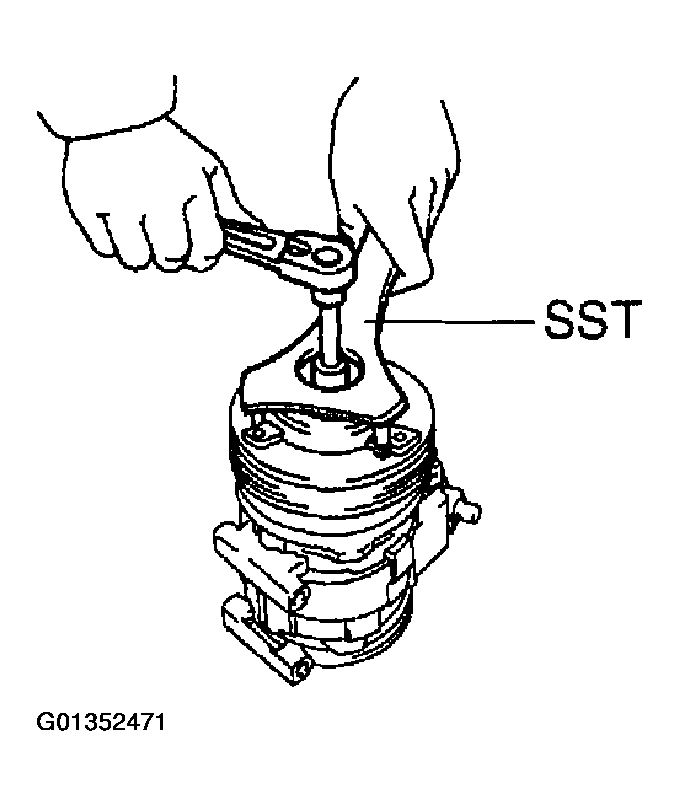

3. Using SST and socket wrench, remove the pressure plate.
  SST 07112-66040, 07112-76060

  Fig 3: Removing Pressure Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

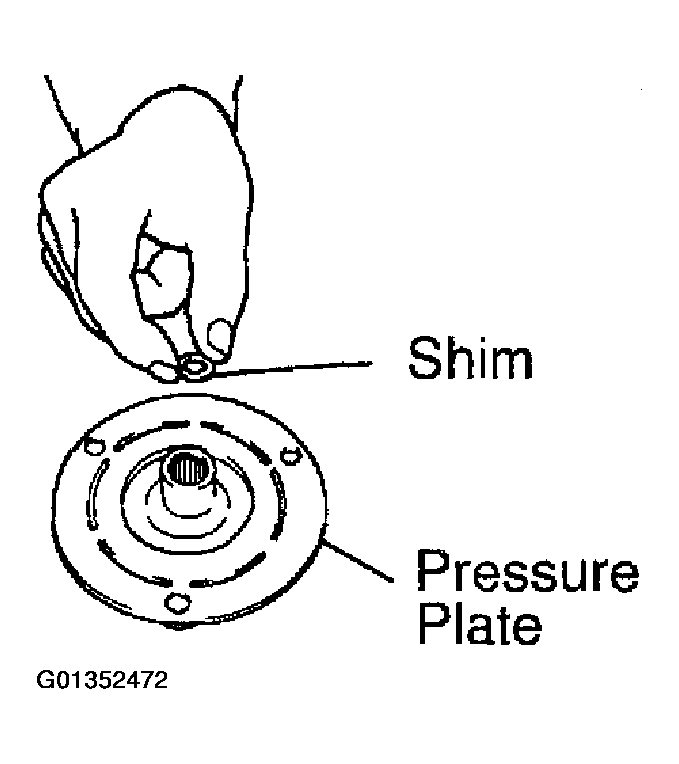

4. Remove the shims from the pressure plate.

  Fig 4: Removing Shims From Pressure Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROTOR

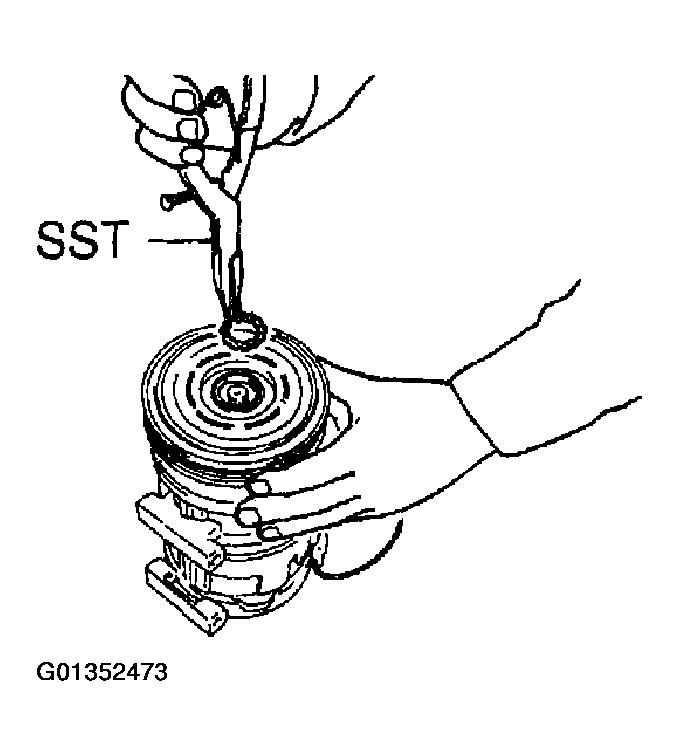

1. Using SST, remove the snap ring.
  SST 95994-10020

  Fig 5: Remove Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

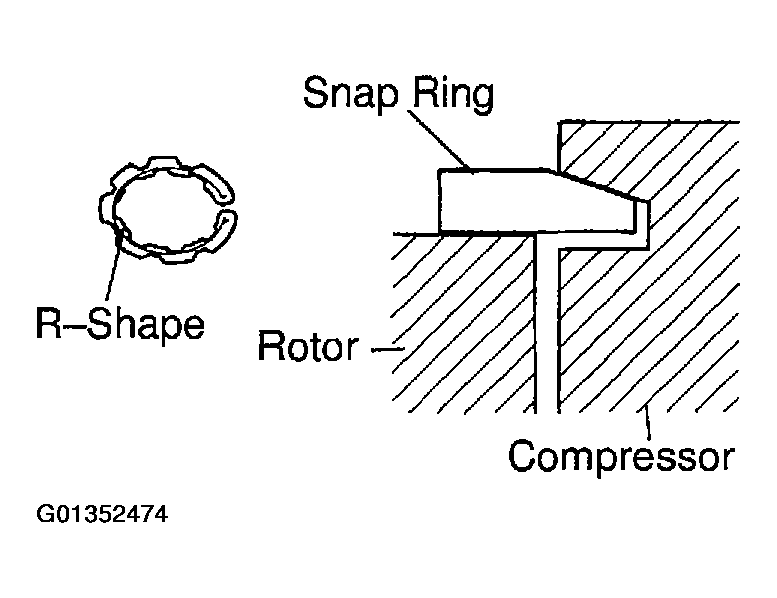

  NOTE: At the time of reassembly, the snap ring should be installed so that beveled side facing up.

  Fig 6: Installing Snap Ring Beveled Side Facing Up
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

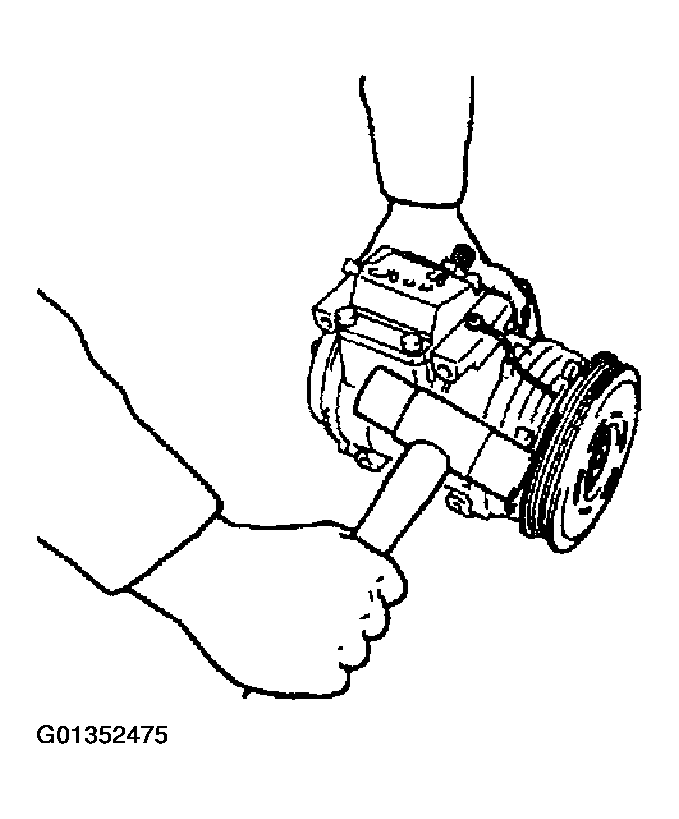

2. Using a plastic hammer, tap the rotor off the shaft.
  NOTE: Be careful not to damage the pulley when tapping on the rotor.

  Fig 7: Tapping Rotor Off The Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STATOR

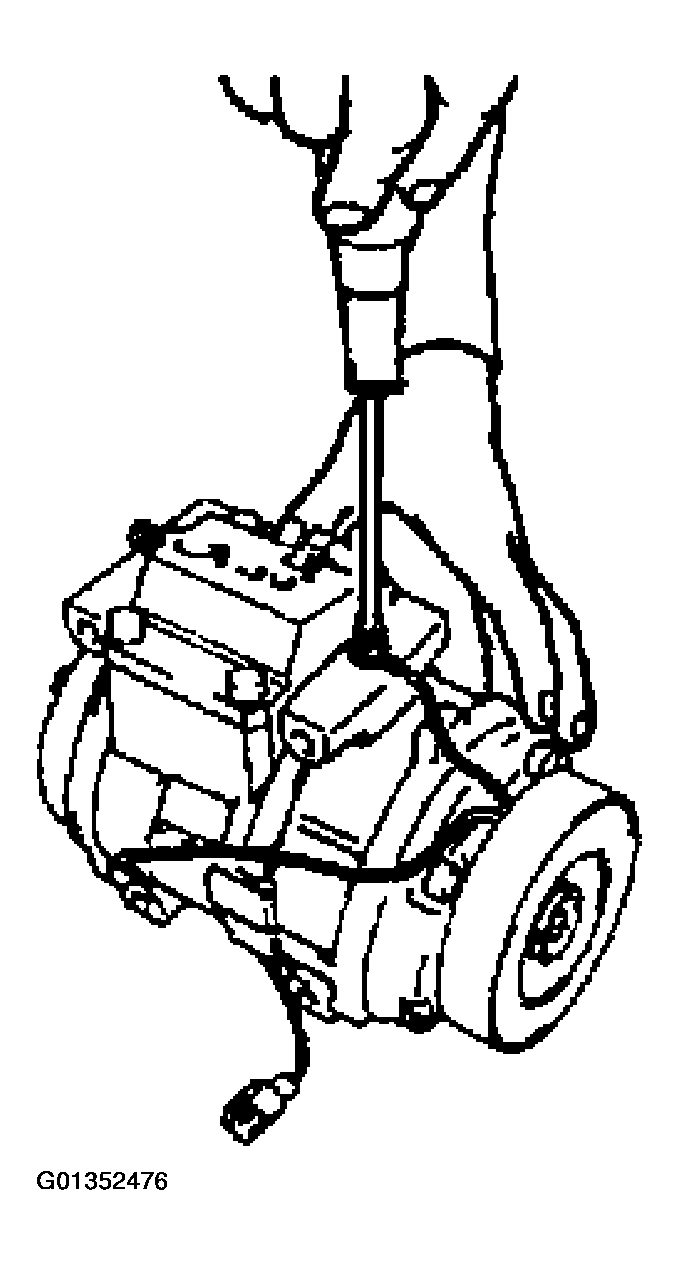

1. Disconnect the stator lead wire from the compressor housing.

  Fig 8: Removing Stator Lead Wire From Compressor Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

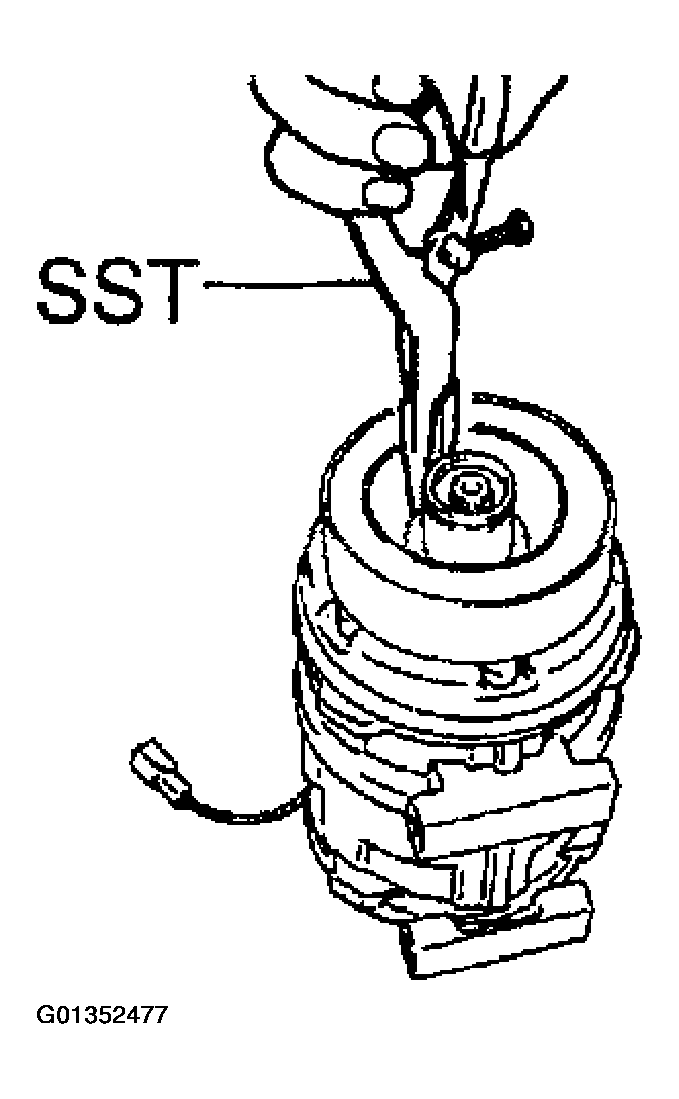

2. Using SST, remove the snap ring.
  SST 95994-10020

  Fig 9: Removing Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

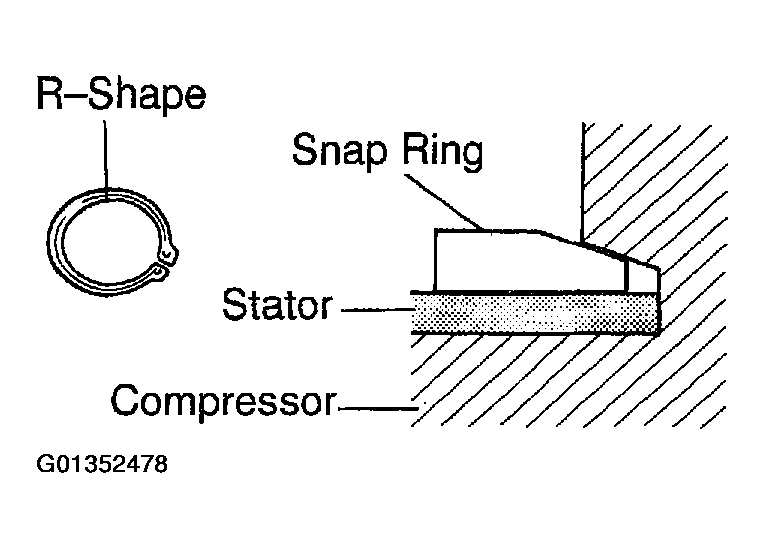

  NOTE: At the time of reassembly, the snap ring should be installed so that its beveled side facing up.

  Fig 10: Installing Snap Ring Beveled Side Facing Up
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. .

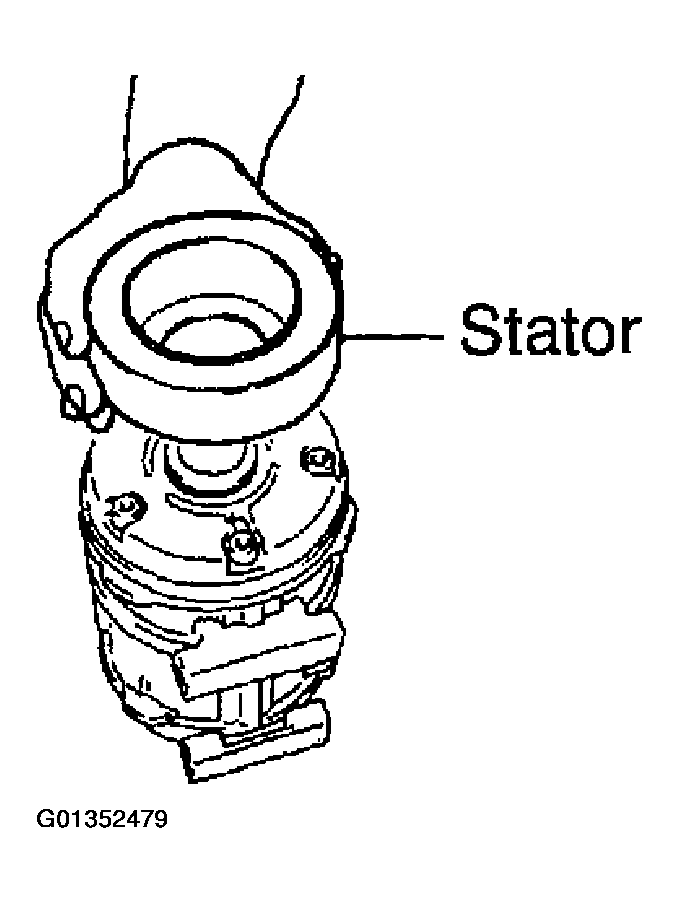

  Fig 11: Removing Stator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
