Damping Force Control Actuator: Components

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

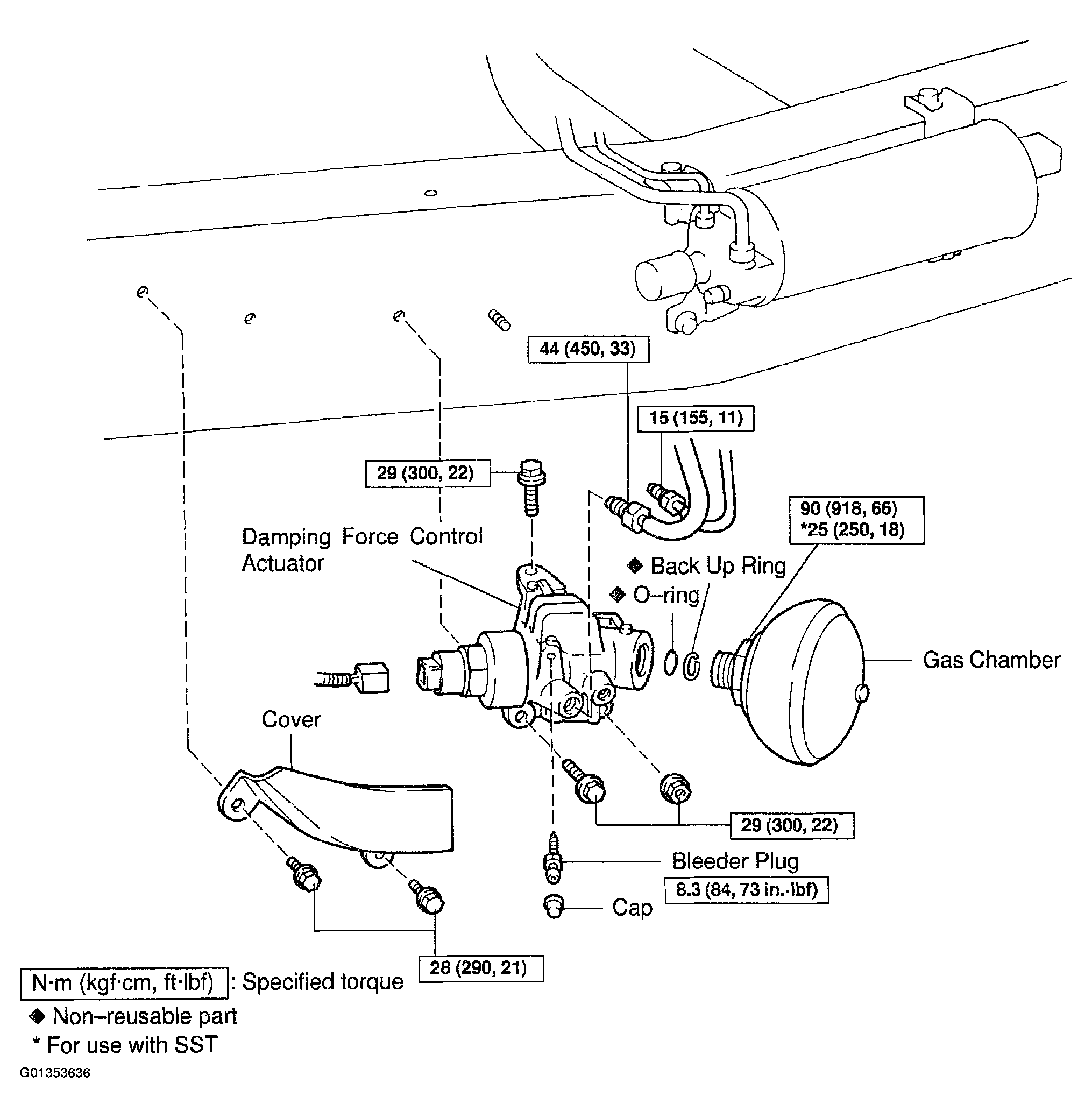

Fig 1: Identifying Damping Force Control Actuator Components
G01353636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
