Home >> Lexus >> 2002 >> LS 430 >> Repair and Diagnosis >> Body & Frame >> Sun Roof/T-Top/Convertible Top >> Sliding Roof >> Components

Sliding Roof: Components

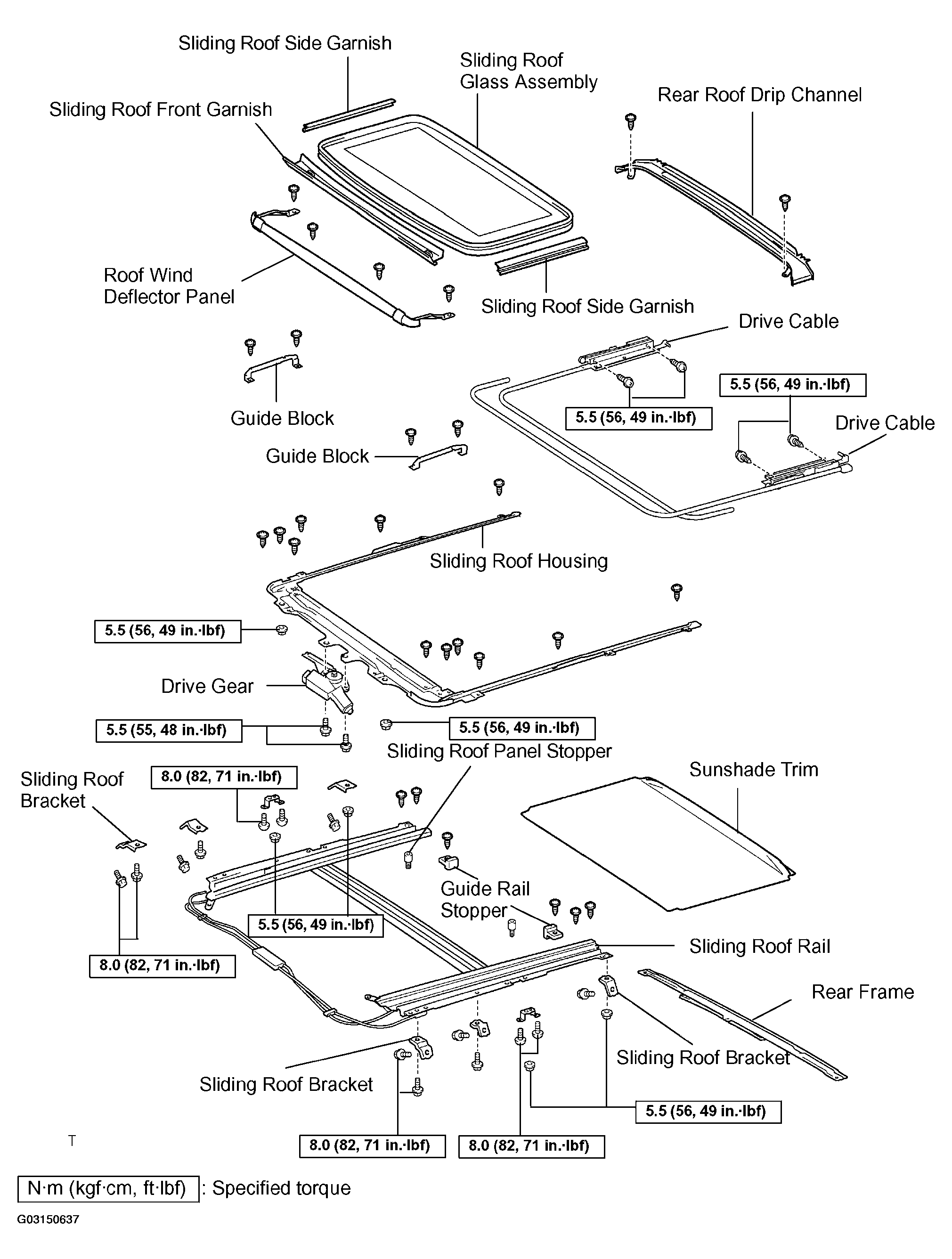

Fig 1: Exploded View Of Sliding Roof Components

G03150637

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
