Rear Seat (Fixed Type): Components

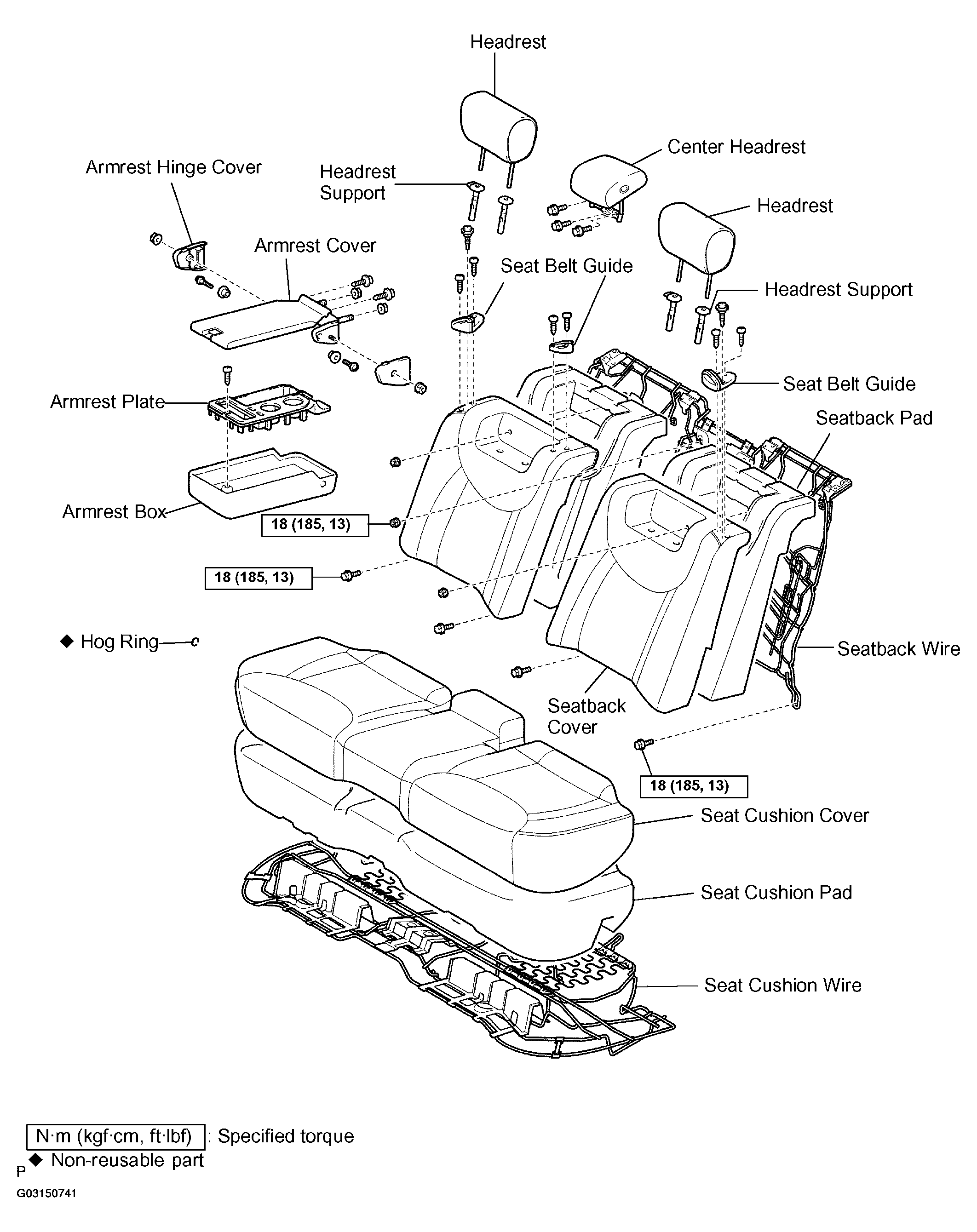

Fig 1: Identifying Rear Seat (Fixed Type) Components

G03150741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
