Slide Position Sensor Circuit: Wiring Diagram

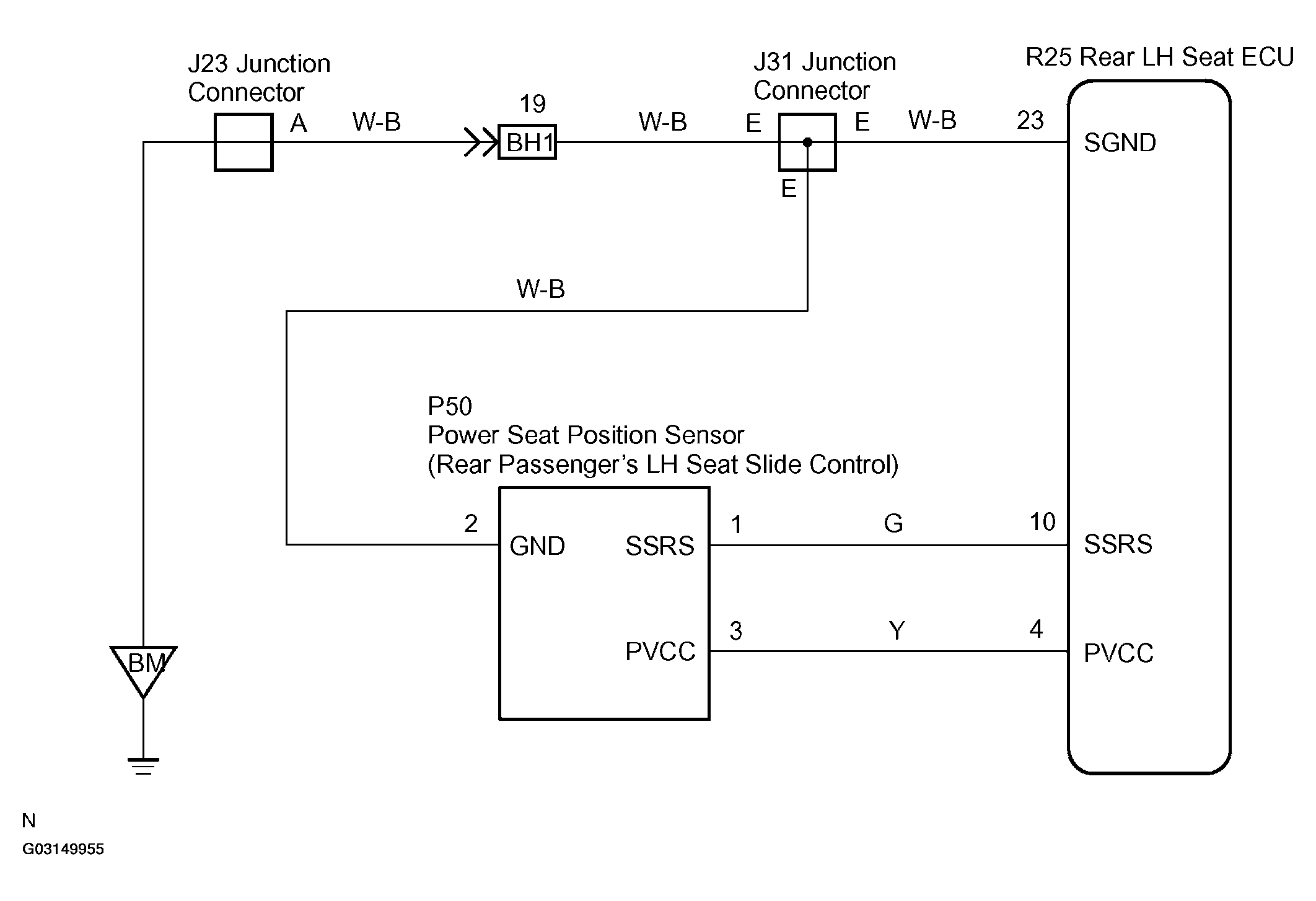

Fig 1: Rear Left Power Seat Slide Position Sensor Circuit Schematic

G03149955

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
