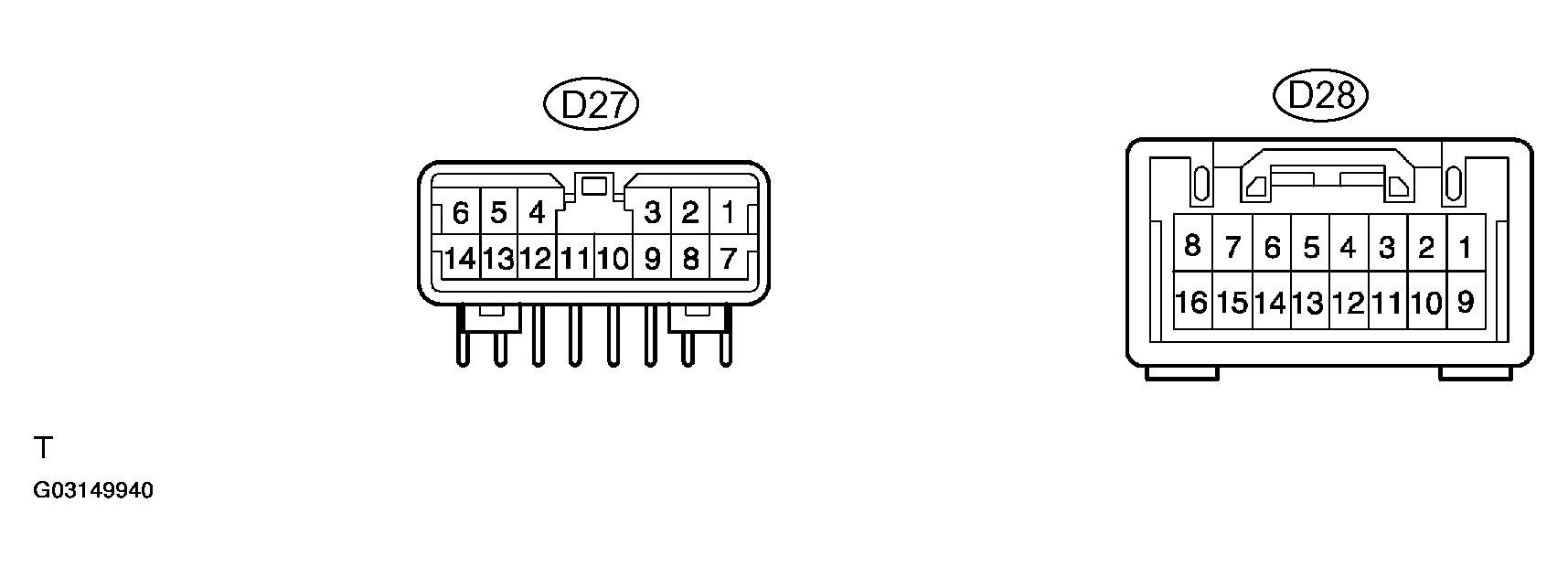

| D27-1 - D27-6 (SLD- - GND) |
R-B - W-B |
Seat moved rearward using slide switch |
10 - 14 V |
| Others |
Below 1 V |
| D27-2 - D27-6 (FRV- - GND) |
L - W-B |
Seat lowered using front vertical switch |
10 - 14 V |
| Others |
Below 1 V |
| D27-3 - D27-6 (H- - GND) |
R-L - W-B |
Headrest moved downward using headrest switch |
10 - 14 V |
| Others |
Below 1 V |
| D27-4 - D27-6 (RRV- - GND) |
W-W-B |
Seat lowered using lifter switch |
10 - 14 V |
| others |
Below 1 |
| D27-5 - D27-6 (FRV+ - GND) |
R - W-B |
Seat raised using front vertical switch |
10 - 14 V |
| Others |
Below 1 V |
| D27-6 - Body ground (GND - Body ground) |
W-B - Body ground |
Constant |
Below 1 V |
| D27-7 - D27-6 (C+ - GND) |
B-W - W-B |
Seat cushion moved upward using headrest switch |
10 - 14 V |
| Others |
Below 1 V |
| D27-8 - D27-6 (SLD+ - GND) |
B - W-B |
Seat moved forward using slide switch |
10 - 14 V |
| Others |
Below 1 V |
| D27-9 - D27-6 (RRV+ - GND) |
B-R - W-B |
Seat raised using lifter switch |
10 - 14 V |
| Others |
Below 1 V |
| D27-10 - D27-6 (RCL- - GND) |
L-R - W-B |
Seat moved rearward using reclining switch |
10 - 14 V |
| Others |
Below 1 V |
| D27-11 - D27-6 (C- - GND) |
Y - W-B |
Seat cushion moved downward using headrest switch |
10 - 14 V |
| Others |
Below 1 V |
| D27-12 - D27-6 (H+ - GND) |
B-W - W-B |
Headrest moved upward using headrest switch |
10 - 14 V |
| Others |
Below 1 V |
| D27-13 - D27-6 (RCL+ - GND) |
L - W-B |
Seat moved forward using reclining switch |
10 - 14 V |
| Others |
Below 1 V |
| D27-14 - D27-6 (+B - GND) |
B-R - W-B |
Constant |
10 - 14 V |
| D28-1 - Body ground (SGND - Body ground) |
BR - Body ground |
Constant |
Below 1 V |
| D28-4 - D28-1 (CSNR - SGND) |
Y-B - BR |
Seat cushion switch REAR |
Below 1 V |
| Seat cushion switch FRONT |
10 - 14 V |
| D28-5 - D28-1 (SSRS - SGND) |
LG - BR |
Slide operation |
0 - 8 V |
| D28-6 - D28-1 (SSRV - SGND) |
LG-B - BR |
Lifter operation |
0 - 8 V |
| D28-7 - D28-1 (SSRH - SGND) |
O - BR |
Headrest operation |
0 - 8 V |
| D28-8 (IDL) |
W |
Climate control seat ECU communication circuit |
- |
| D28-9 - D28-1 (SYSB - SGND) |
V-Y - BR |
Constant |
10 - 14 V |
| D28-10 - D28-1 (IG - SGND) |
R-L - BR |
Ignition switch ON |
10 - 14 V |
| D28-11 (MPX1) |
P-L |
Multiplex communication circuit |
- |
| D28-12 - D28-1 (CSNF - SGND) |
Y - BR |
Seat cushion switch FRONT |
Below 1 V |
| Seat cushion switch REAR |
10 - 14 V |
| D28-13 - D28-1 (SSRR - SGND) |
GR - BR |
Reclining operation |
0 - 8 V |
| D28-14 - D28-1 (SSFV - SGND) |
LG-R - BR |
Front vertical operation |
0 - 8 V |
| D28-15 - D28-1 (SSRC - SGND) |
GR-R - BR |
Seat cushion operation |
0 - 8 V |
| D28-16 - D28-1 (PVCC - SGND) |
V-W - BR |
Power seat operation |
8 V |
