Rear Door: Components

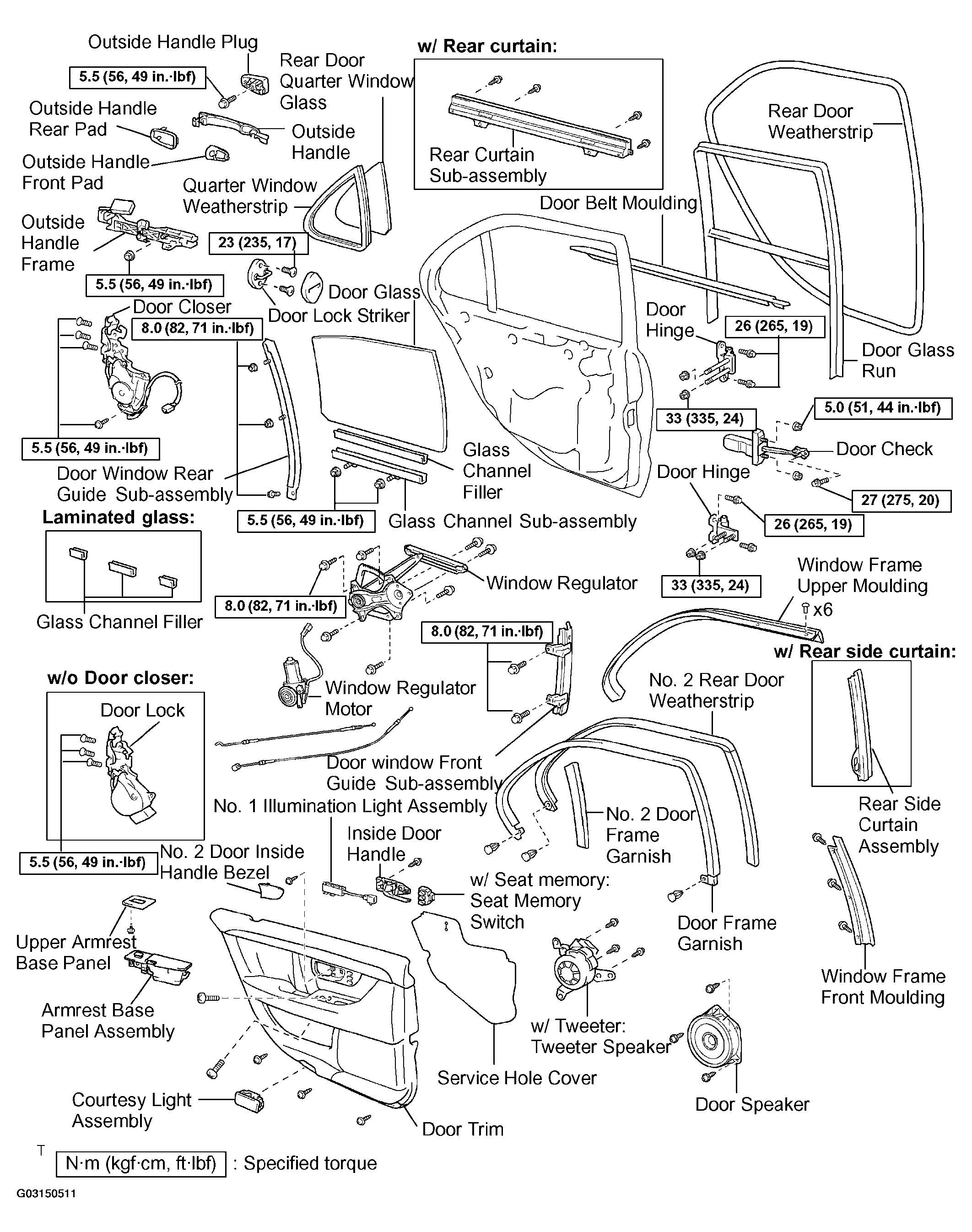

Fig 1: Exploded View Of Rear Door Components

G03150511

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
