Rear Bumper: Components

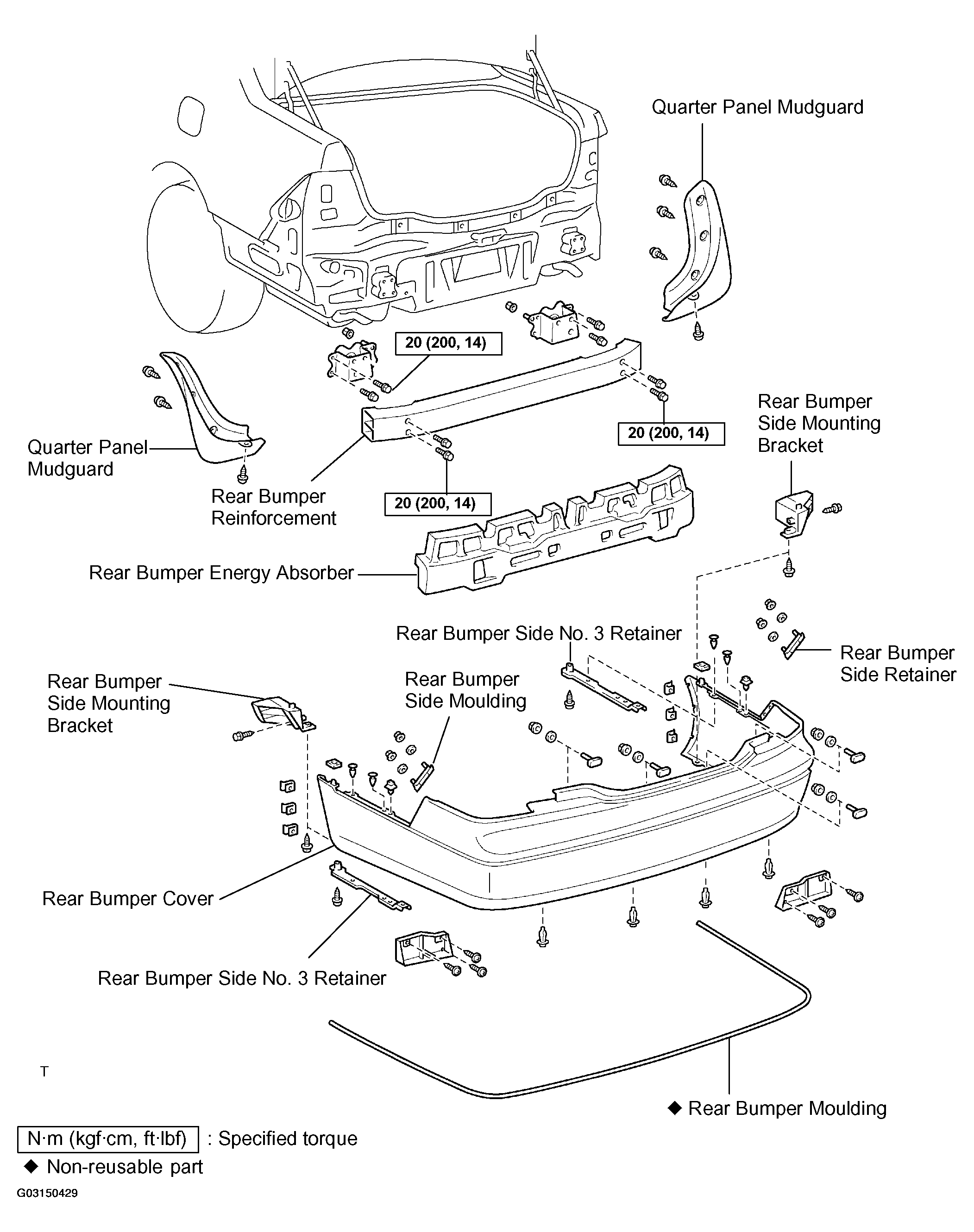

Fig 1: Identifying Rear Bumper Components (1 Of 2)
G03150429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

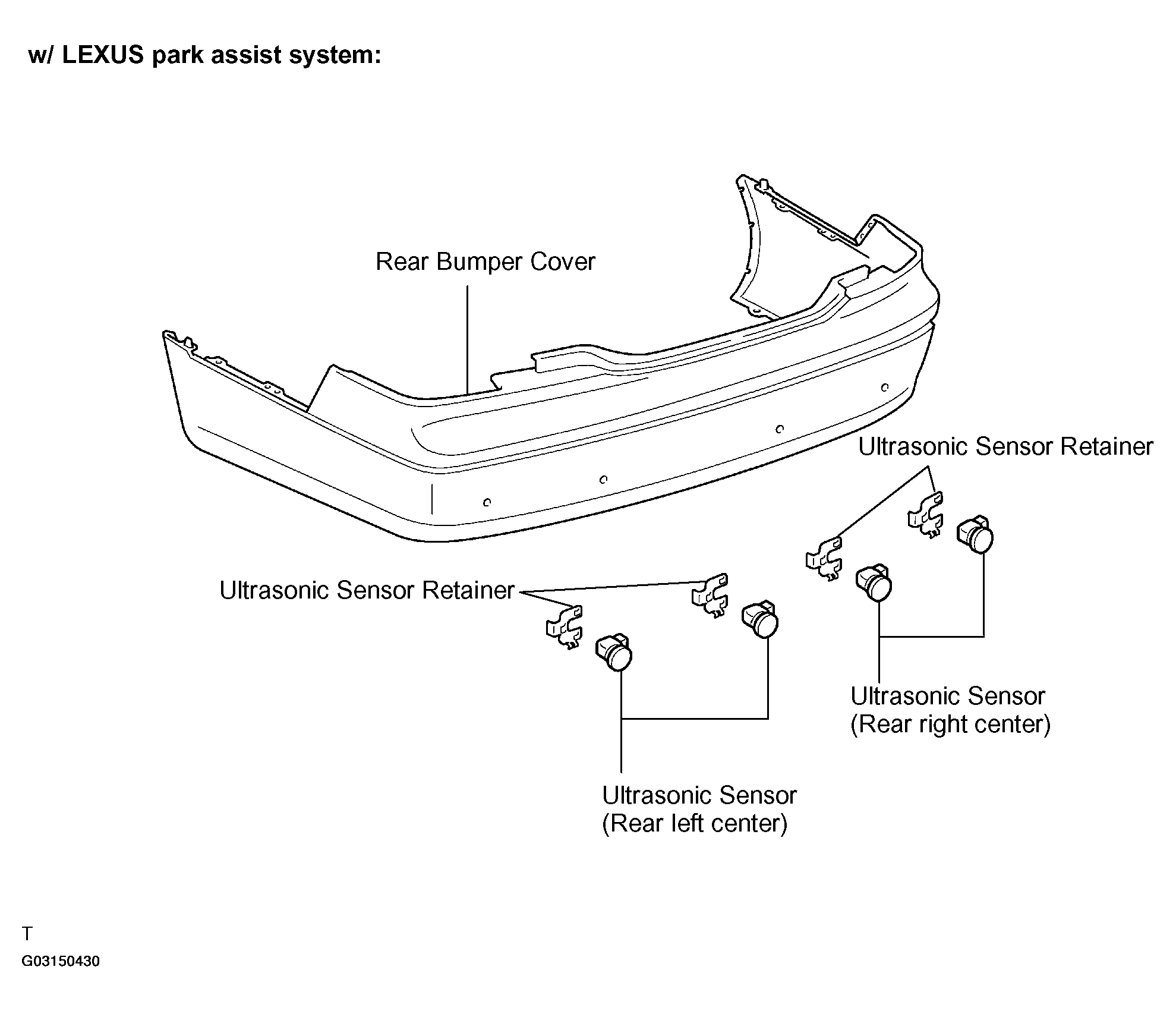

Fig 2: Identifying Rear Bumper Components (2 Of 2)
G03150430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
