Remove Multi Display

  1. Remove the 4 screws and multi display.

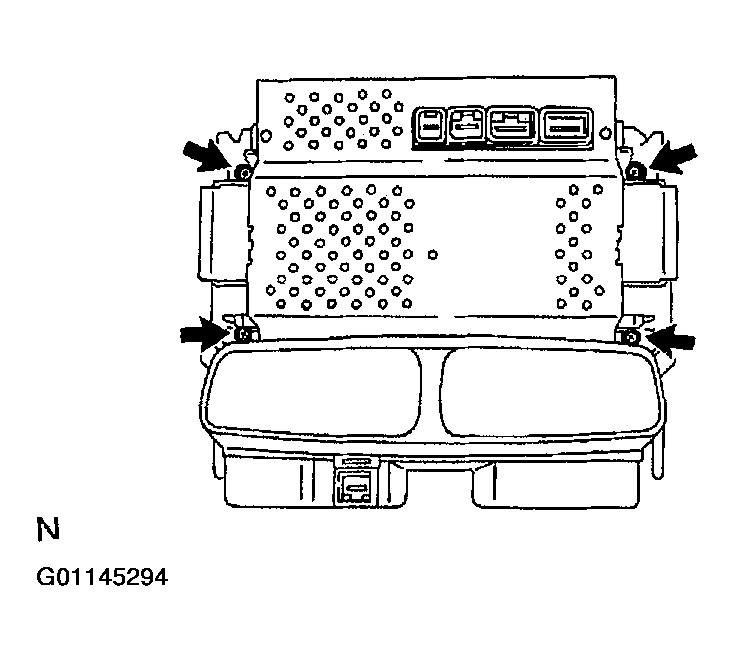

    Fig 1: Locating Screws & Multi Display For Removal
    G01145294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove the 8 bolts and 2 brackets.

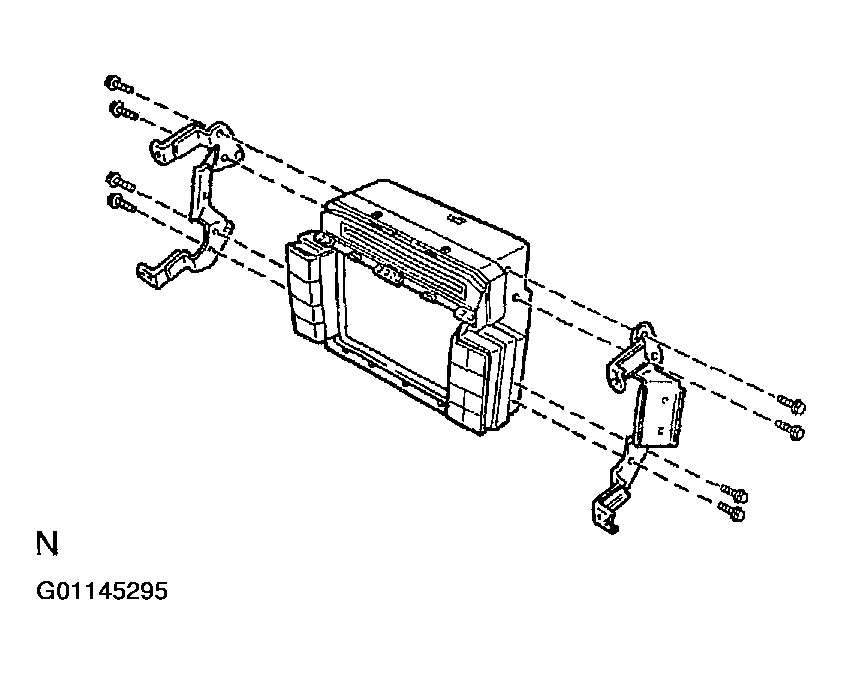

    Fig 2: Locating Bolts & Brackets For Removal
    G01145295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
