Circuit Description

For circuit description, see Fig 1.

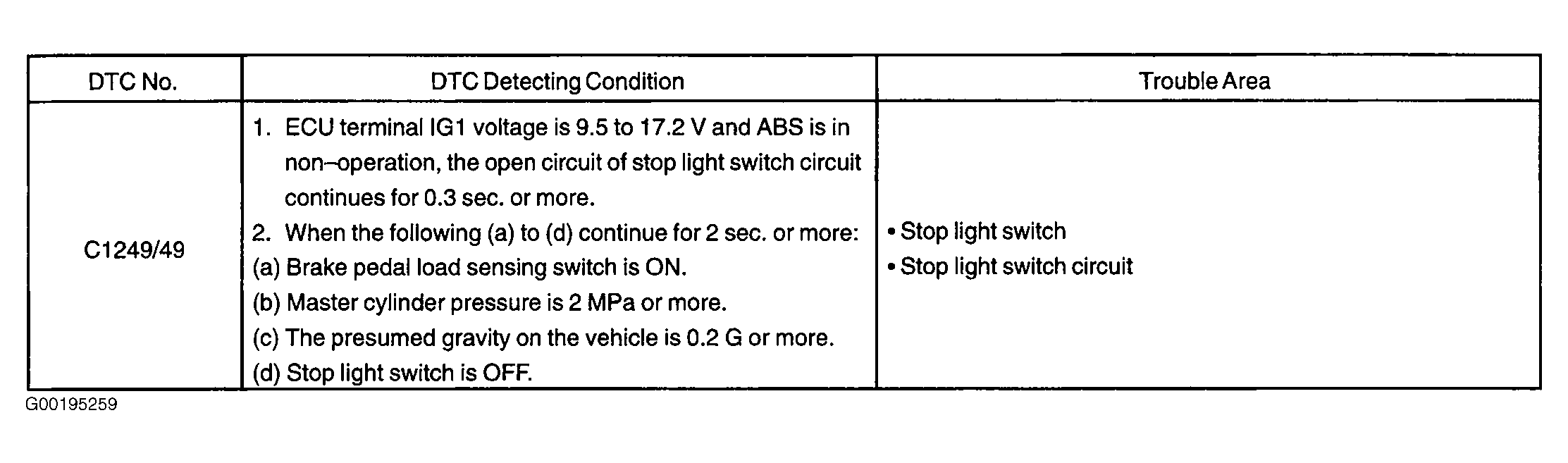

Fig 1: Circuit Description Stop Light Switch
G00195259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
