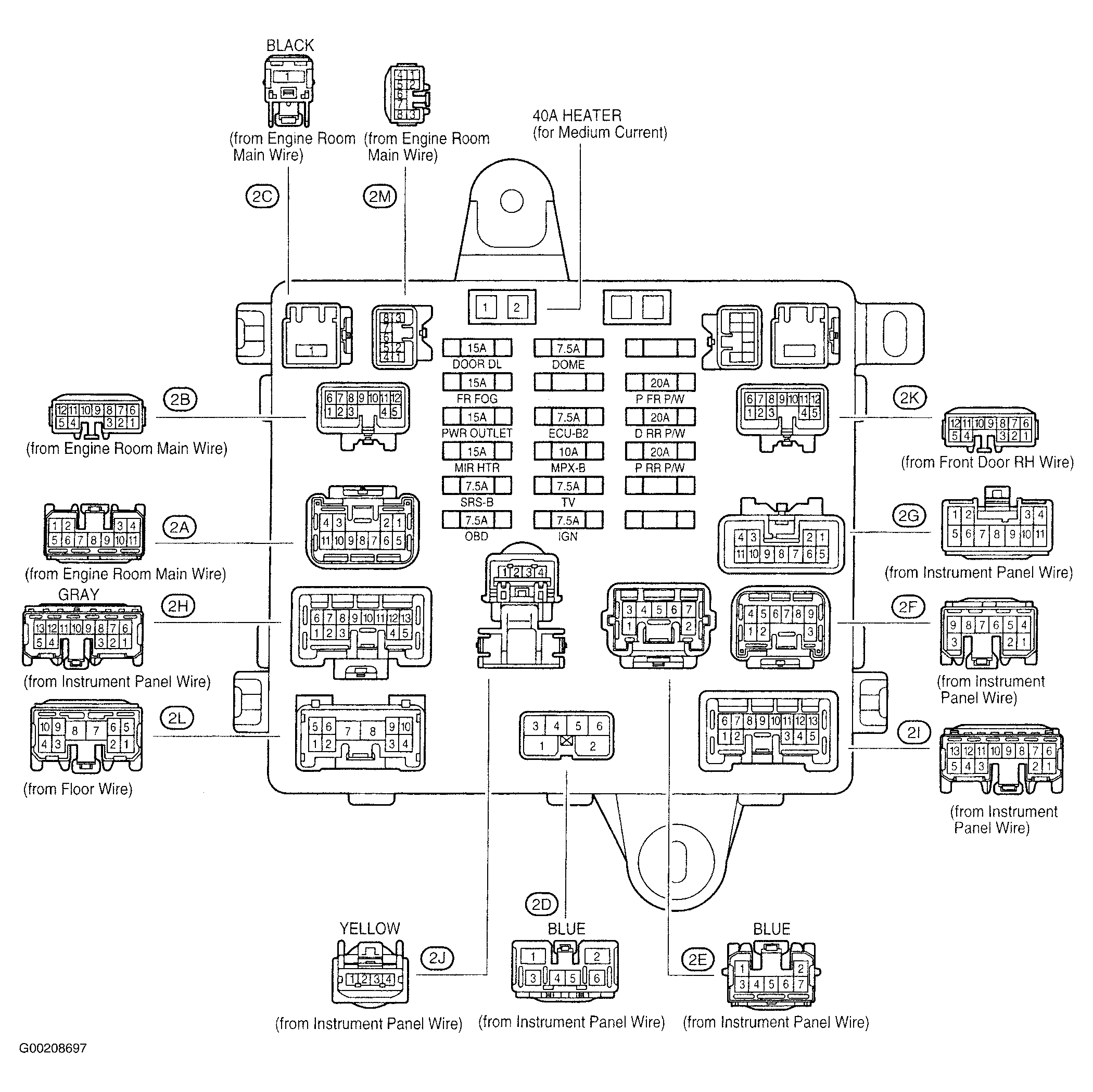

Passenger Side Junction Block
PASSENGER SIDE JUNCTION BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | DOME | Door Lock Control and Wireless Door Lock Control Garage Door Opener Interior Light Light Auto Turn Off Multiplex Communication System Theft Deterrent |
| 7.5A | ECU-B2 | Automatic Light Control Headlight Light Auto Turn Off Rear Fog Light Theft Deterrent VSC |
| 7.5A | IGN | Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control Engine Immobiliser System SRS |
| 7.5A | OBD | Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control |
| 7.5A | SRS-B | Combination Meter Interior Light Multiplex Communication System SRS |
| 7.5A | TV | LEXUS Navigation System |
| 10A | MPX-B | Automatic Air Conditioning Back Door Opener Charging Clock Combination Meter Cruise Control Door Lock Control and Wireless Door Lock Control Electronically Controlled Transmission and A/T Indicator Engine Control Headlight Interior Light Key Reminder and Seat Belt Warning Light Auto Turn Off Multiplex Communication System Power Window Theft Deterrent |
| 15A | DOOR DL | Theft Deterrent |
| 15A | FR FOG | Front Fog Light |
| 15A | MIR HTR | Rear Window Defogger and Mirror Heater |
| 15A | PWR OUTLET | Cigarette Lighter and Power Outlet |
| 20A | D RR P/W | Multiplex Communication System Power Window |
| 20A | P FR P/W | Multiplex Communication System Power Window |
| 20A | P RR P/W | Multiplex Communication System Power Window |
| 40A | HEATER | Automatic Air Conditioning |
