Wheel Speed Sensor (Front): Removal

  1. Remove front wheel, engine under cover and fender liner.
  2. Disconnect speed sensor harness connector. See Fig 1.
  3. Disconnect harness clamp.
  4. Remove resin clip and 2 clamp bolts holding sensor harness to body.
  5. Remove bolt and speed sensor from steering knuckle. See Fig 2.
Fig 1: Locating Speed Sensor Connector
G00195285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

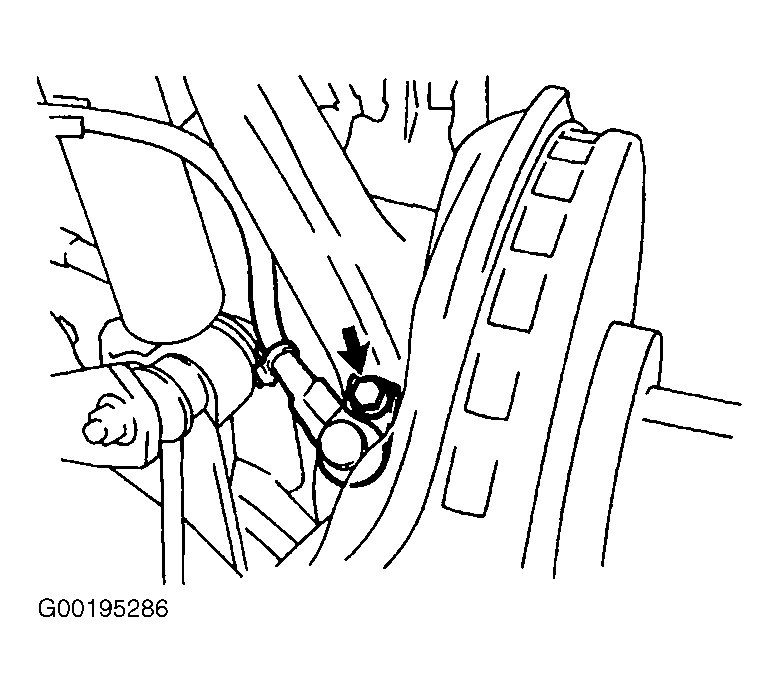

Fig 2: Removing Speed Sensor
G00195286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
