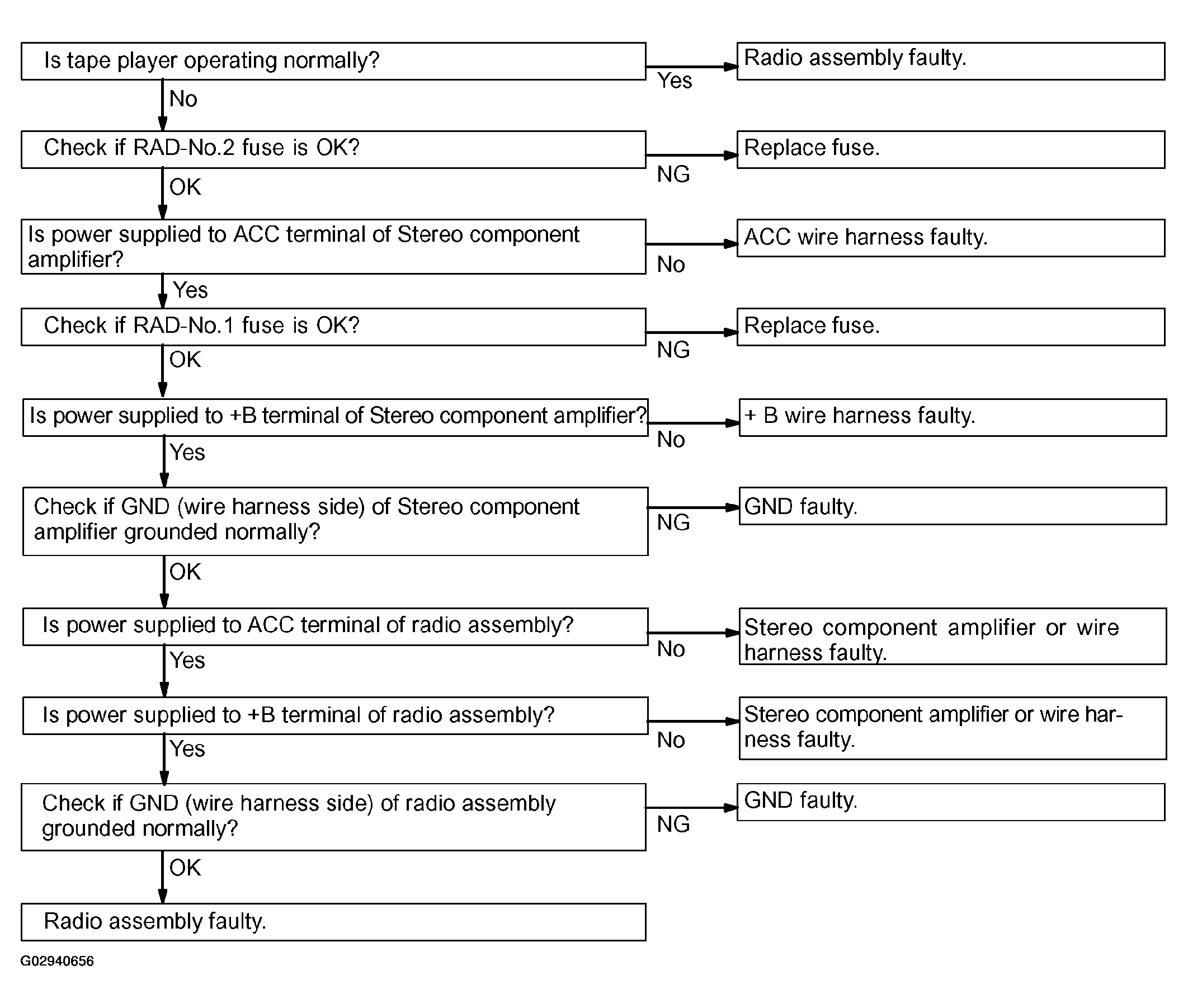

Diagnostic Procedures

RADIO

1. RADIO NOT OPERATING WHEN POWER SWITCH TURNED TO "ON"

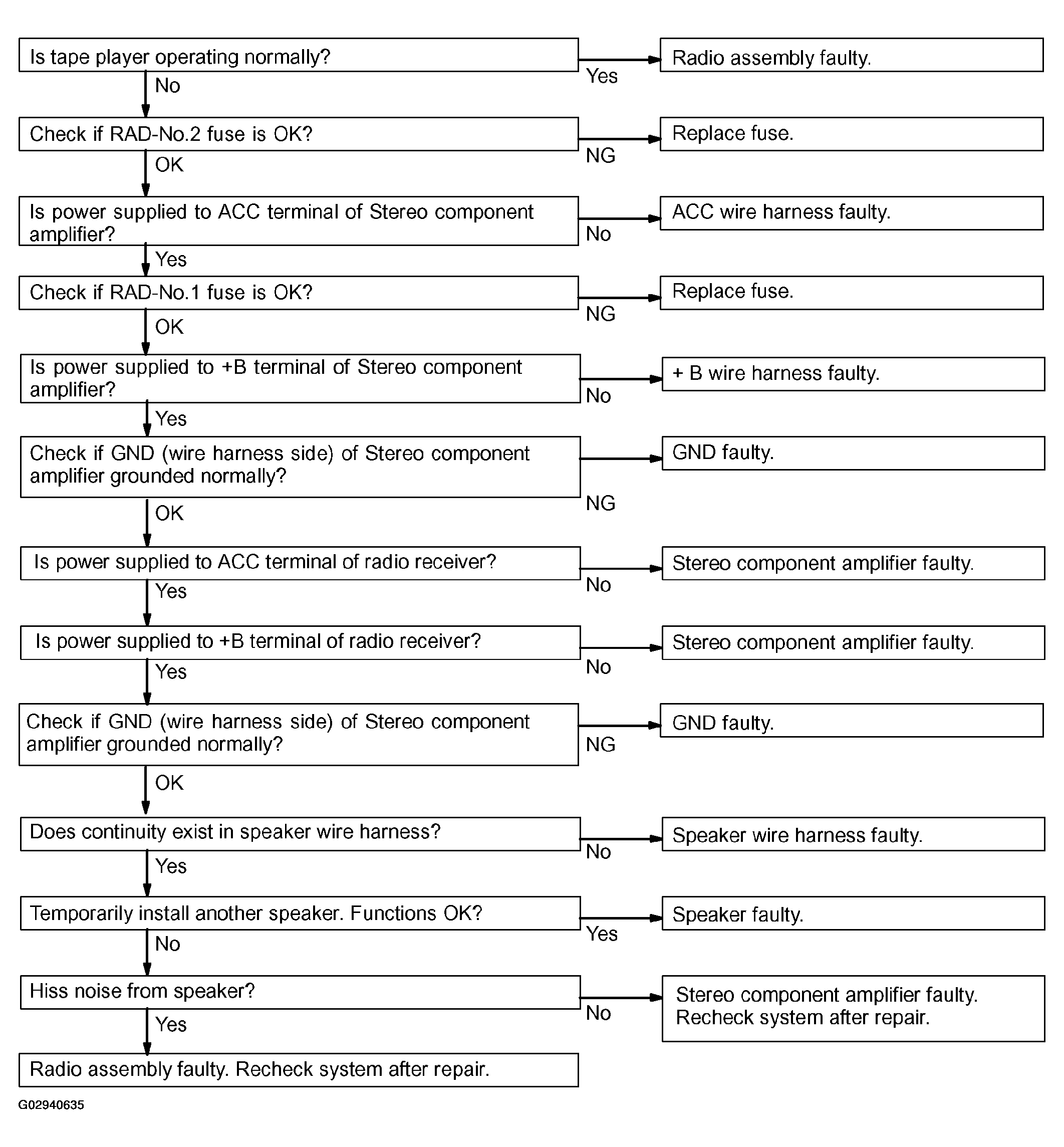

   Fig 1: Trouble Shooting Flow Chart - Radio Not Operating When Power Switch Turned To "ON"

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. DISPLAY INDICATES WHEN POWER SWITCH TURNED TO "ON", BUT NO SOUND (INCLUDING "NOISE") IS PRODUCED
   Fig 2: Trouble Shooting Flow Chart - Radio - Display Indicates When Power Switch Turned To "ON", But No Sound Produced

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. NOISE PRESENT, BUT AM-FM NOT OPERATING

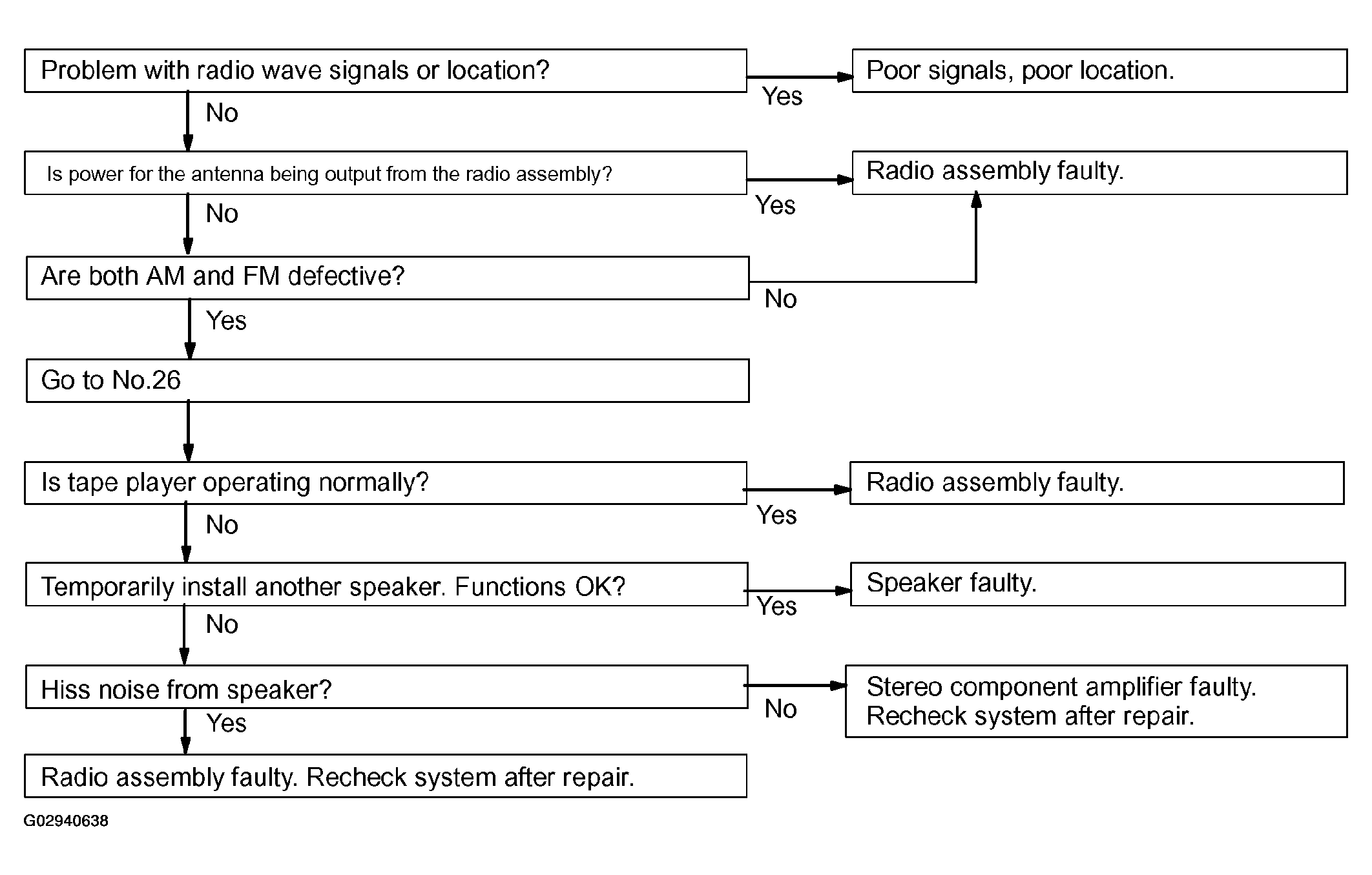

   Fig 3: Trouble Shooting Flow Chart - Radio - Noise Present, But AM-FM Not Operating

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

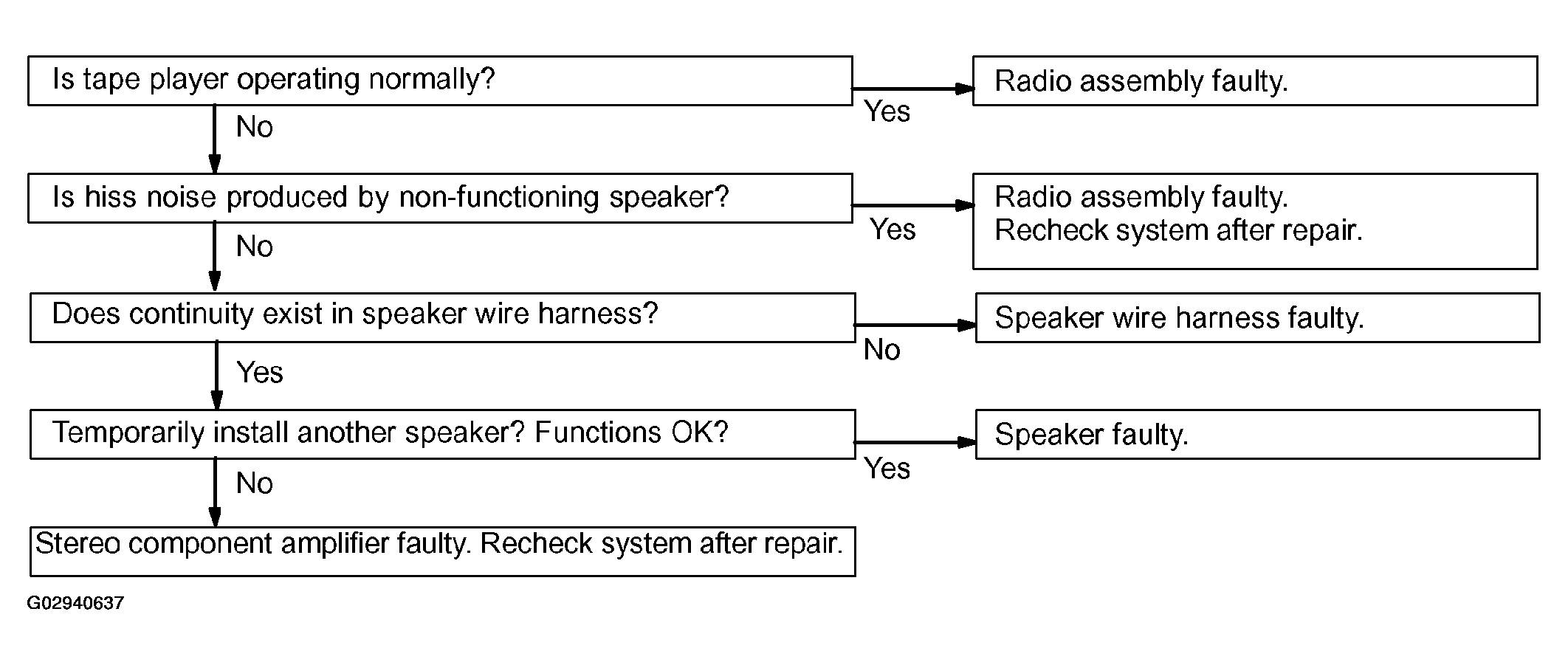

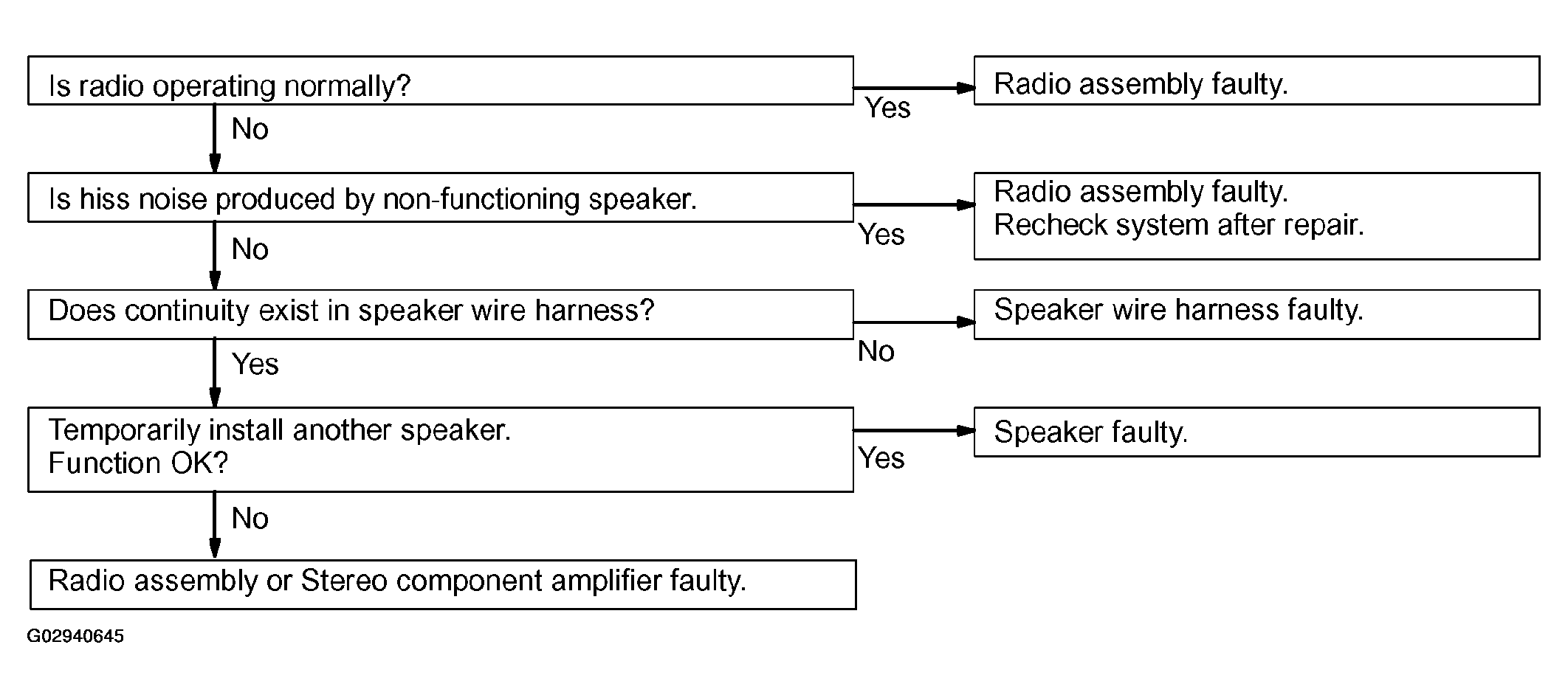

4. ANY SPEAKER DOES NOT WORK
   Fig 4: Trouble Shooting Flow Chart - Radio - Any Speaker Does Not Work

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. ANY AM OR FM DOES NOR WORK FEW PRESET TUNING BANDS
   Fig 5: Trouble Shooting Flow Chart - Radio - Any AM Or FM Does Not Work Few Present Tuning Bands

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

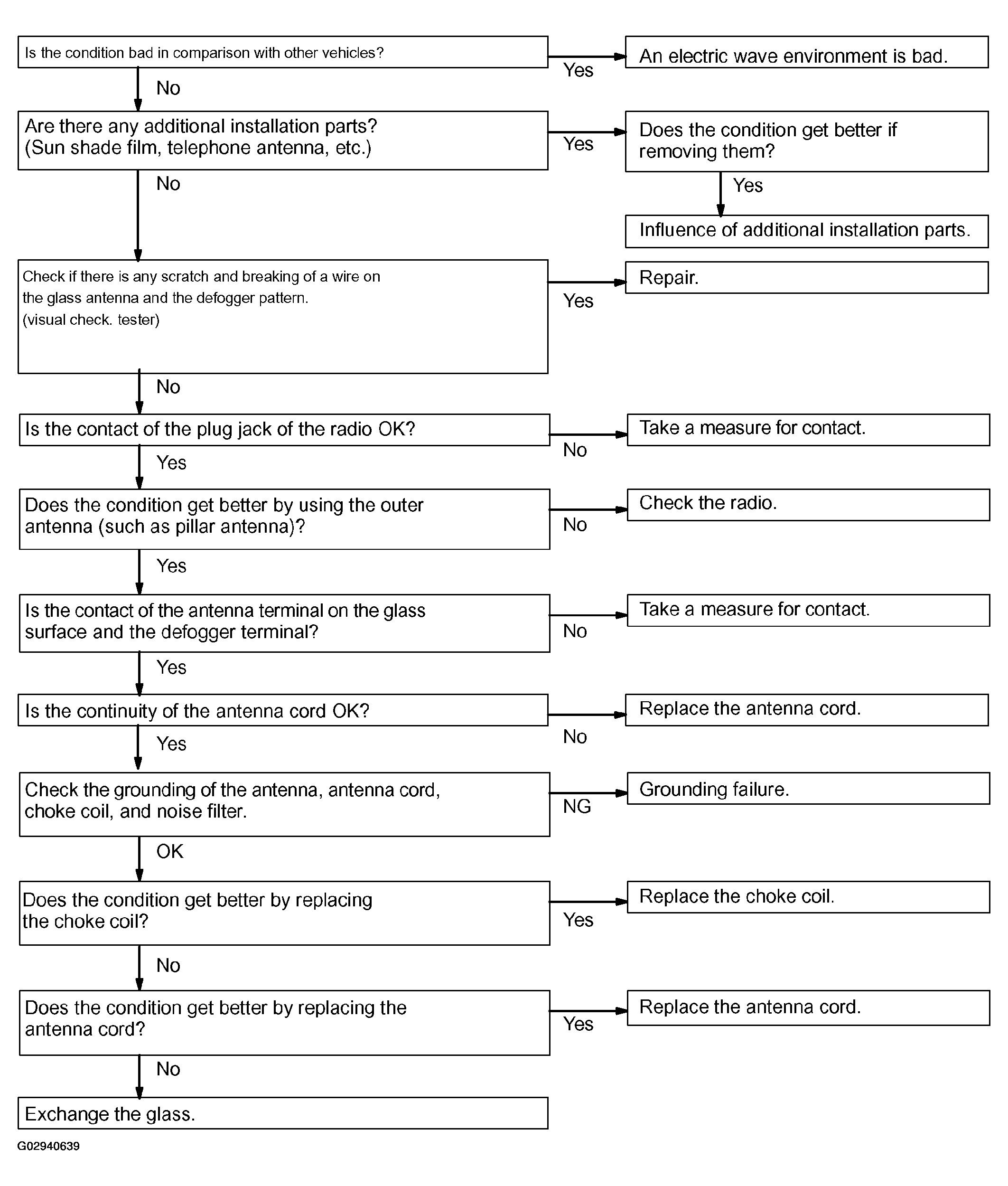

6. POOR RECEPTION
   Fig 6: Trouble Shooting Flow Chart - Radio - Poor Reception

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

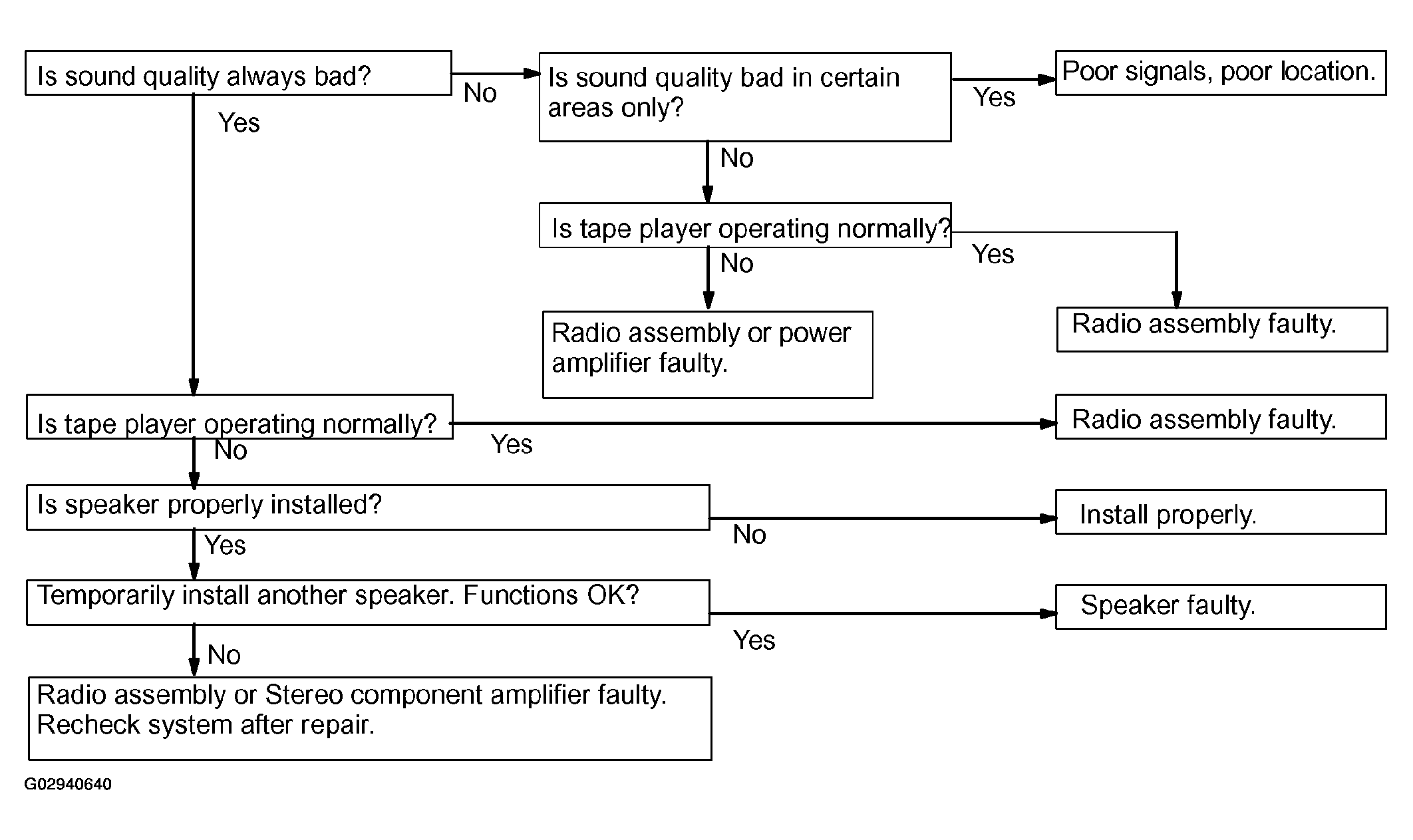

7. SOUND QUALITY POOR
   Fig 7: Trouble Shooting Flow Chart - Radio - Sound Quality Poor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

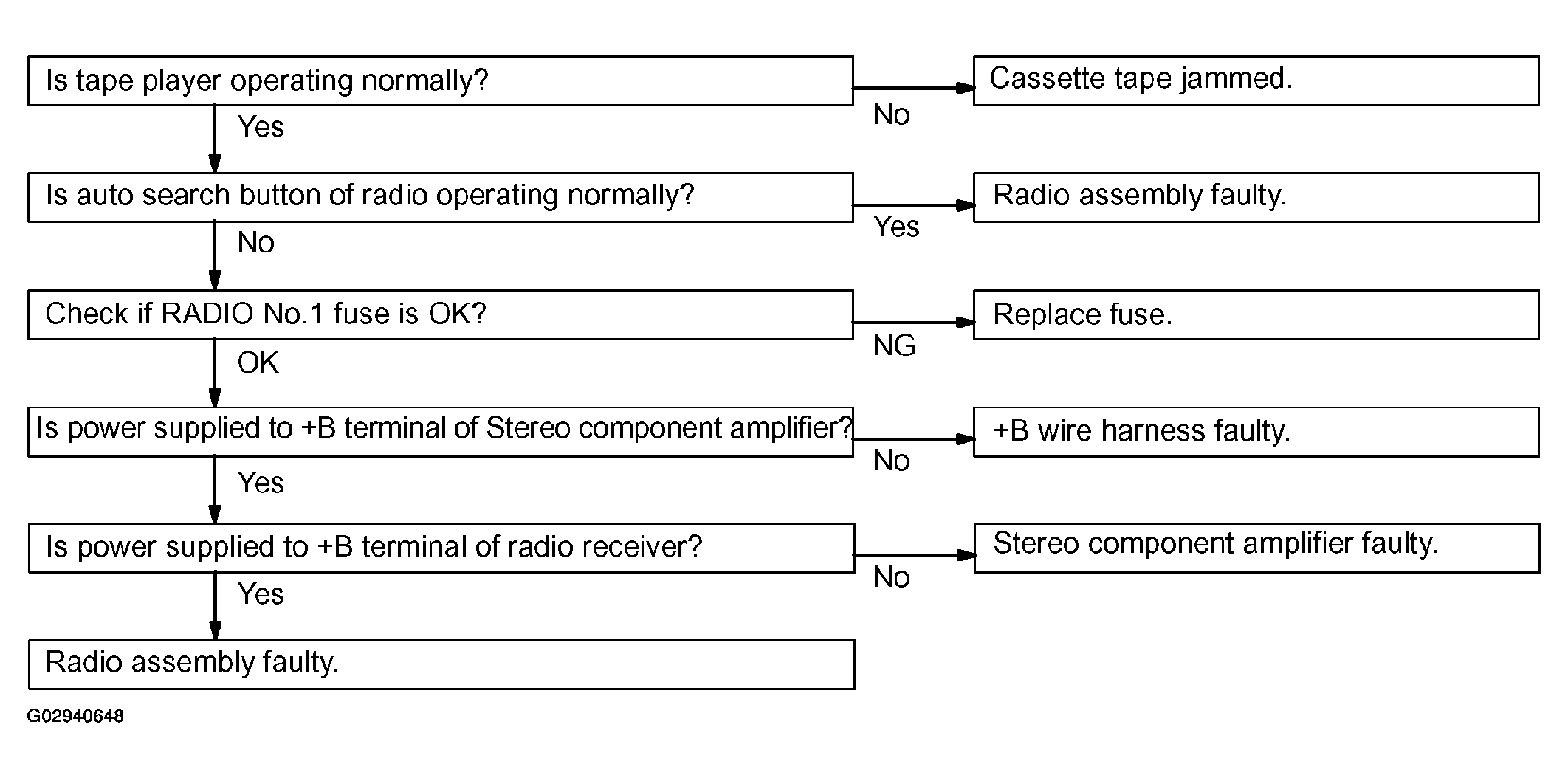

8. PRESET MEMORY DISAPPEARS
   Fig 8: Trouble Shooting Flow Chart - Radio - Sound Quality Poor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TAPE PLAYER

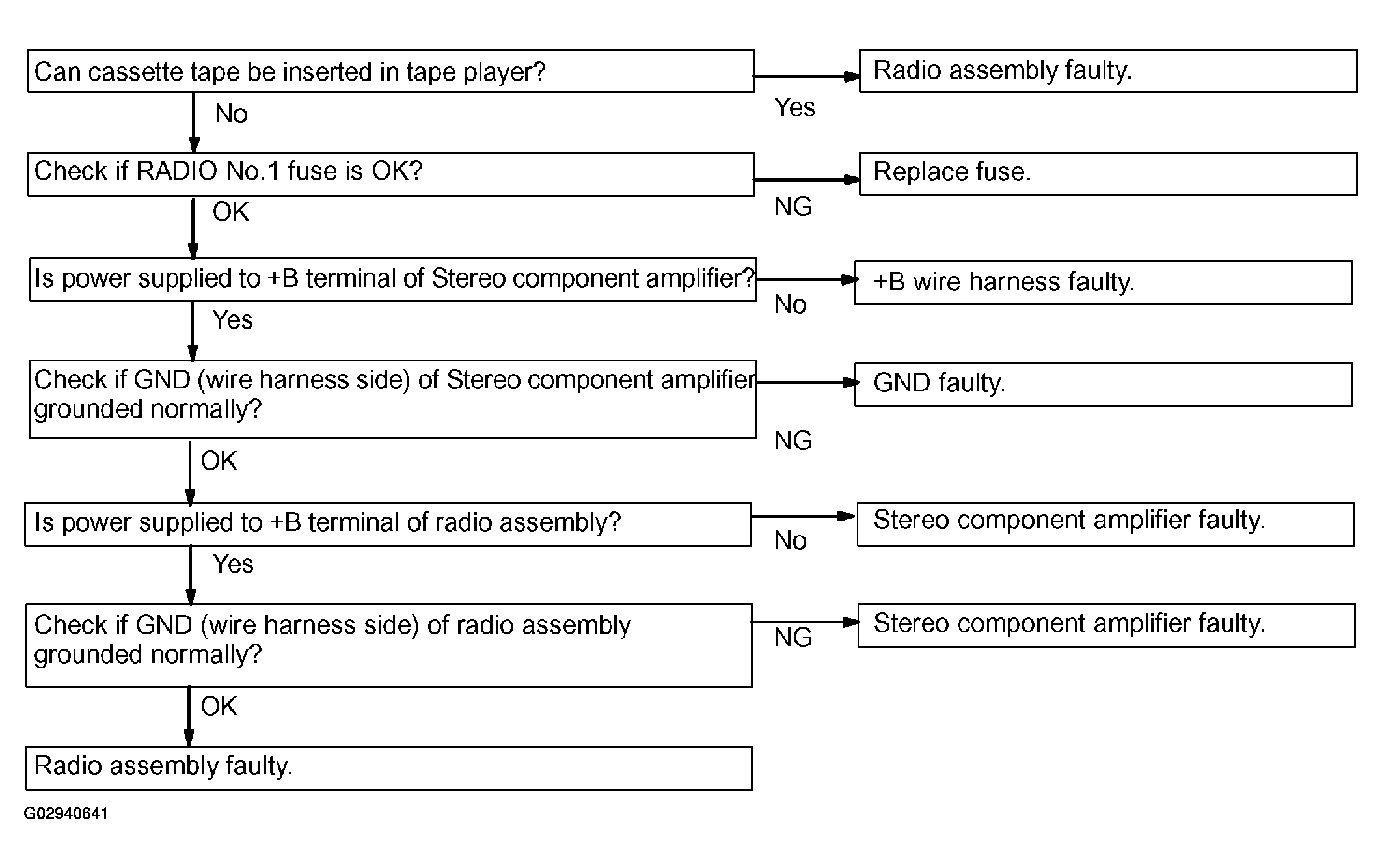

9. CASSETTE TAPE CANNOT BE INSERTED

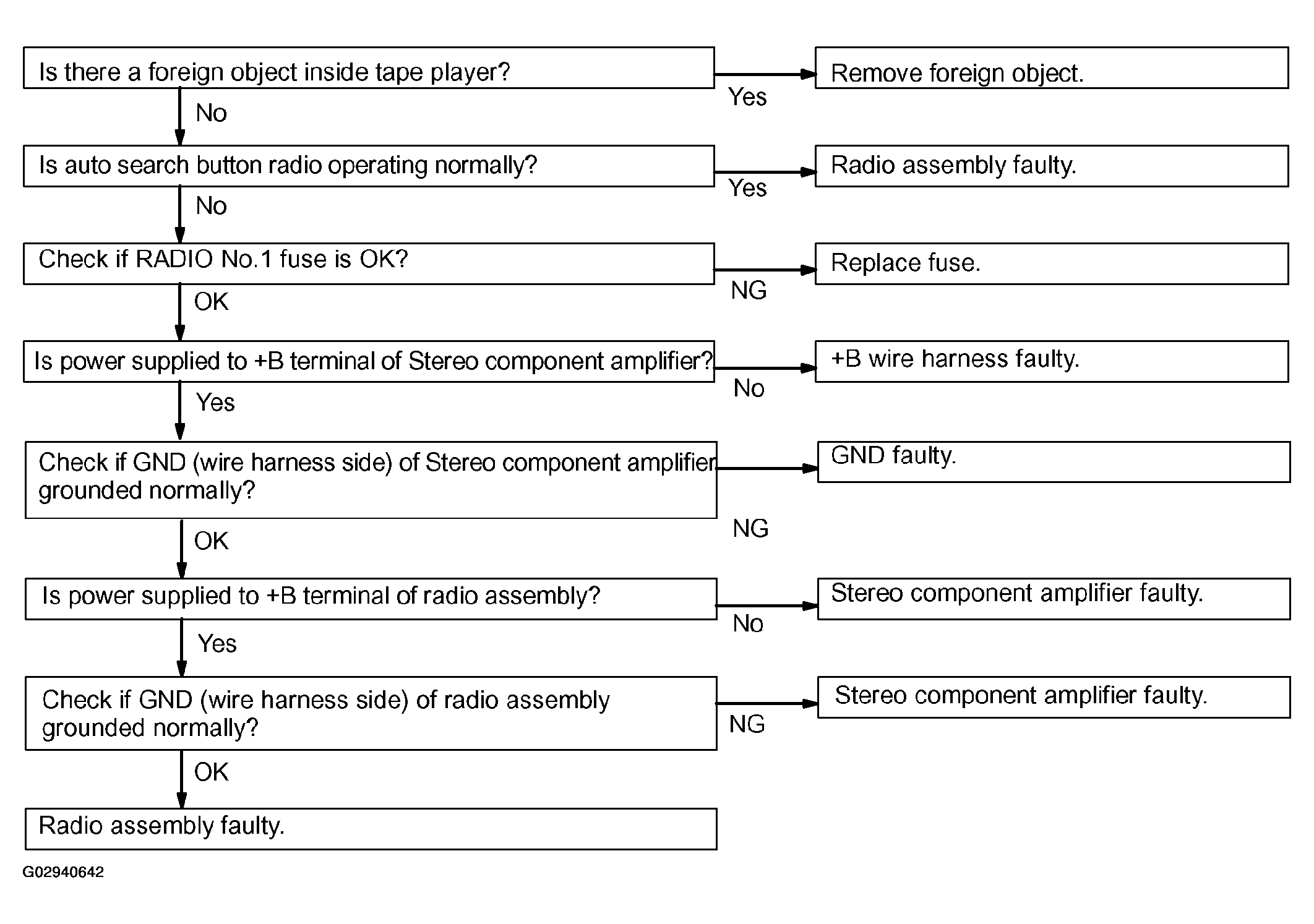

   Fig 9: Trouble Shooting Flow Chart - Tape Player - Cassette Tape Cannot Be Inserted

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. CASSETTE TAPE INSERTED, BUT NO POWER

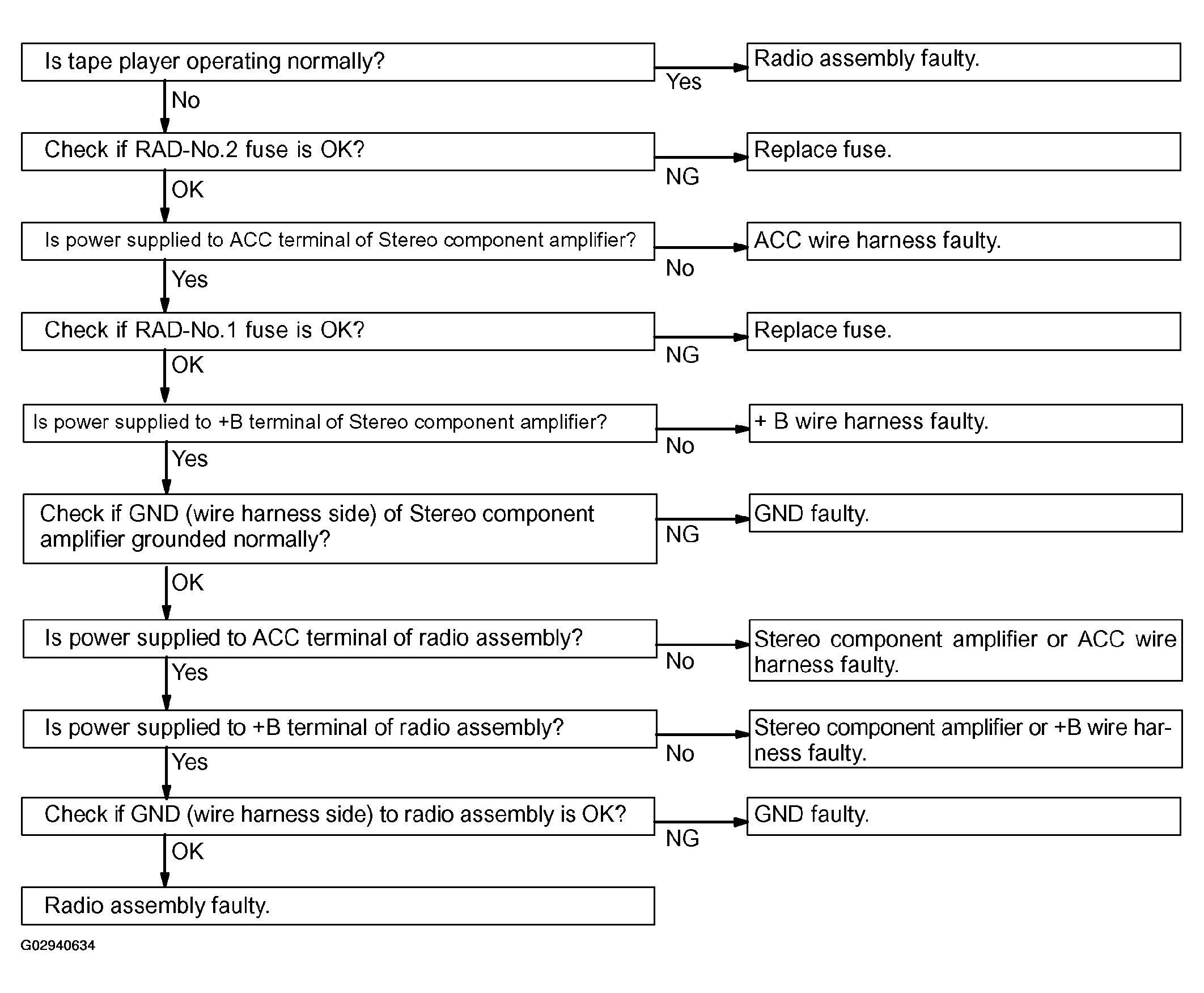

    Fig 10: Trouble Shooting Flow Chart - Tape Player - Cassette Tape Inserted, But No Power

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. POWER COMING IN, BUT TAPE PLAYER NOT OPERATING
    Fig 11: Trouble Shooting Flow Chart - Tape Player - Power Coming In, But Tape Player Not Operating

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

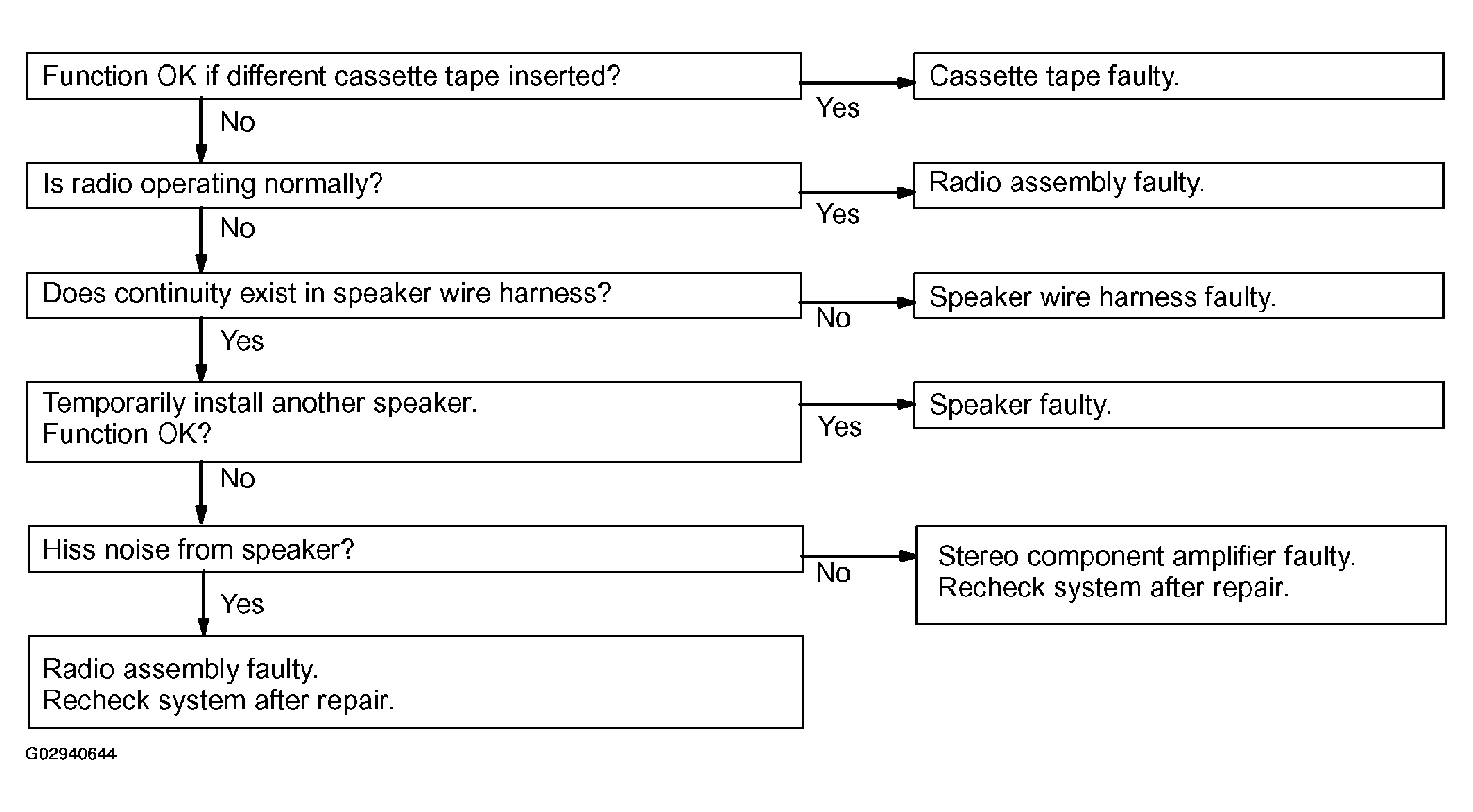

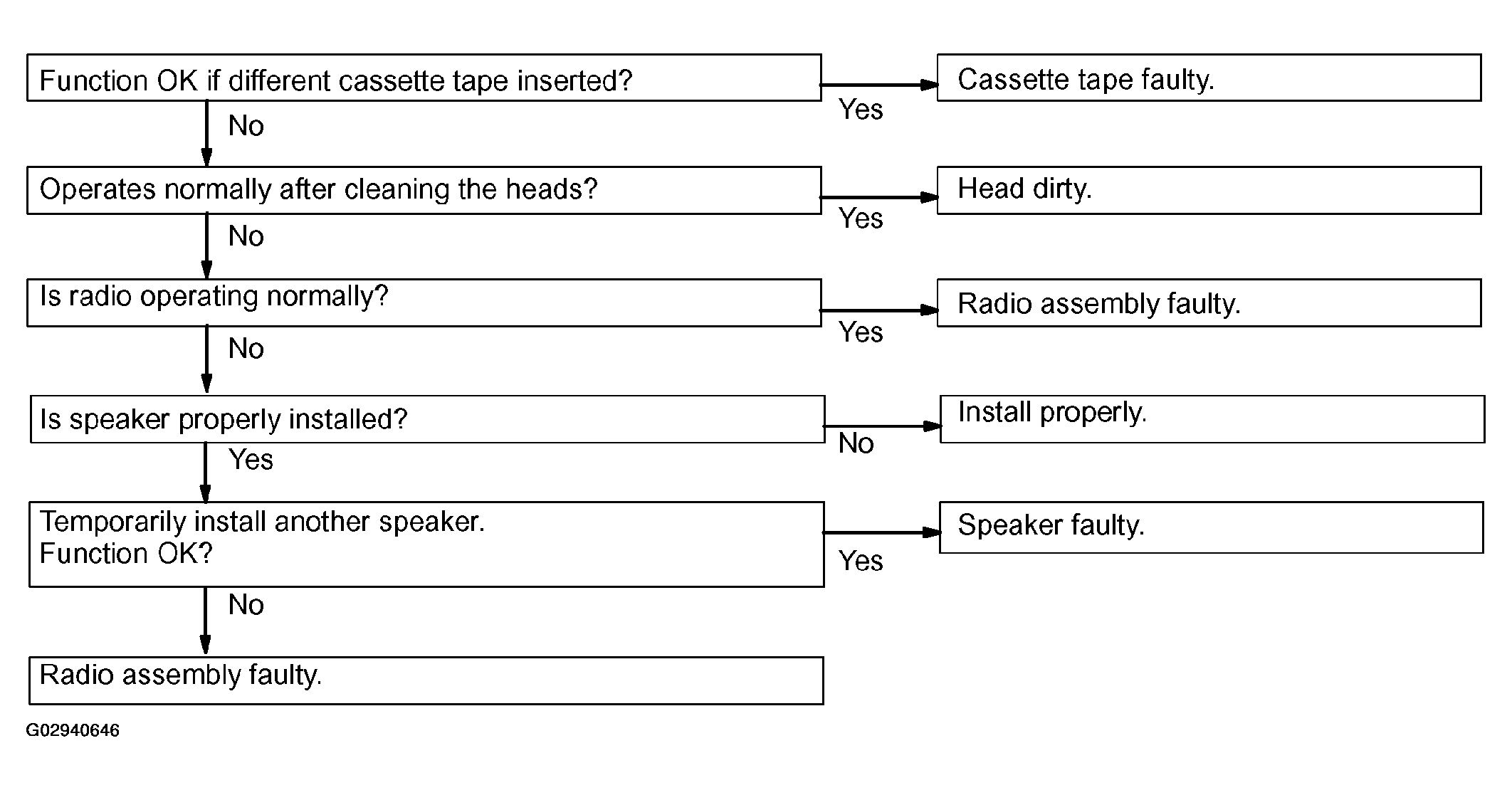

12. ANY SPEAKER DOES NOT WORK
    Fig 12: Trouble Shooting Flow Chart - Tape Player - Any Speaker Does Not Work

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. SOUND QUALITY POOR (VOLUME FAINT)
    Fig 13: Trouble Shooting Flow Chart - Tape Player - Sound Quality (Volume Faint)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

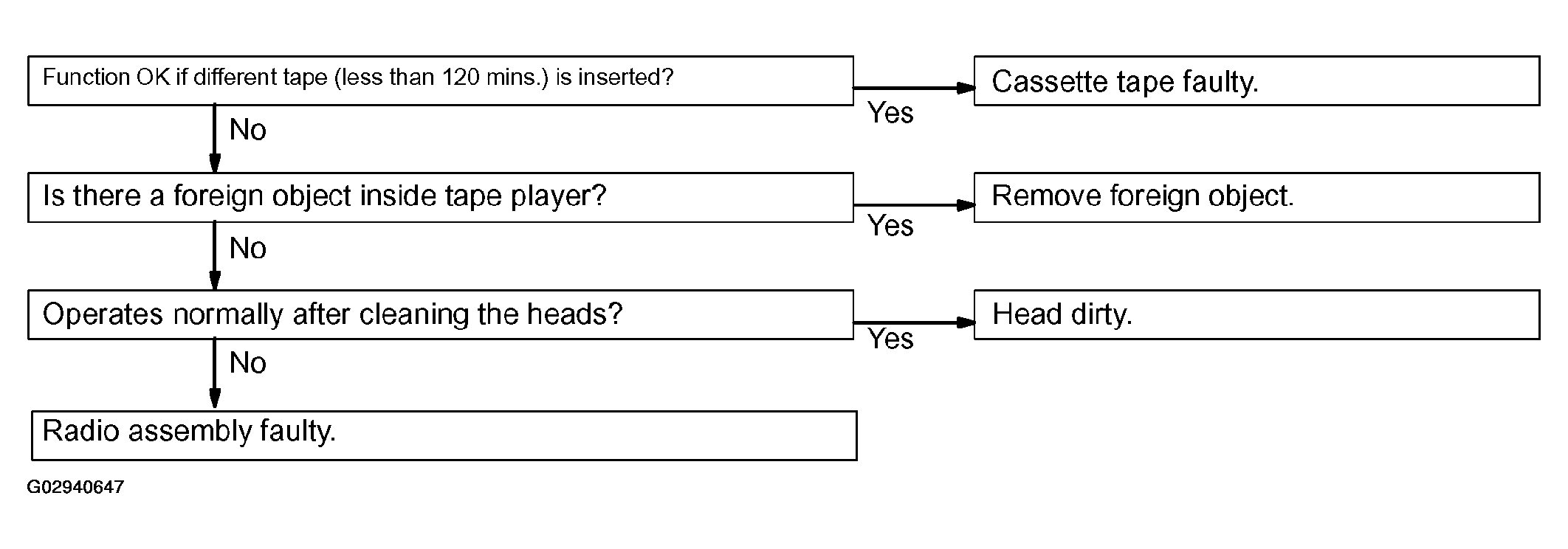

14. TAPE JAMMED MALFUNCTION WITH TAPE SPEED OR AUTO-REVERSE
    Fig 14: Trouble Shooting Flow Chart - Tape Player - Tape Jammed Malfunction With Tape Speed Or Auto-Reverse

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. CASSETTE TAPE WILL NOT BE EJECTED
    Fig 15: Trouble Shooting Flow Chart - Tape Player - Cassette Tape Will Not Be Ejected

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CD PLAYER

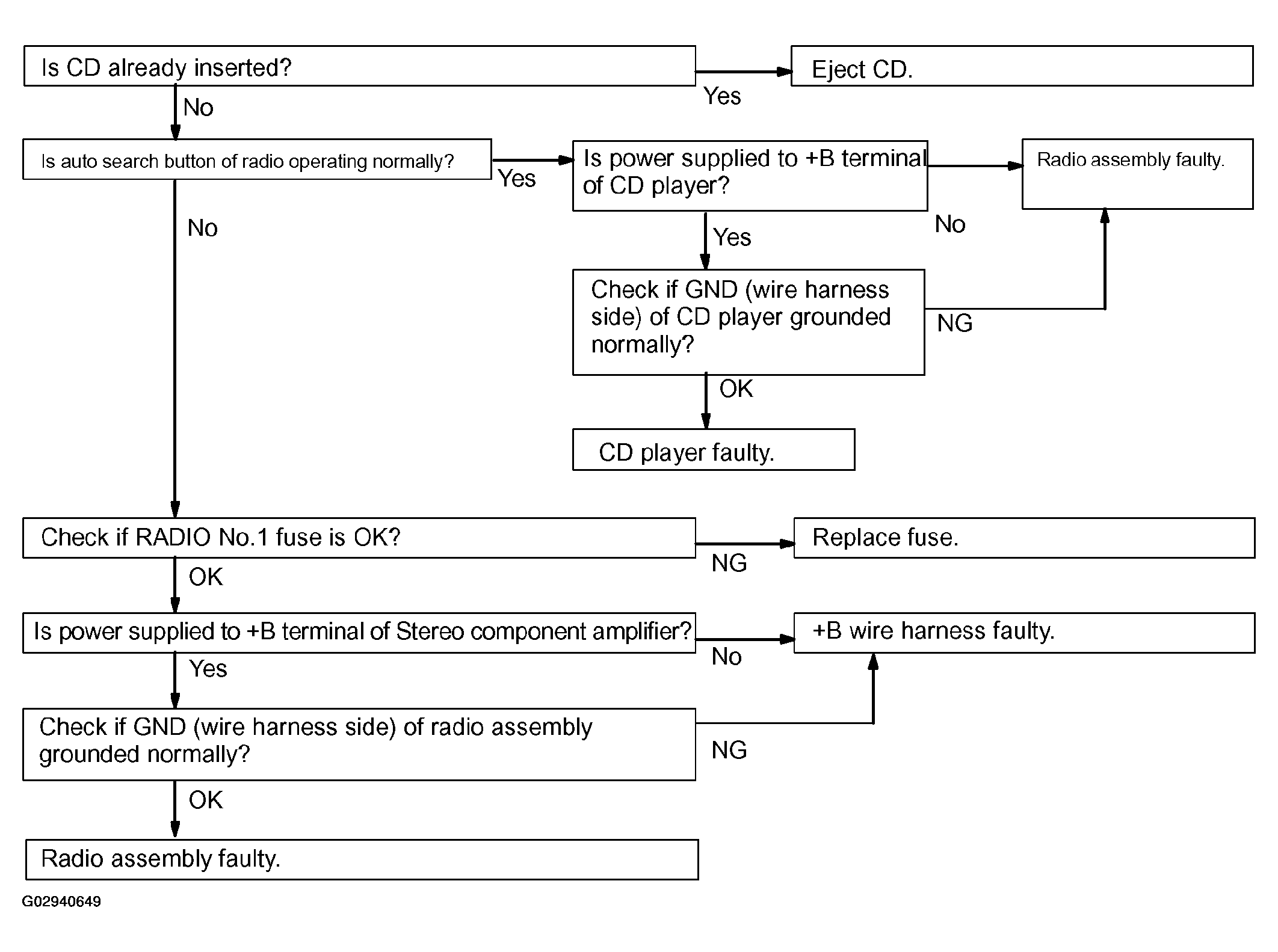

16. CD CANNOT BE INSERTED

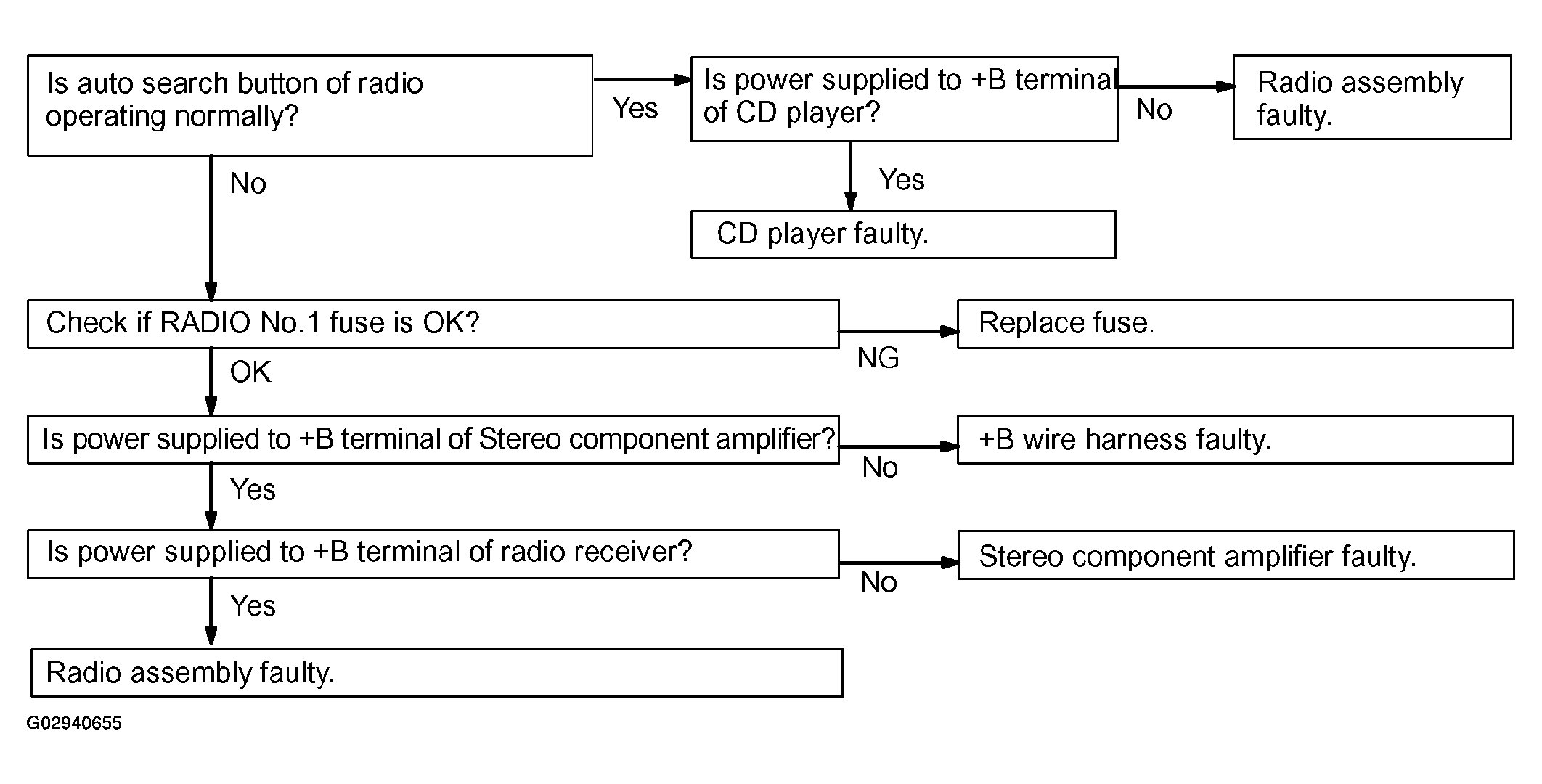

    Fig 16: Trouble Shooting Flow Chart - CD Player - CD Cannot Be Inserted

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

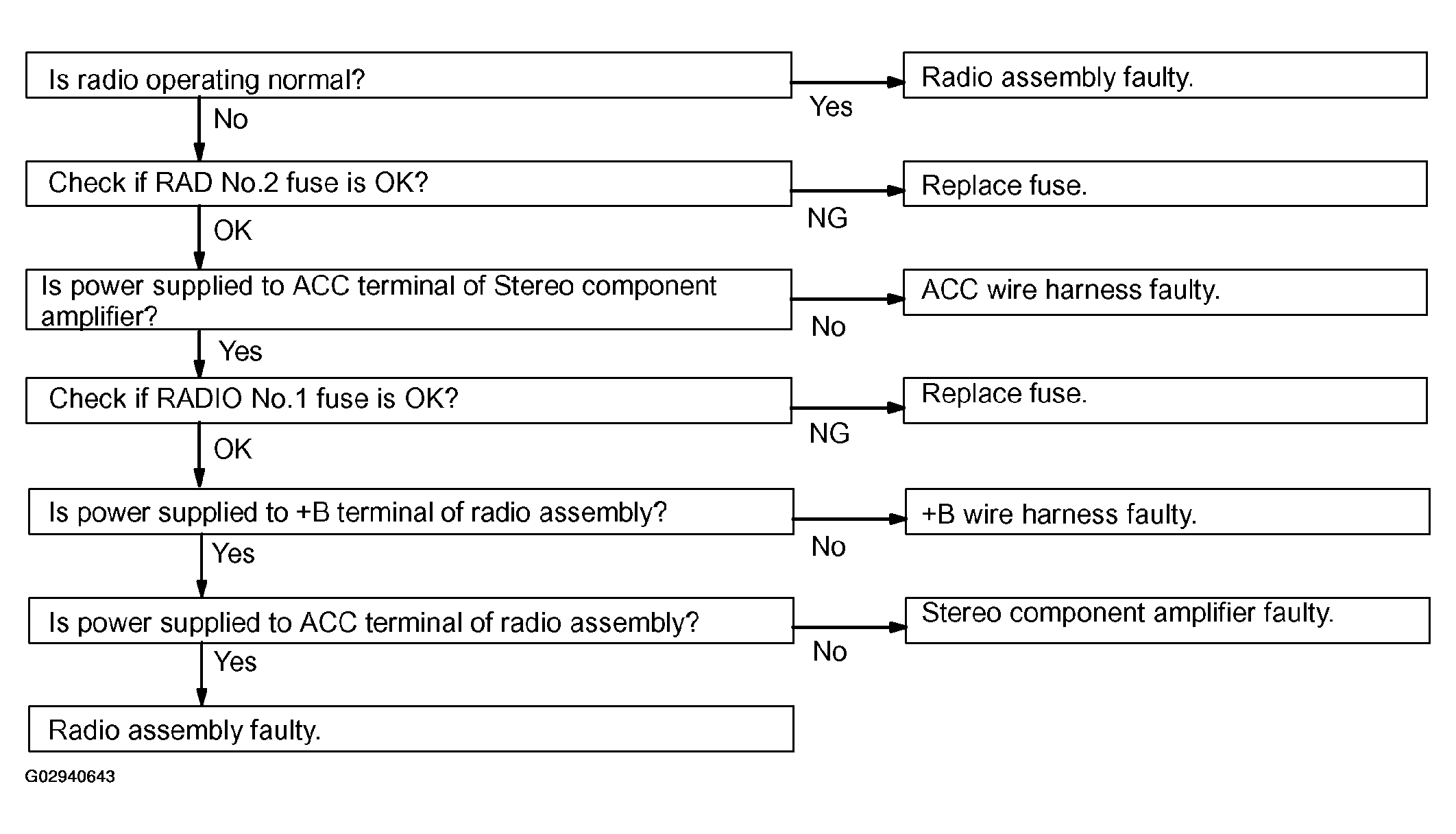

17. CD INSERTED, BUT NO POWER

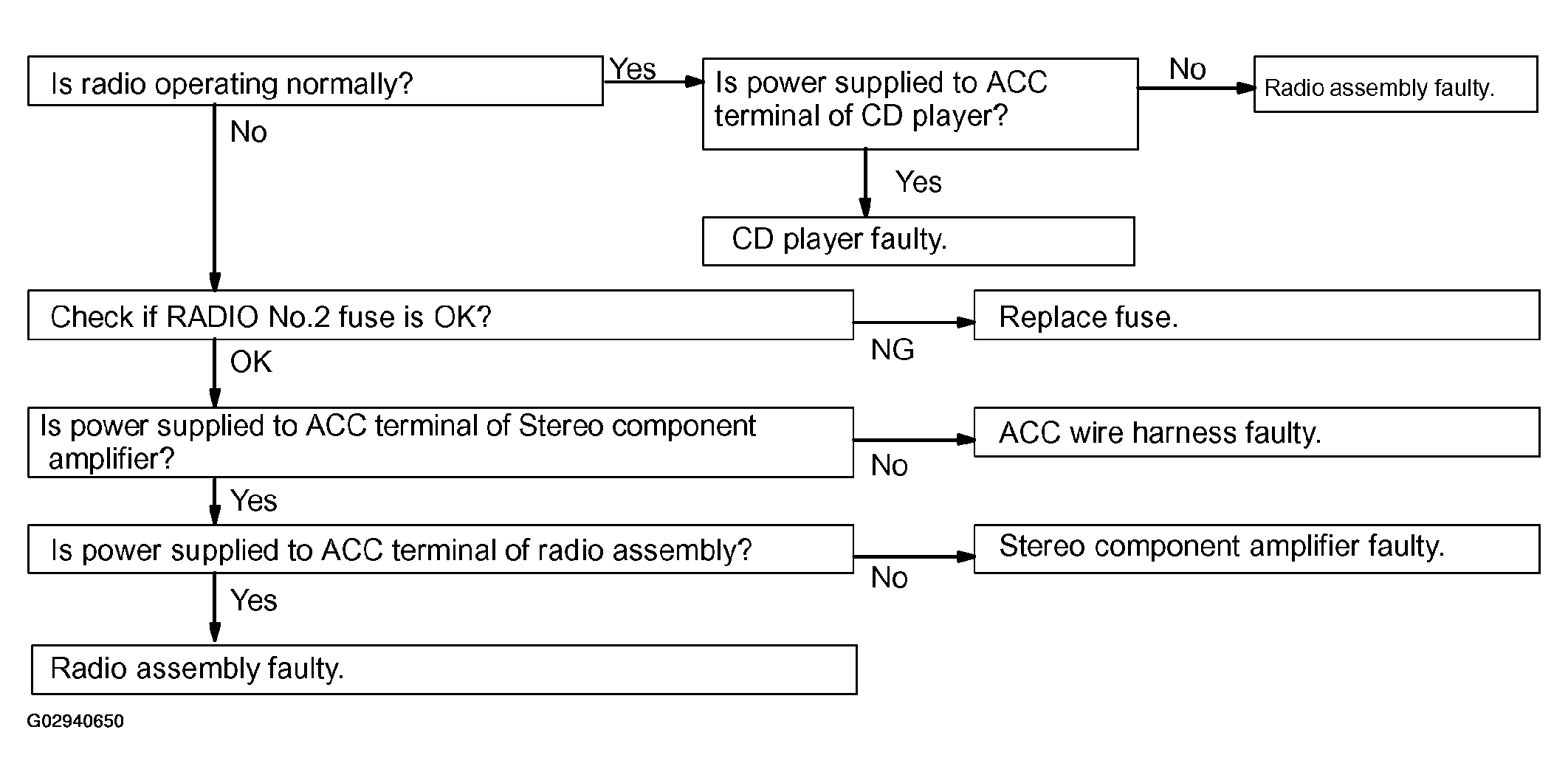

    Fig 17: Trouble Shooting Flow Chart - CD Player - CD Inserted, But No Power

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

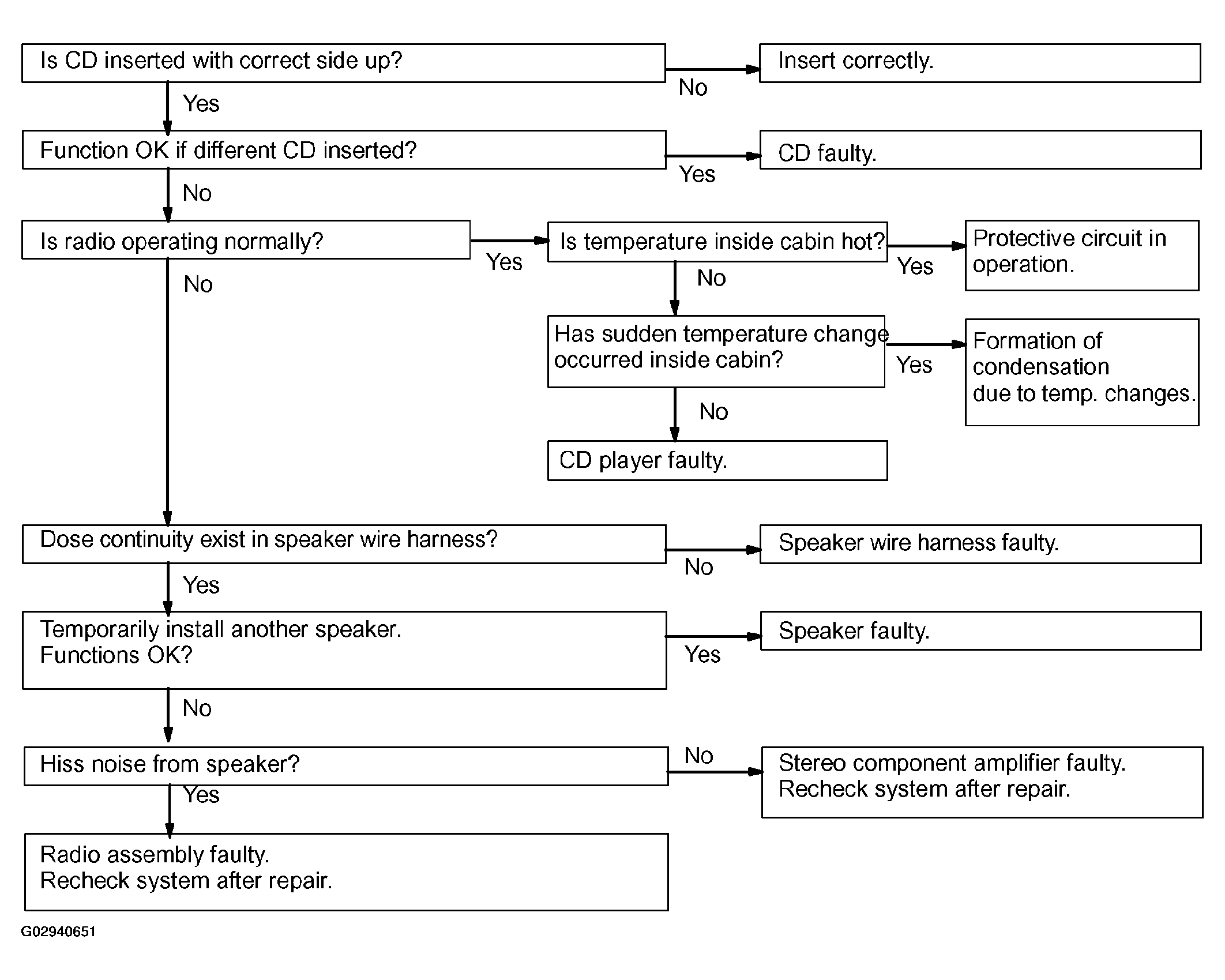

18. POWER COMING IN, BUT CD PLAYER NOT OPERATING
    Fig 18: Trouble Shooting Flow Chart - CD Player - Power Coming In, But CD Player Not Operating

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

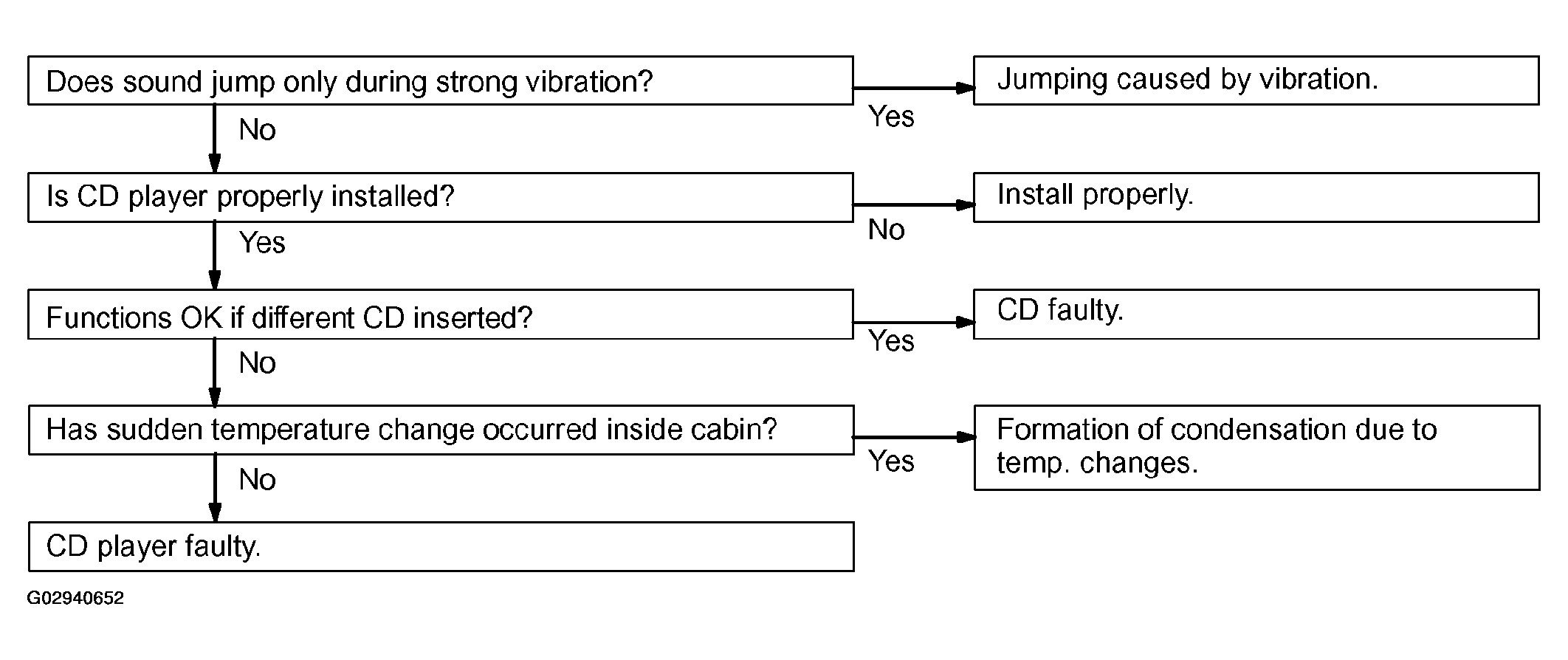

19. SOUND JUMPS
    Fig 19: Trouble Shooting Flow Chart - CD Player - Sound Jumps

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. SOUND QUALITY POOR (VOLUME FAINT)
    Fig 20: Trouble Shooting Flow Chart - CD Player - Sound Quality Poor (Volume Faint)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

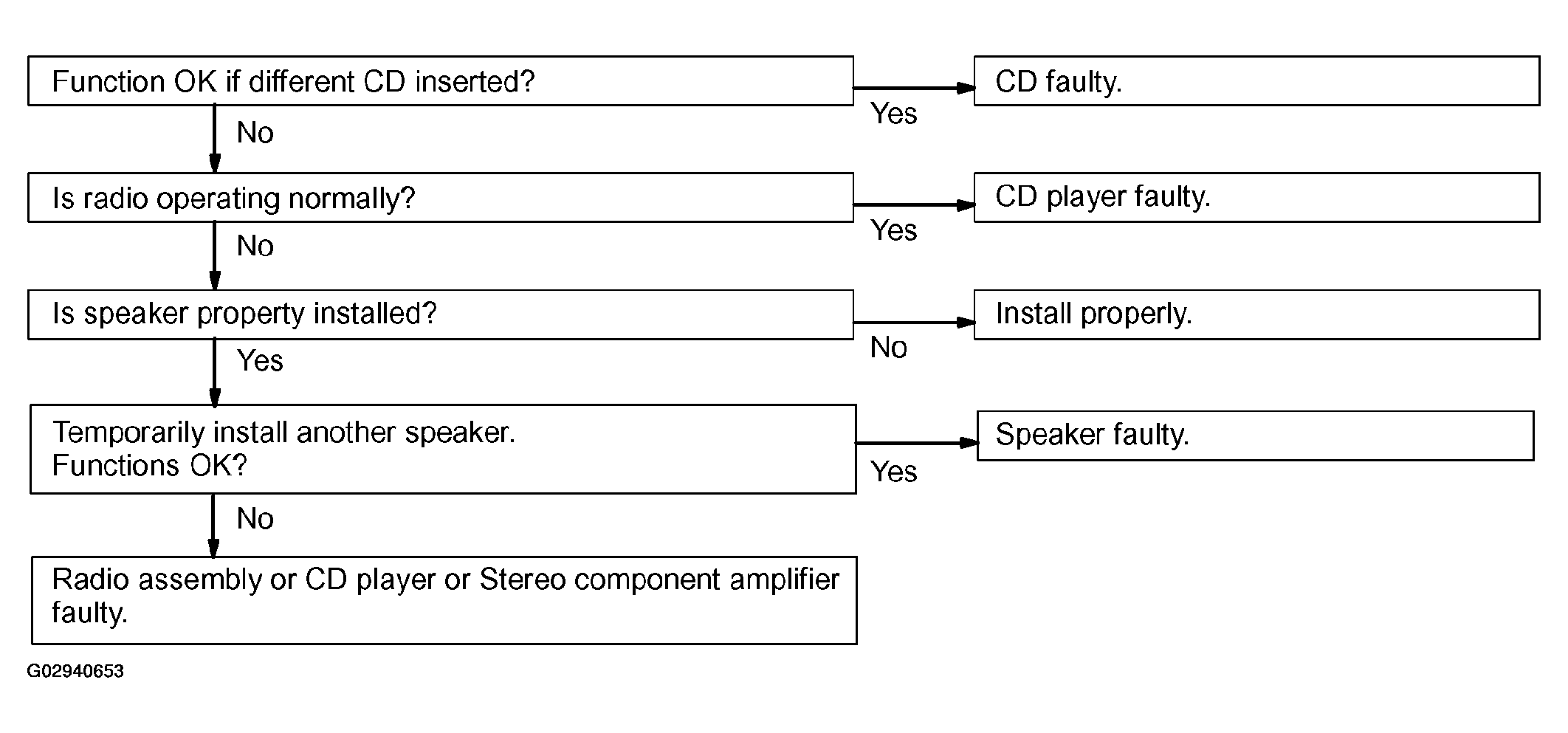

21. ANY SPEAKER DOES NOT WORK

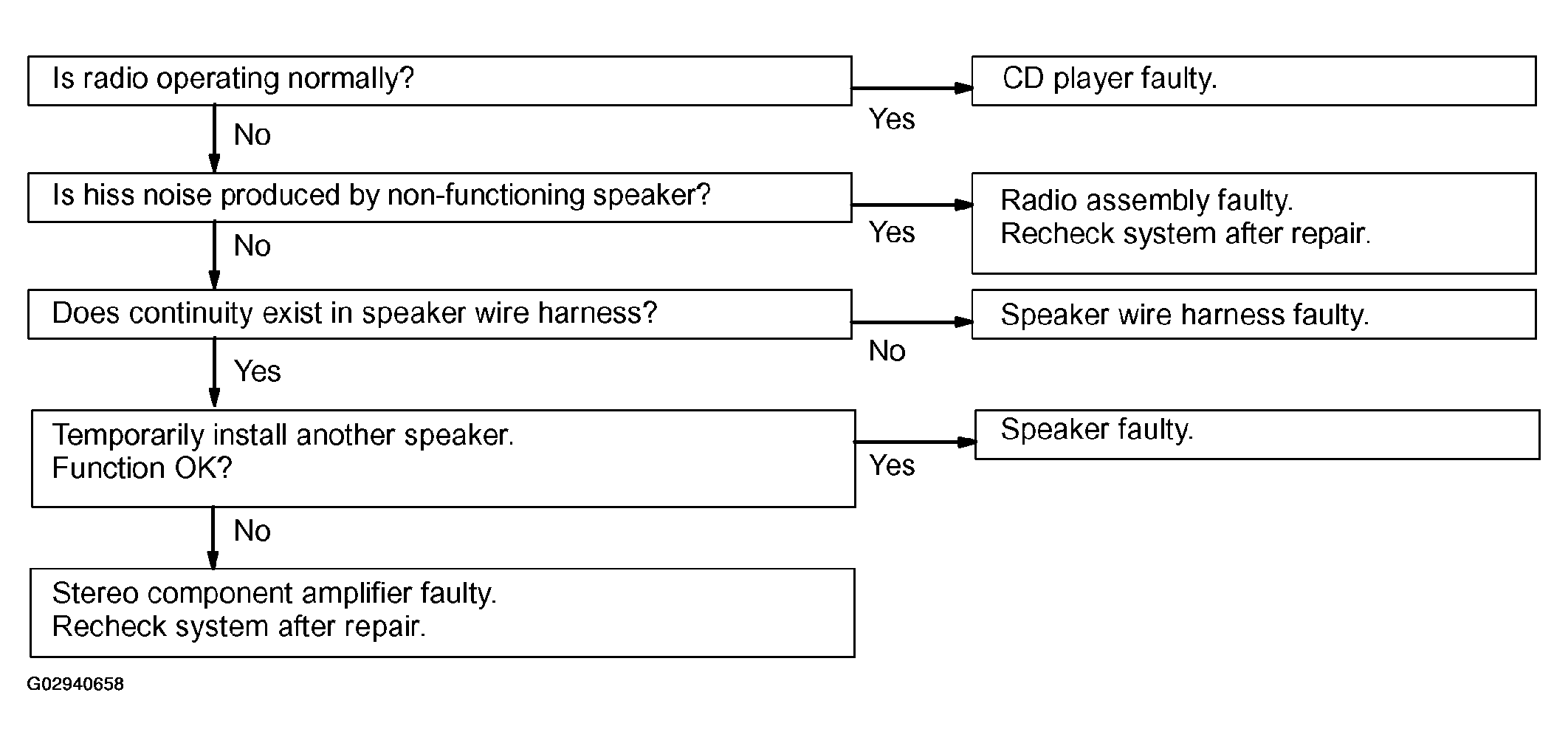

    Fig 21: Trouble Shooting Flow Chart - CD Player - Any Speaker Does Not Work

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
22. CD WILL NOT BE EJECTED
    Fig 22: Trouble Shooting Flow Chart - CD Player - CD Will Not Be Ejected

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STEREO COMPONENT AMPLIFIER

23. NO POWER COMING IN
    Fig 23: Trouble Shooting Flow Chart - Stereo Component Amplifier - No Power Coming IN

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
24. POWER COMING IN, BUT WOOFER (POWER) AMPLIFIER NOT OPERATING
    Fig 24: Trouble Shooting Flow Chart - Stereo Component Amplifier - Power (Coming IN, But Woofer (Power) Amplifier NOT Operating

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

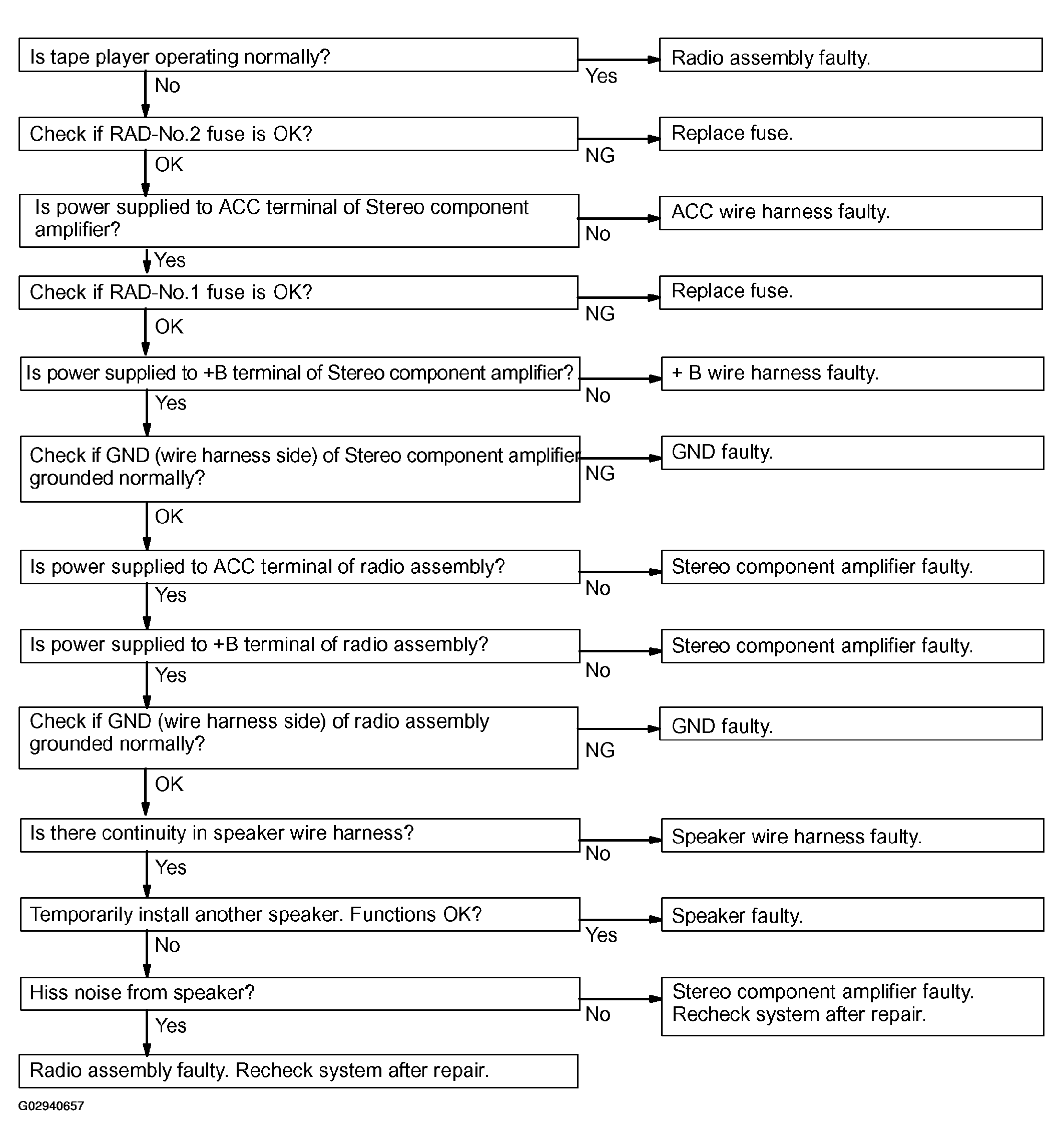

25. ANY SPEAKER DOES NOT WORK
    Fig 25: Trouble Shooting Flow Chart - Stereo Component Amplifier - Any Speaker Does Not Work

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOISE

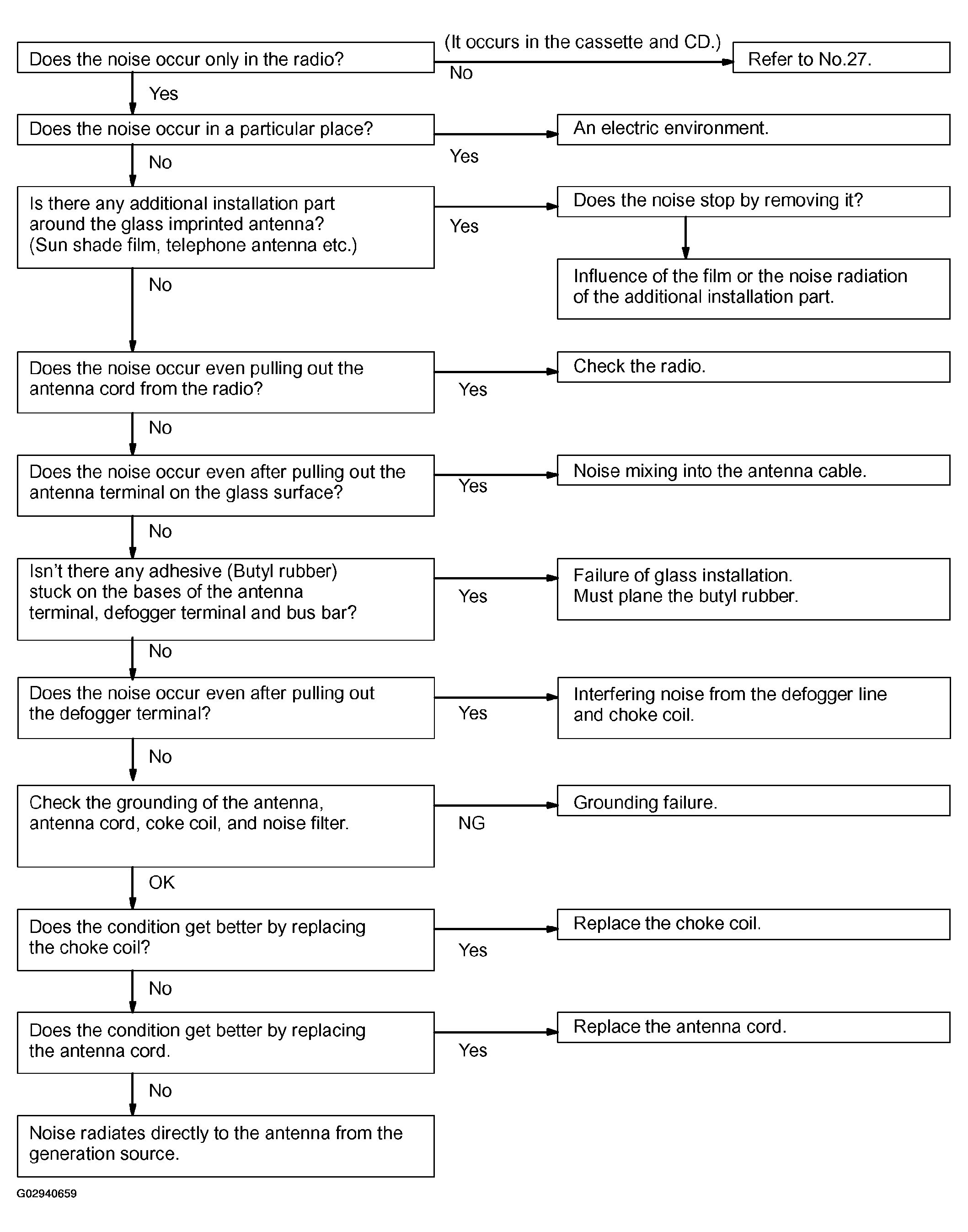

26. NOISE OCCURS

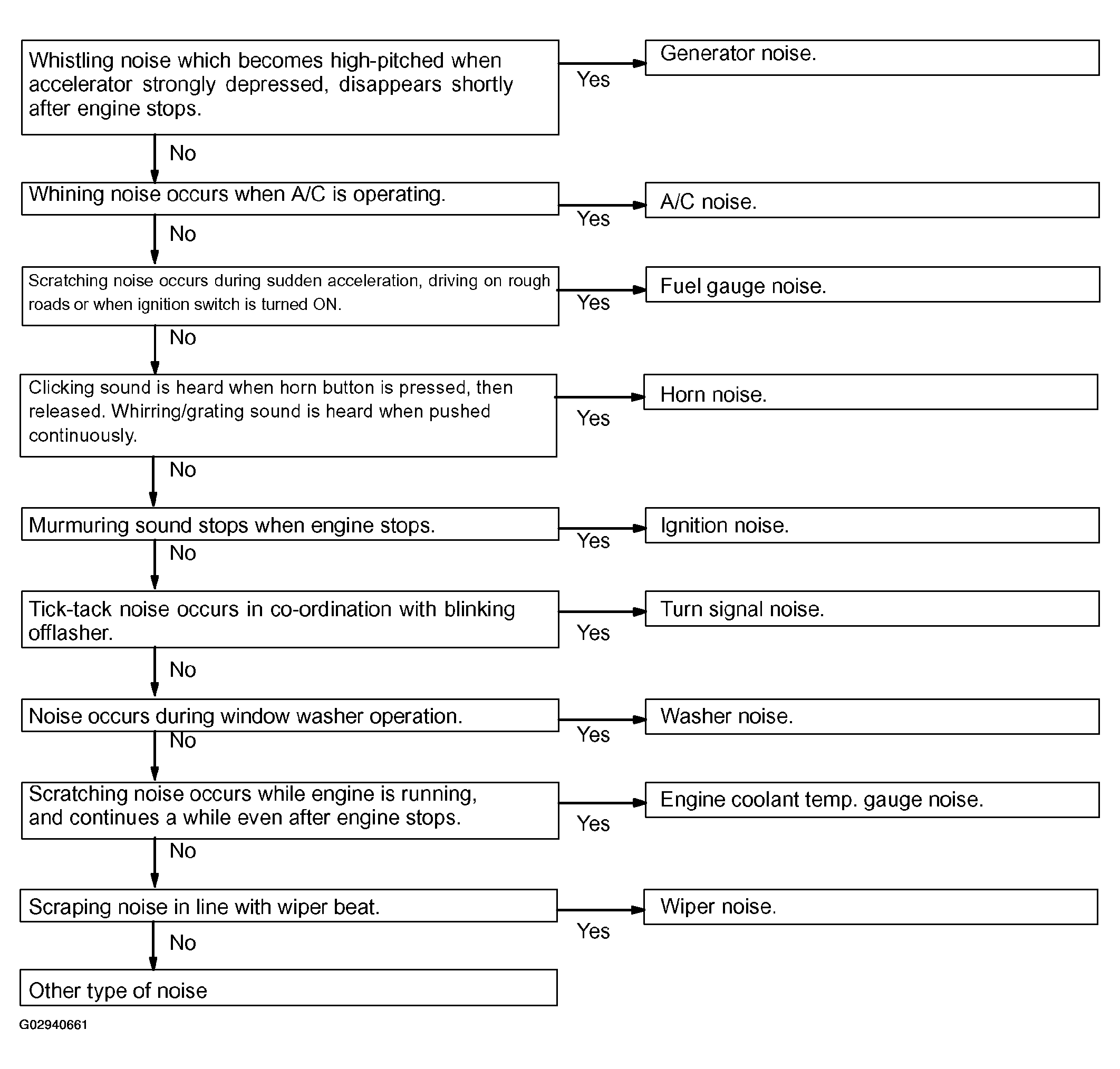

    Fig 26: Trouble Shooting Flow Chart - Noise Occurs

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

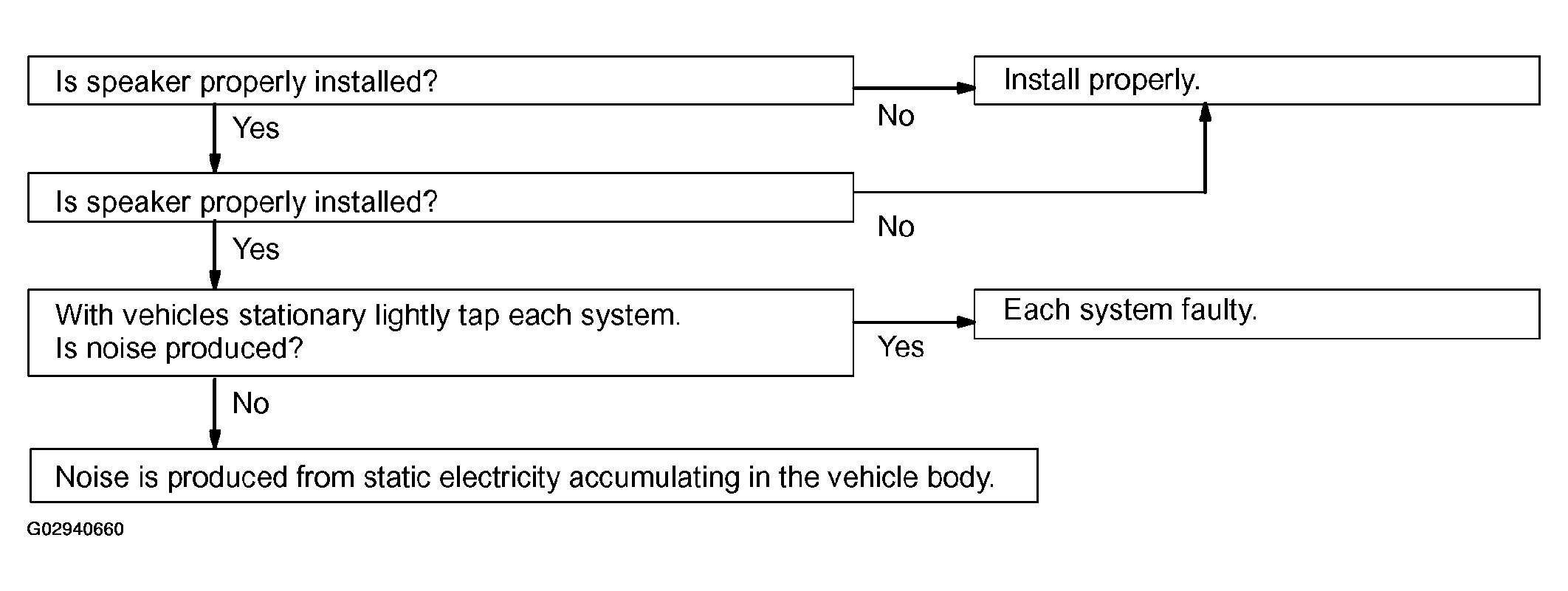

27. NOISE PRODUCED BY VIBRATION OR SHOCK WHILE DRIVING
    Fig 27: Trouble Shooting Flow Chart - Noise Produced By Vibration Or Shock While Driving

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
28. NOISE PRODUCED WHEN ENGINE STARTS
    Fig 28: Trouble Shooting Flow Chart - Noise Produced When Engine Starts

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
