Vehicle Lift And Support Locations

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

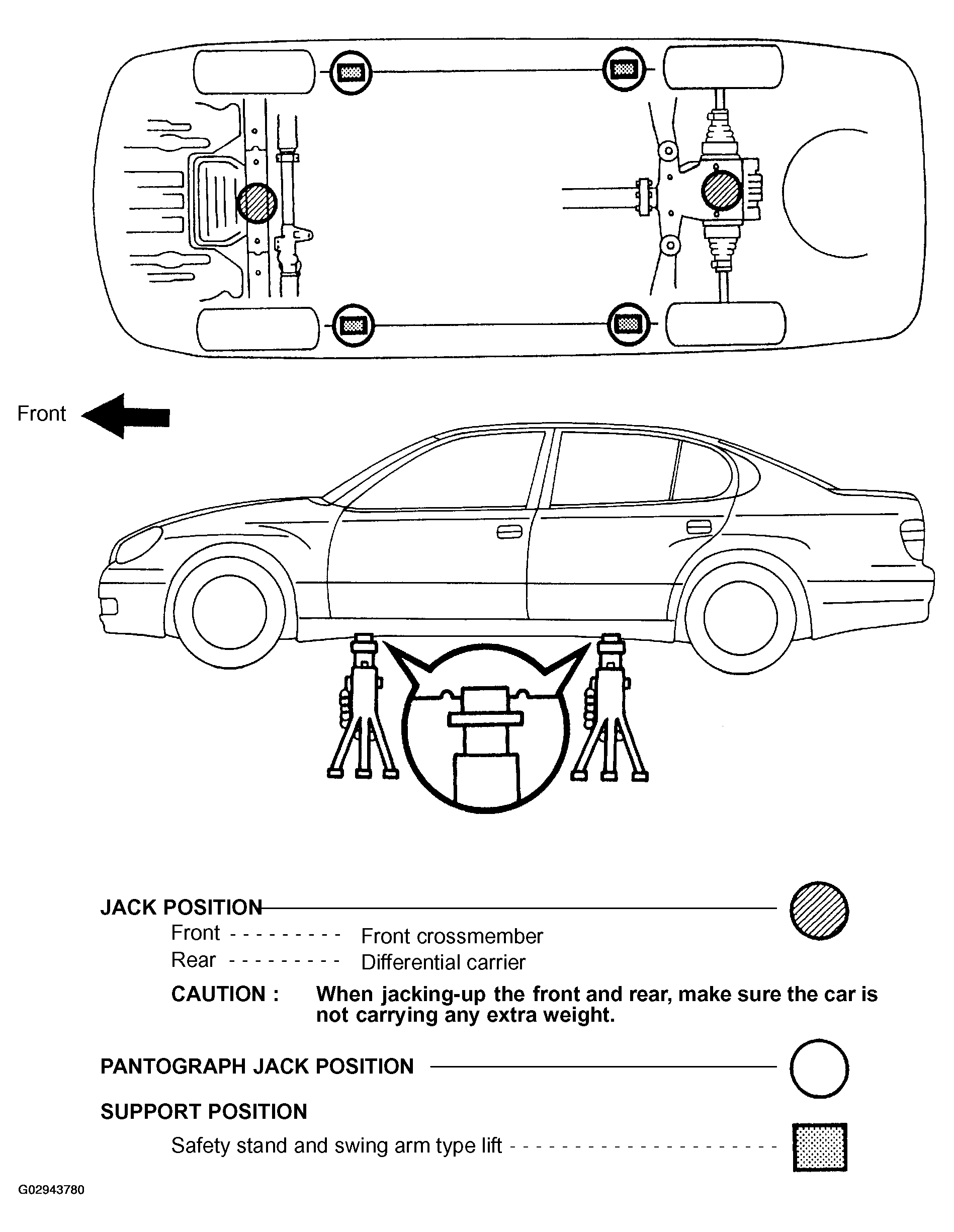

Fig 1: Locating Jack And Support Lifting Position
G02943780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

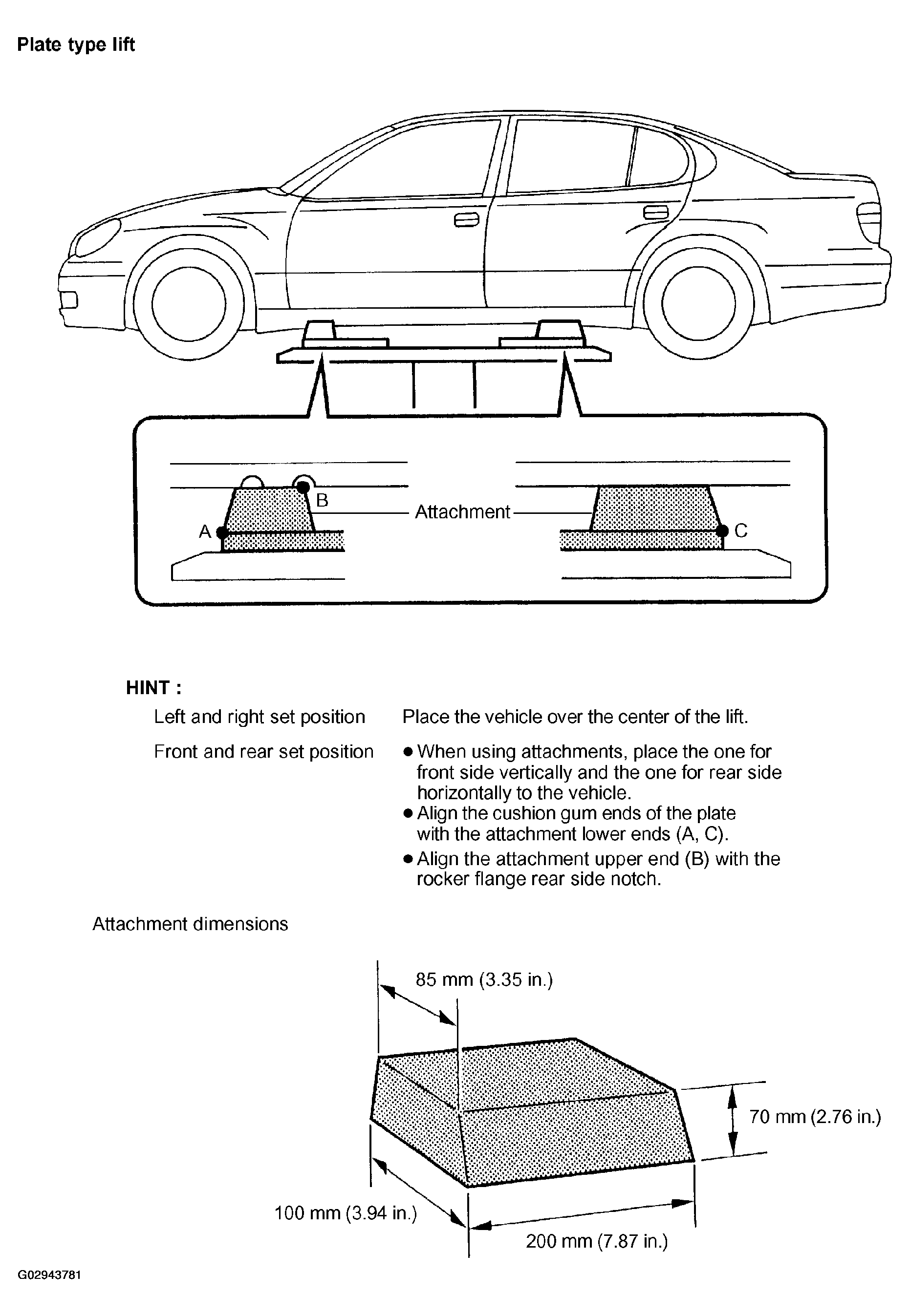

Fig 2: Lifting Vehicle With Plate Type Lift Using Cushion
G02943781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
