Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus GS 430 and 2004 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

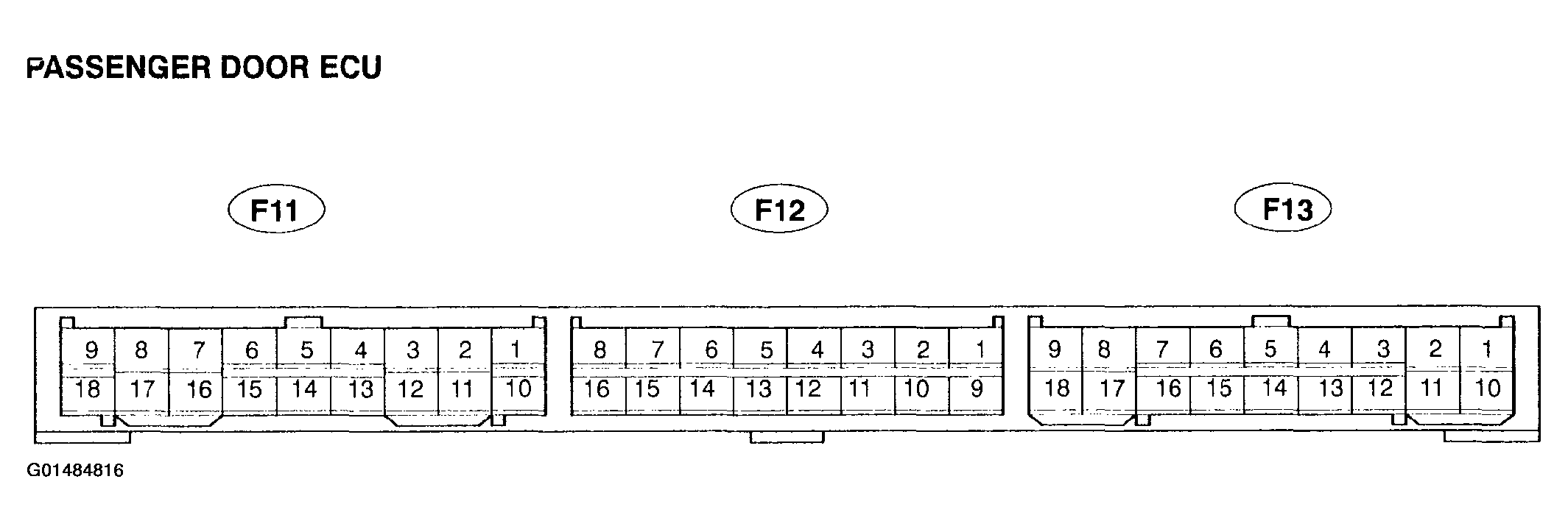

Fig 1: Identifying Terminals Of ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

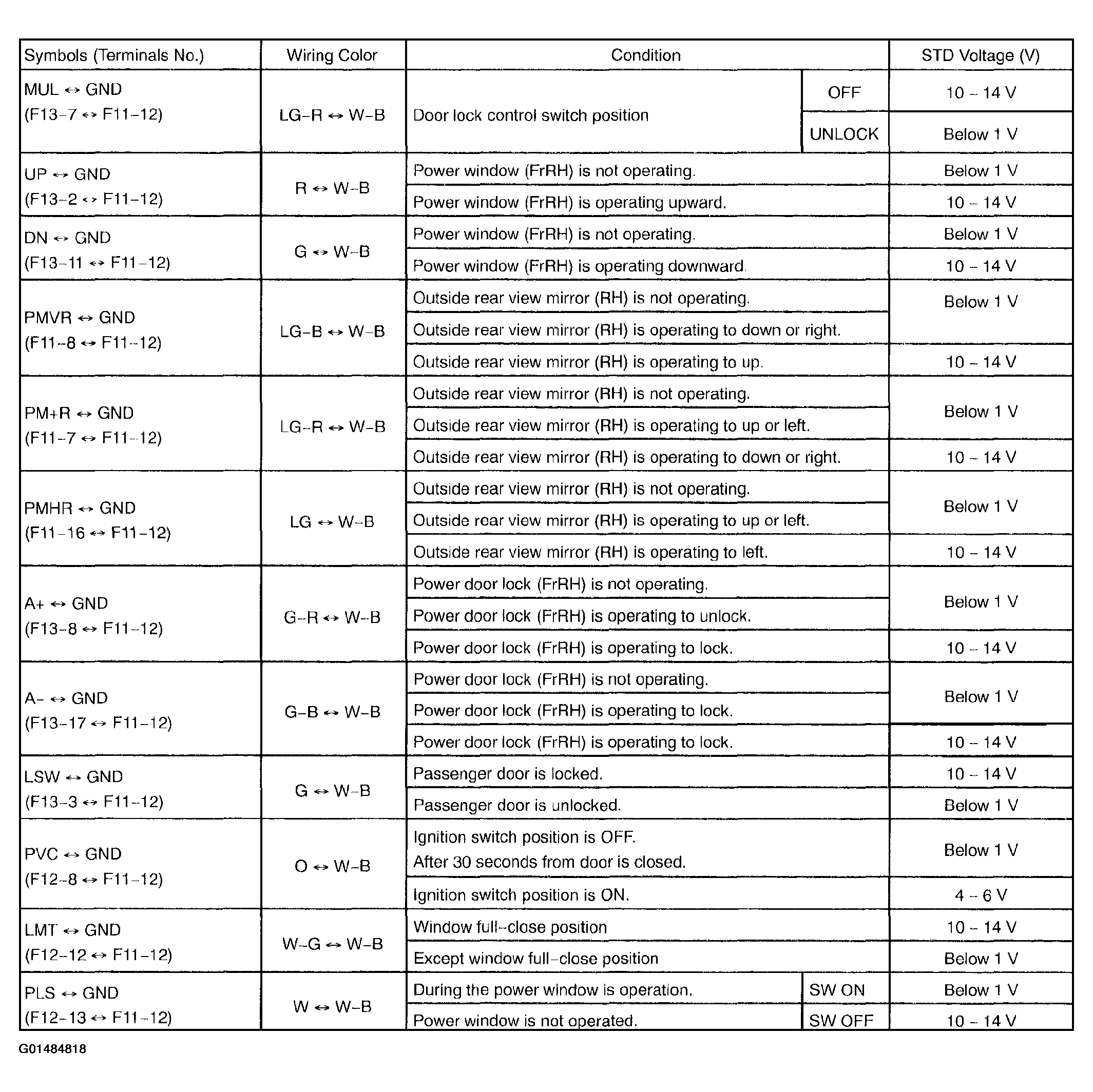

Fig 2: Symbols Specification (1 Of 2)

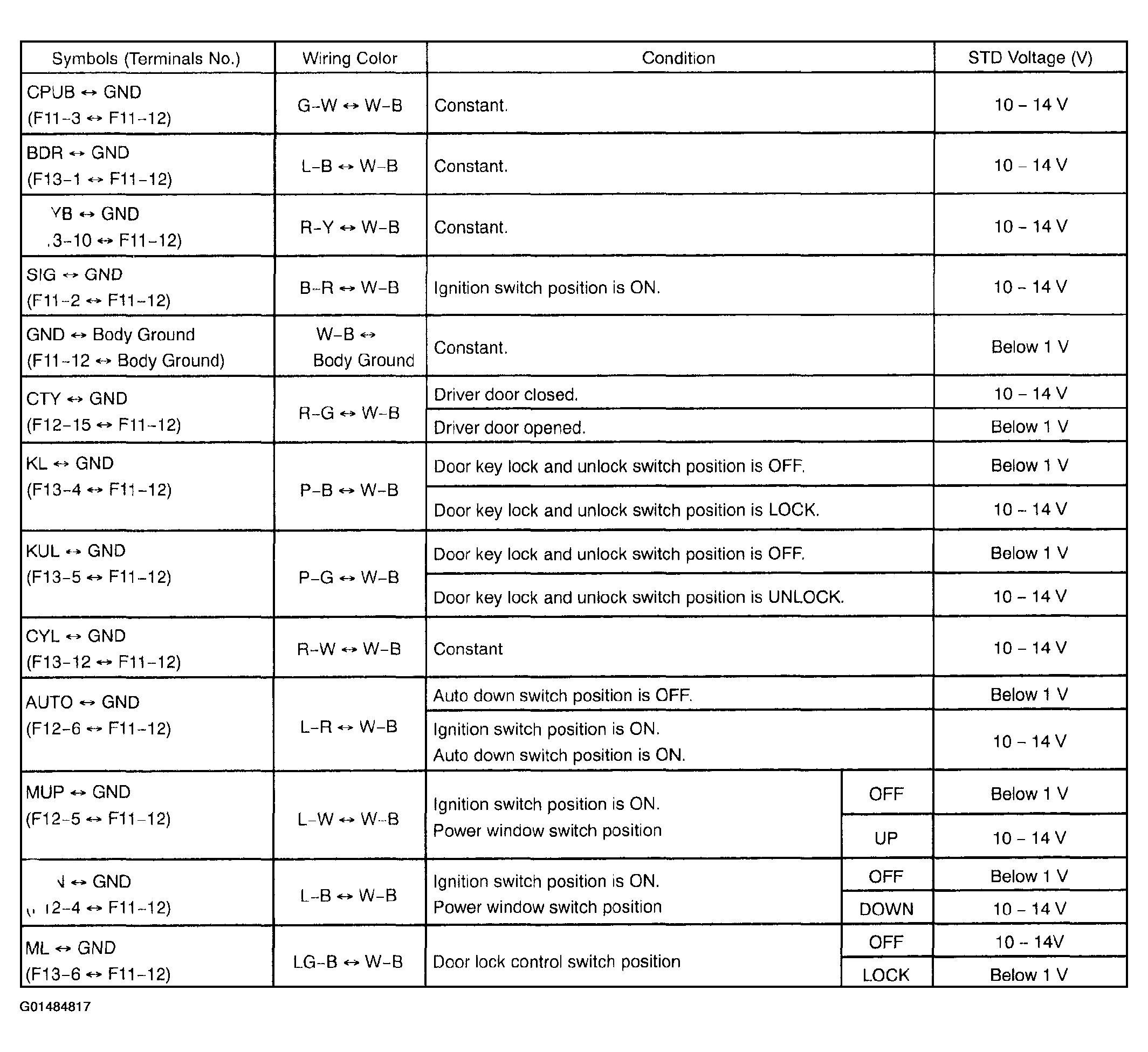

Fig 3: Symbols Specification (2 Of 2)
