Refrigerant Line: Components

WARNING: This page is about a different car, the 2004 Lexus GS 430, 2004 Lexus GS 300, 2003 Lexus GS 430, and 2003 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

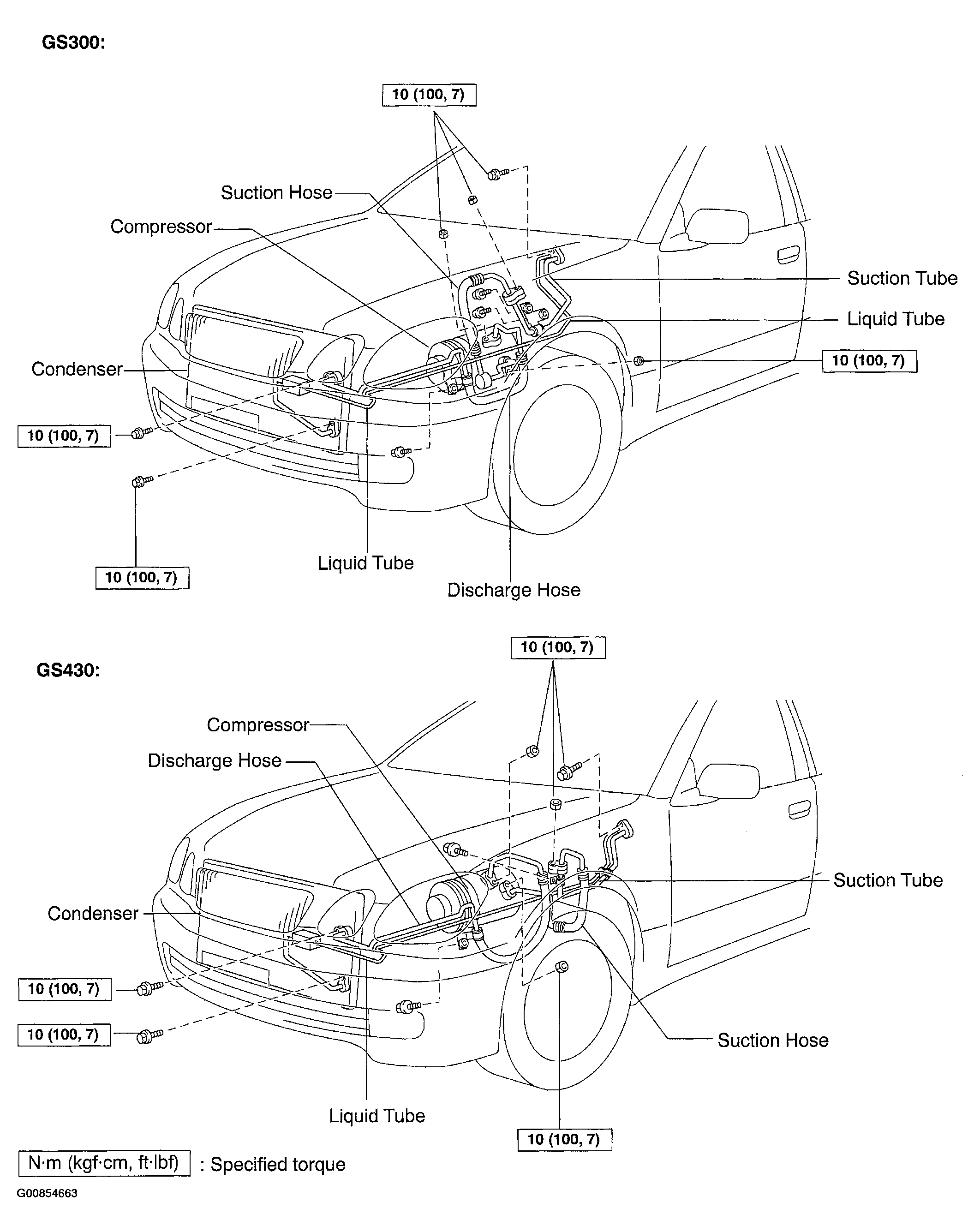

Fig 1: Identifying Under Hood A/C Components
G00854663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
