Propeller Shaft Assembly: Components

WARNING: This page is about a different car, the 2003 Lexus GS 430 and 2003 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

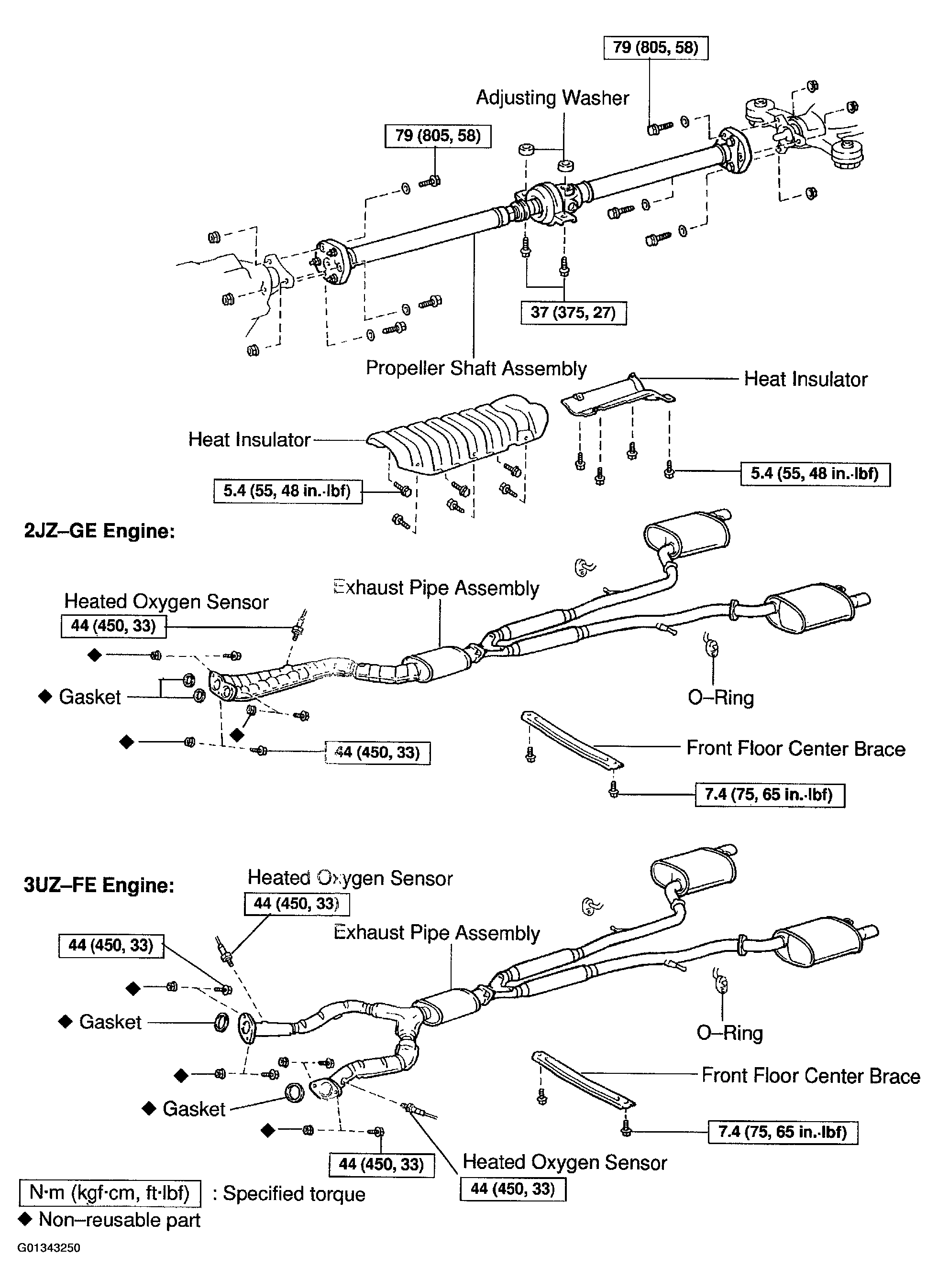

Fig 1: Identifying Propeller Shaft & Exhaust Components
G01343250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

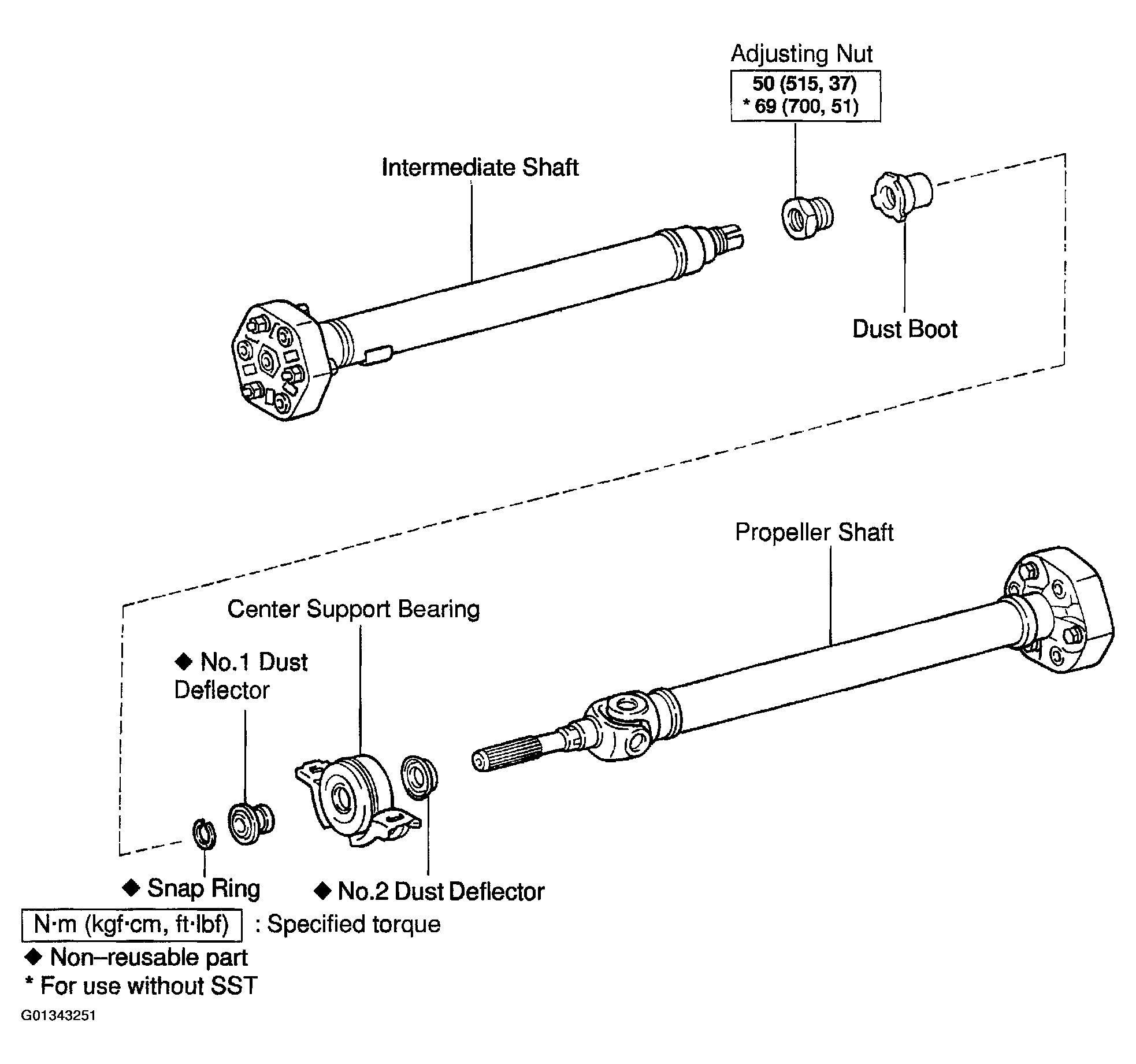

Fig 2: Exploded View Of Propeller Shaft Assembly
G01343251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
