Section 124 (Water Pump): Removal

WARNING: This page is about a different car, the 2002 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE RADIATOR ASSEMBLY (See REMOVAL )
REMOVE DRIVE BELT AND WATER PUMP PULLEY
1. Loosen the 4 nuts holding the water pump pulley to the water pump.
2. Loosen the drive belt tension by turning the drive belt tensioner clockwise, and remove the drive belt.
3. Remove the 4 nuts and water pump pulley.

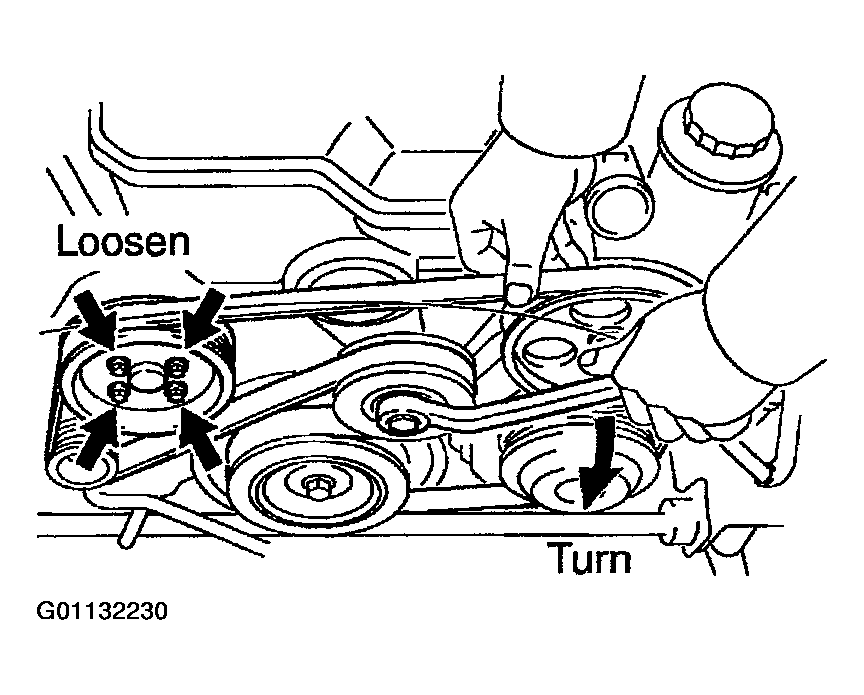

Fig 1: Removing 4 Nuts And Water Pump Pulley
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TIMING BELT AND IDLER PULLEY (See TIMING BELT )
REMOVE WATER BYPASS OUTLET AND NO.1 WATER BYPASS PIPE
1. Remove the 2 bolts, water bypass outlet and No.1 water bypass pipe.
2. Remove the 3 O-rings from the water bypass outlet and No.1 water bypass pipe.

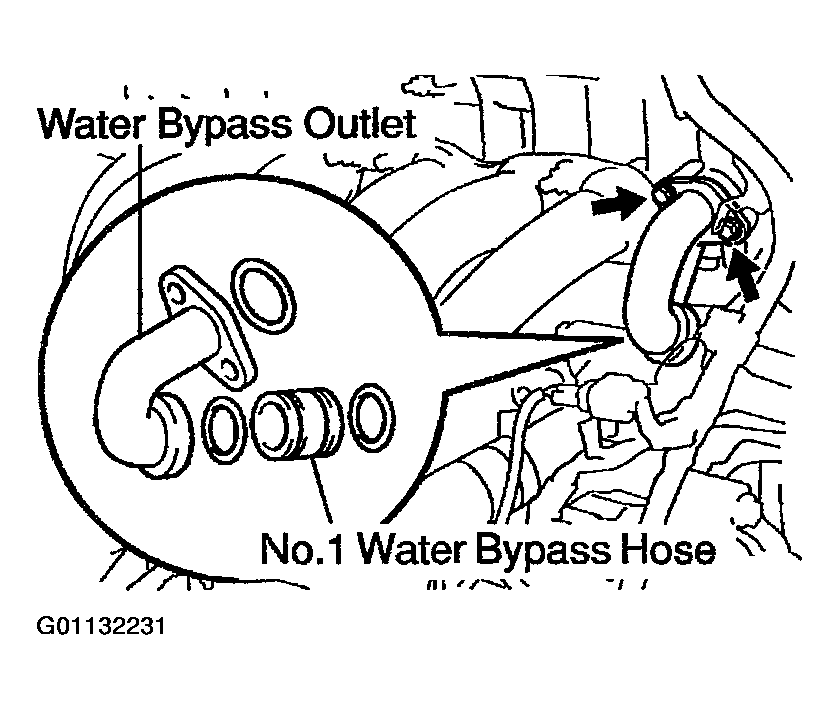

Fig 2: Removing Water Bypass Outlet And No.1 Water Bypass Pipe
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WATER INLET AND THERMOSTAT (See REMOVAL )
REMOVE WATER PUMP
1. Loosen the nut and remove the bolt, slide the generator away from the water pump.
2. Remove the bolt, and disconnect the clamp bracket (for engine wire).
3. Remove the bolt, and disconnect the connector bracket (for crankshaft position sensor connector).

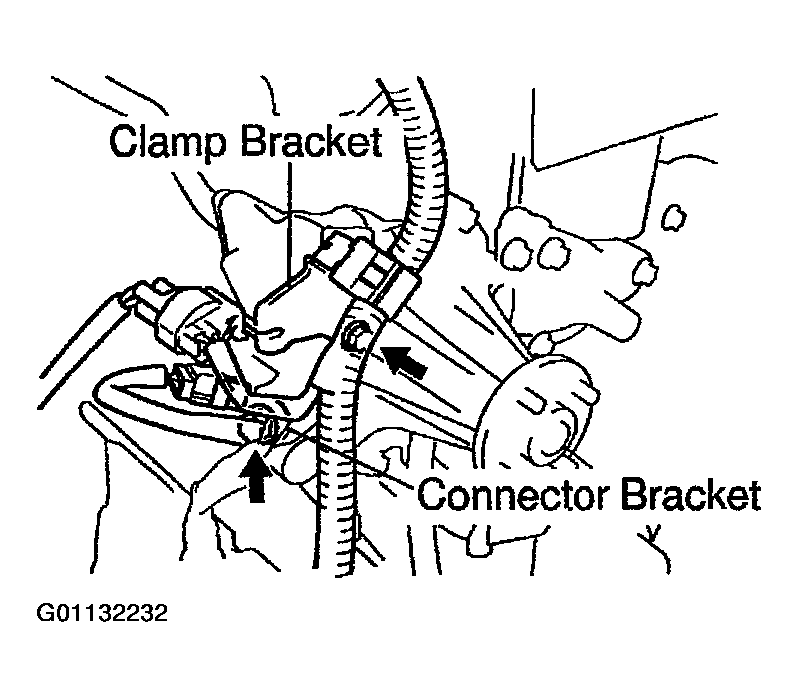

  Fig 3: Removing Clamp And Connector Brackets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 nuts, and disconnect the No.2 water bypass pipe from the water pump

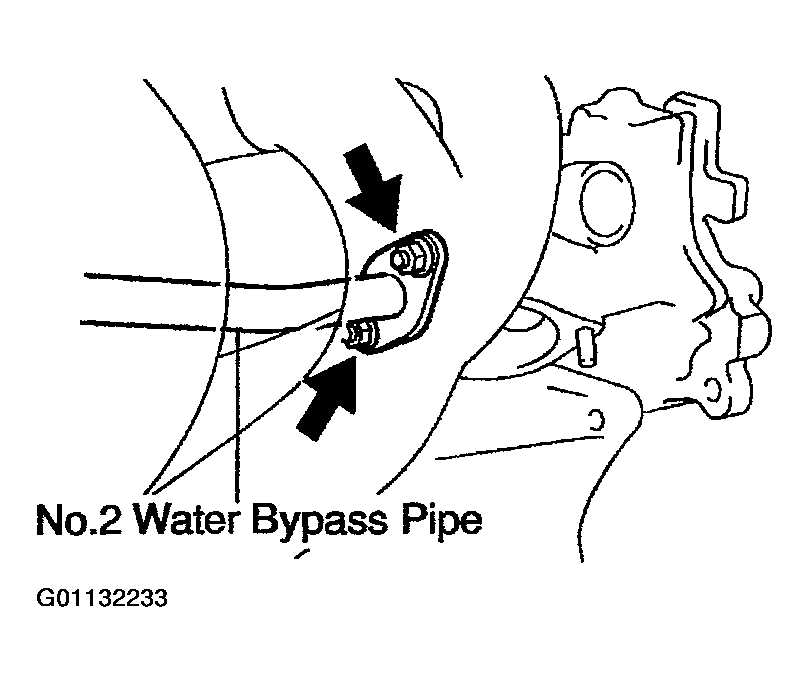

  Fig 4: Removing 2 Nuts And Disconnect No.2 Water Bypass Pipe From Water Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 6 bolts, water pump and gasket.
6. Remove the drain hose.

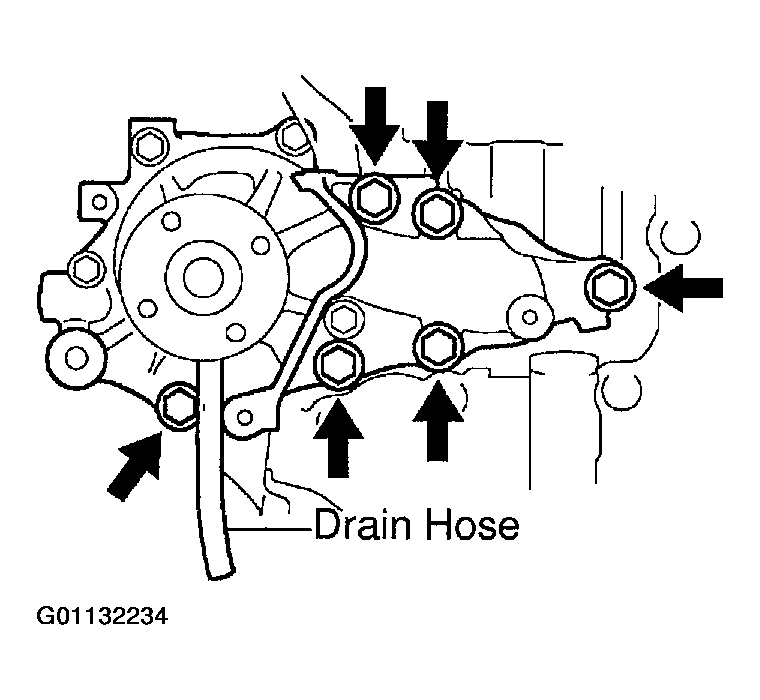

  Fig 5: Removing 6 Bolts And Drain Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove the O-ring from the cylinder block.
