Section 124 (Water Pump): Components

WARNING: This page is about a different car, the 2002 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

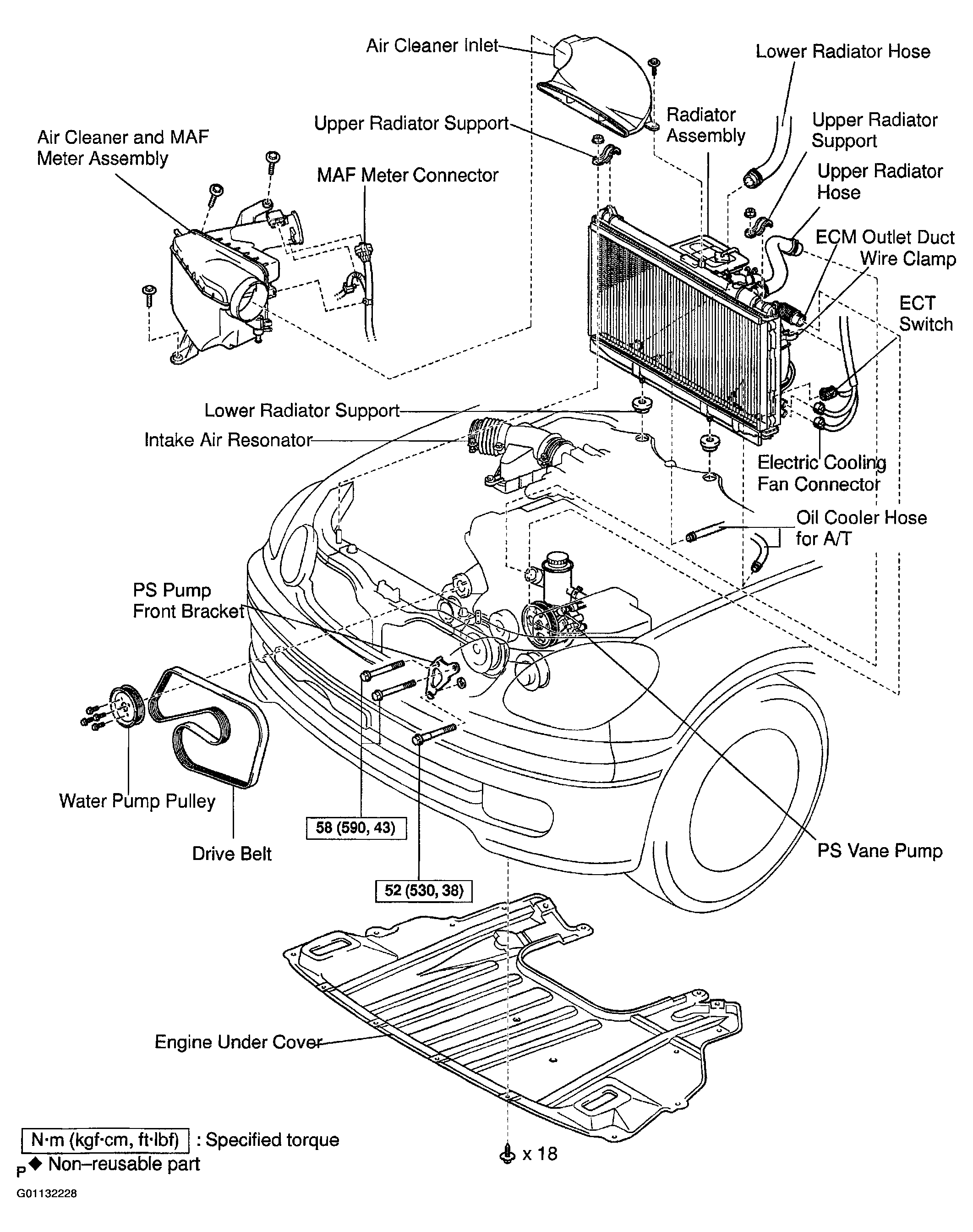

Fig 1: Identifying Water Pump Related Components
G01132228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

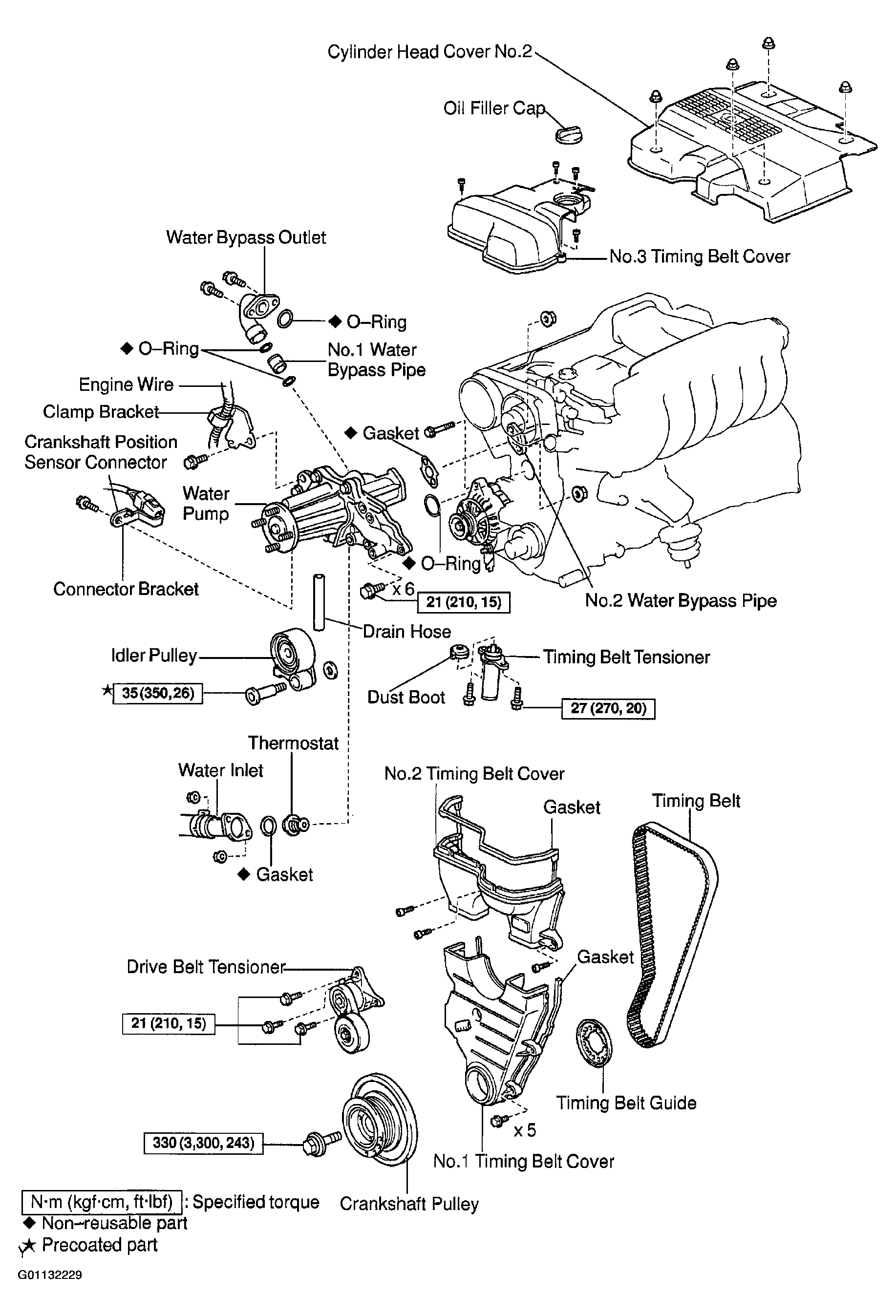

Fig 2: Identifying Water Pump And Related Components
G01132229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
