Pattern select switch circuit: Wiring Diagram

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

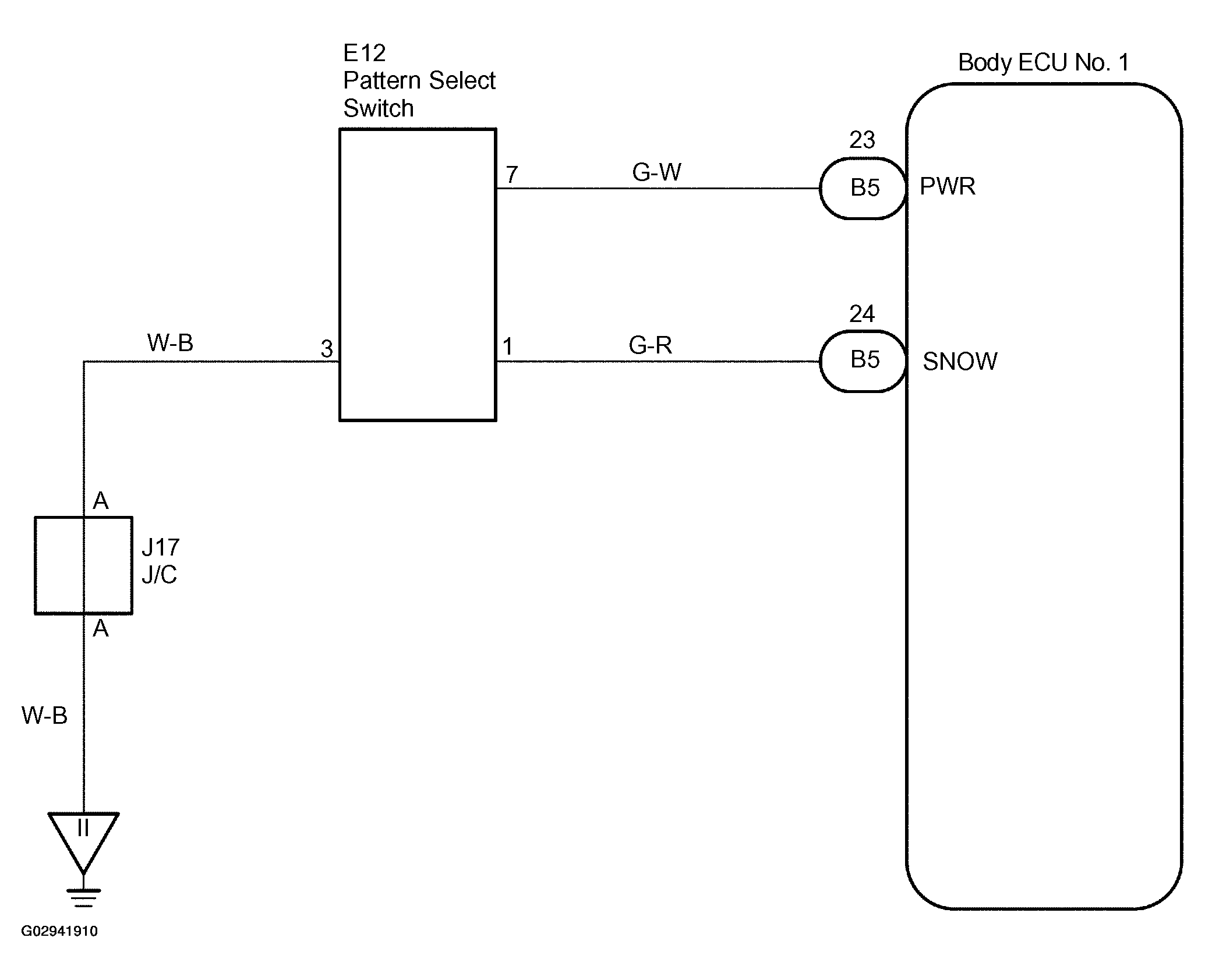

Fig 1: Pattern Select Switch Circuit Diagram
G02941910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
