Section 382 (Sliding Roof): Removal

WARNING: This page is about a different car, the 2004 Lexus GS 430 and 2004 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR SEAT CUSHION (See  REMOVAL  )
  2. REMOVE REAR SEATBACK (See  REMOVAL  )
  3. REMOVE FRONT DOOR INSIDE SCUFF PLATES
  4. REMOVE REAR DOOR INSIDE SCUFF PLATES
  5. REMOVE REAR SEAT SIDE GARNISHES
  6. REMOVE FRONT DOOR OPENING TRIMS
  7. REMOVE REAR DOOR OPENING TRIMS
  8. REMOVE REAR PERSONAL LIGHTS
  9. REMOVE ASSIST GRIPS
  10. REMOVE SUN VISORS
  11. REMOVE INNER REAR VIEW MIRROR COVER
  12. REMOVE MAP LAMP ASSEMBLY
    1. Using a screwdriver, remove the lens and cover.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 4 screws and map lamp assembly.
    3. Disconnect the connectors.

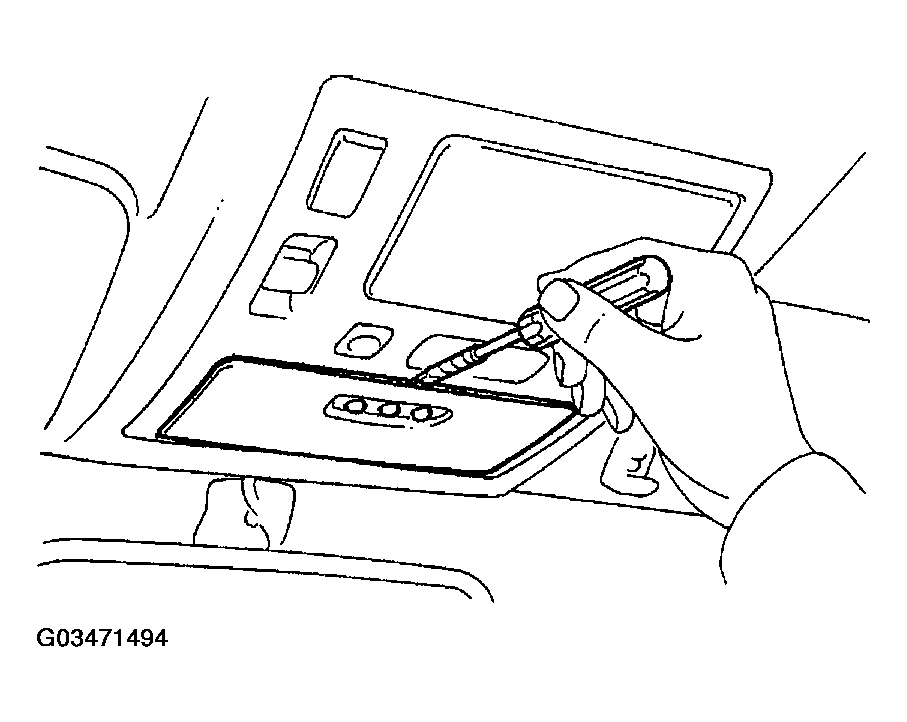

      Fig 1: Removing Map Lamp Assembly
      G03471494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FRONT PILLAR GARNISH
    1. Using a screwdriver, open the cover.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the bolt.
    3. Remove the front pillar garnish and cover.
    4. Use the same manner described above to the other side.

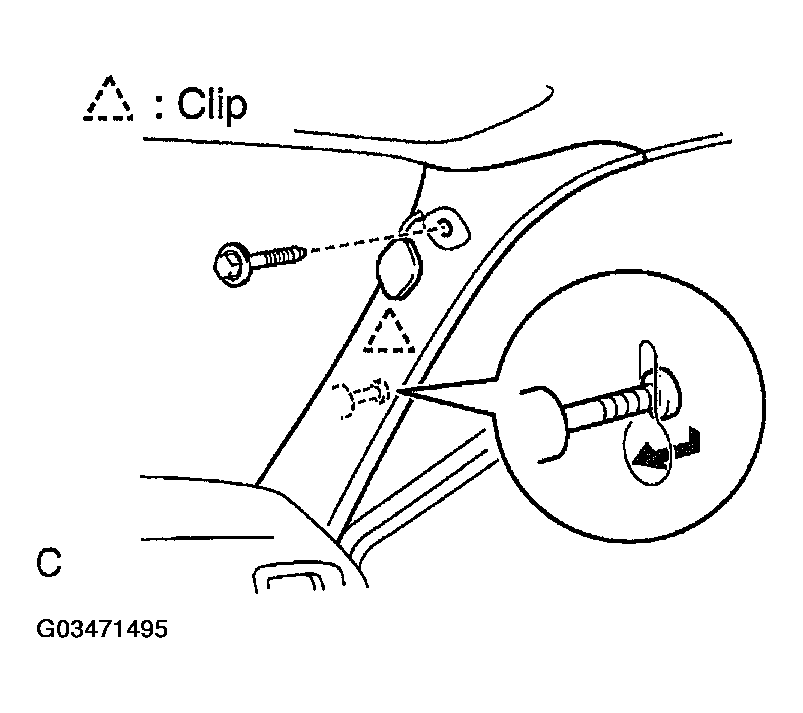

    Fig 2: Removing Front Pillar Garnish
    G03471495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE CENTER PILLAR LOWER GARNISH
    1. Using a screwdriver, remove the center pillar lower garnish.

      HINT:

      Tape the screwdriver tip before use.

    2. Use the same manner described above to the other side.

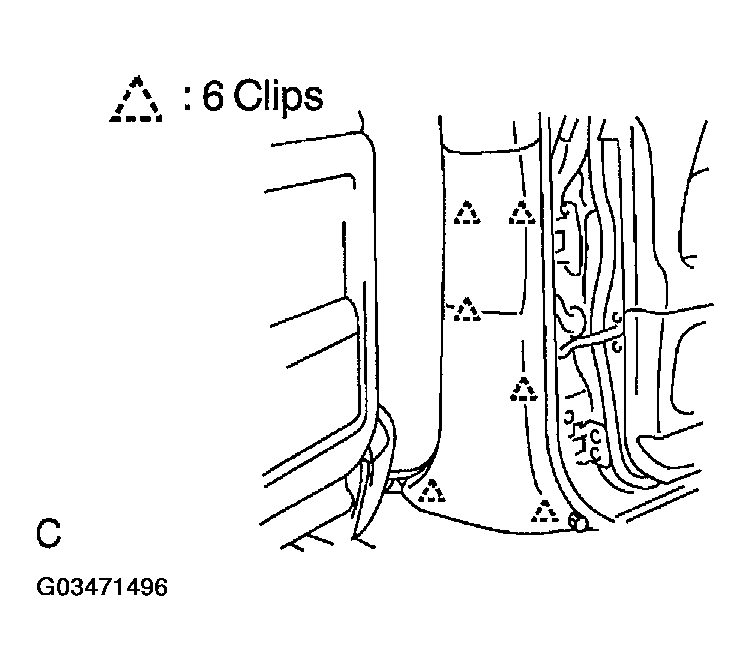

    Fig 3: Removing Center Pillar Lower Garnish
    G03471496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE CENTER PILLAR UPPER GARNISH
    1. Remove the 2 screws.
    2. Using a screwdriver, remove the center pillar upper garnish.

      HINT:

      Tape the screwdriver tip before use.

    3. Use the same manner described above to the other side.

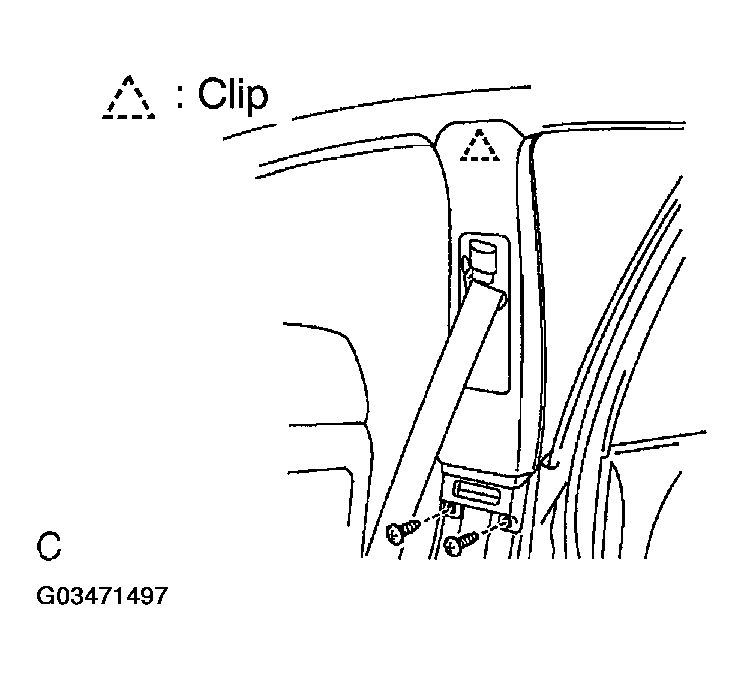

    Fig 4: Removing Center Pillar Upper Garnish
    G03471497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE ROOF SIDE INNER GARNISH
    1. Using a screwdriver, remove the roof side inner garnish.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 3 screws and roof side inner garnish spacer.
    3. Use the same manner described above to the other side.
  17. REMOVE HOLDERS

    Remove the 2 screws and 2 holders

  18. REMOVE ROOF HEADLINING
    1. w/ Sliding roof:

      Remove the opening trim.

    2. Release the 3 clips and fastener tapes to remove the roof headlining.
    3. Remove the 6 screws and 2 side rail spacers.

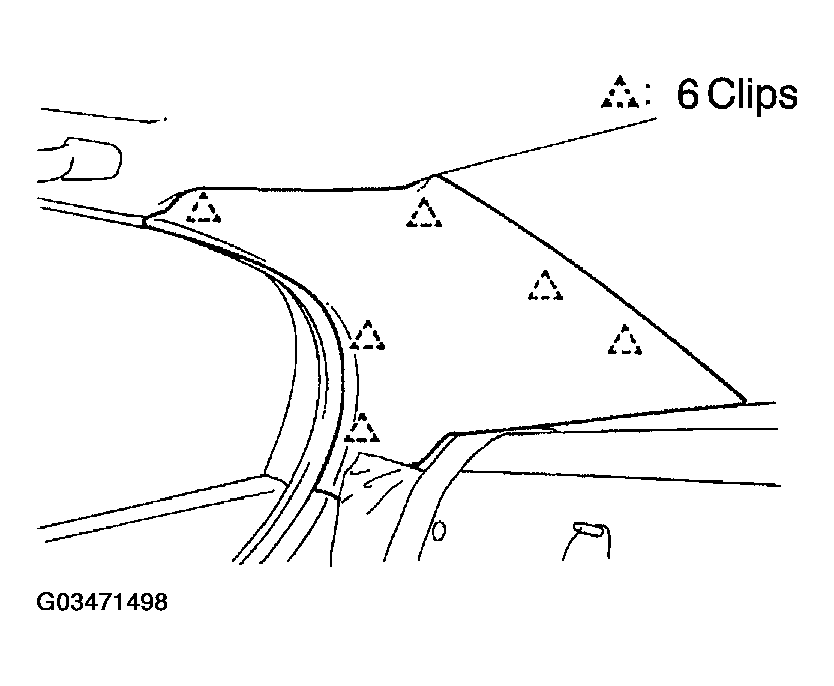

    Fig 5: Removing Roof Headlining
    G03471498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE SLIDING ROOF GARNISHES

    Using a screwdriver, remove the sliding roof garnishes.

    HINT:

    • Tape the screwdriver tip before use.
    • Be careful not to scratch the glass or garnishes.

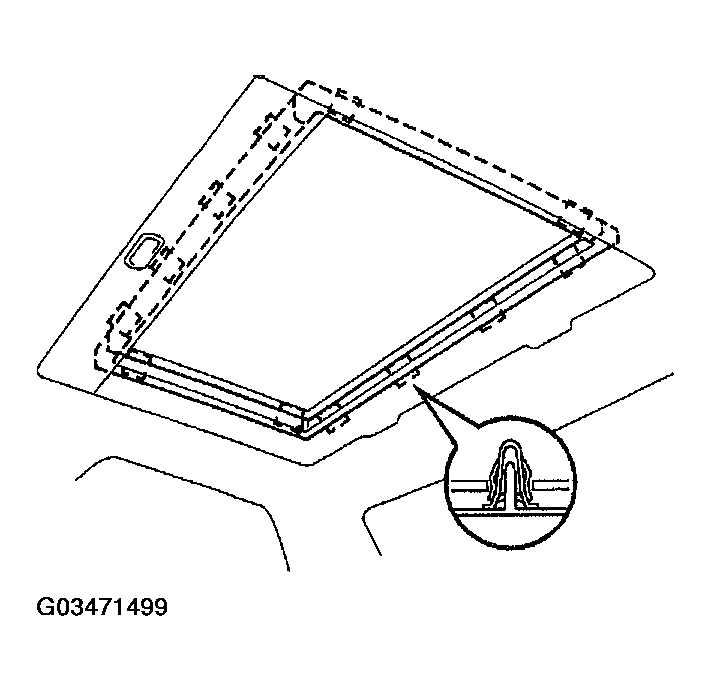

    Fig 6: Removing Sliding Roof Garnishes
    G03471499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE SLIDING ROOF GLASS
    1. Remove the 4 nuts.
    2. Pull the glass upward to remove it.

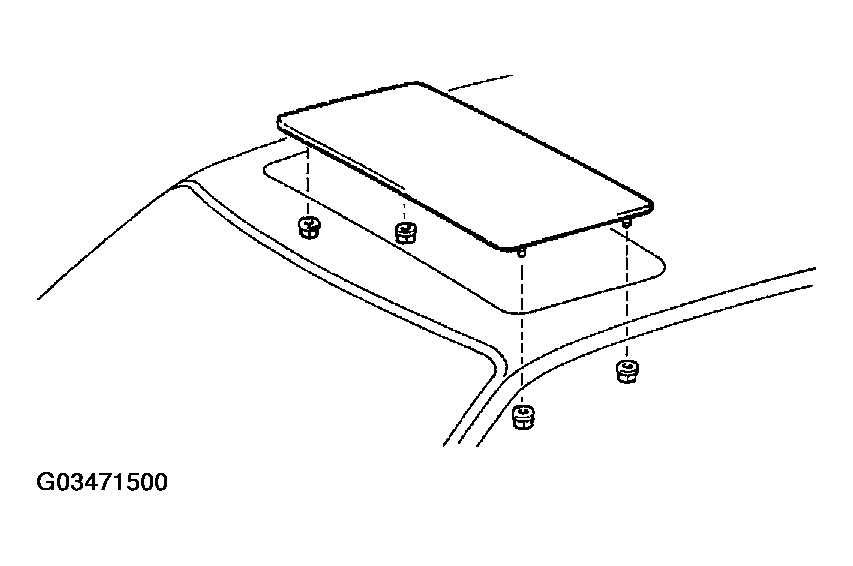

    Fig 7: Removing Sliding Roof Glass
    G03471500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE SLIDING ROOF HOUSING
    1. Disconnect the connector.
    2. Remove the 4 clips and disconnect the 4 drain hoses from the housing.
    3. Remove the 12 bolts and 6 brackets.
    4. Remove the 6 nuts and sliding roof housing from the body.

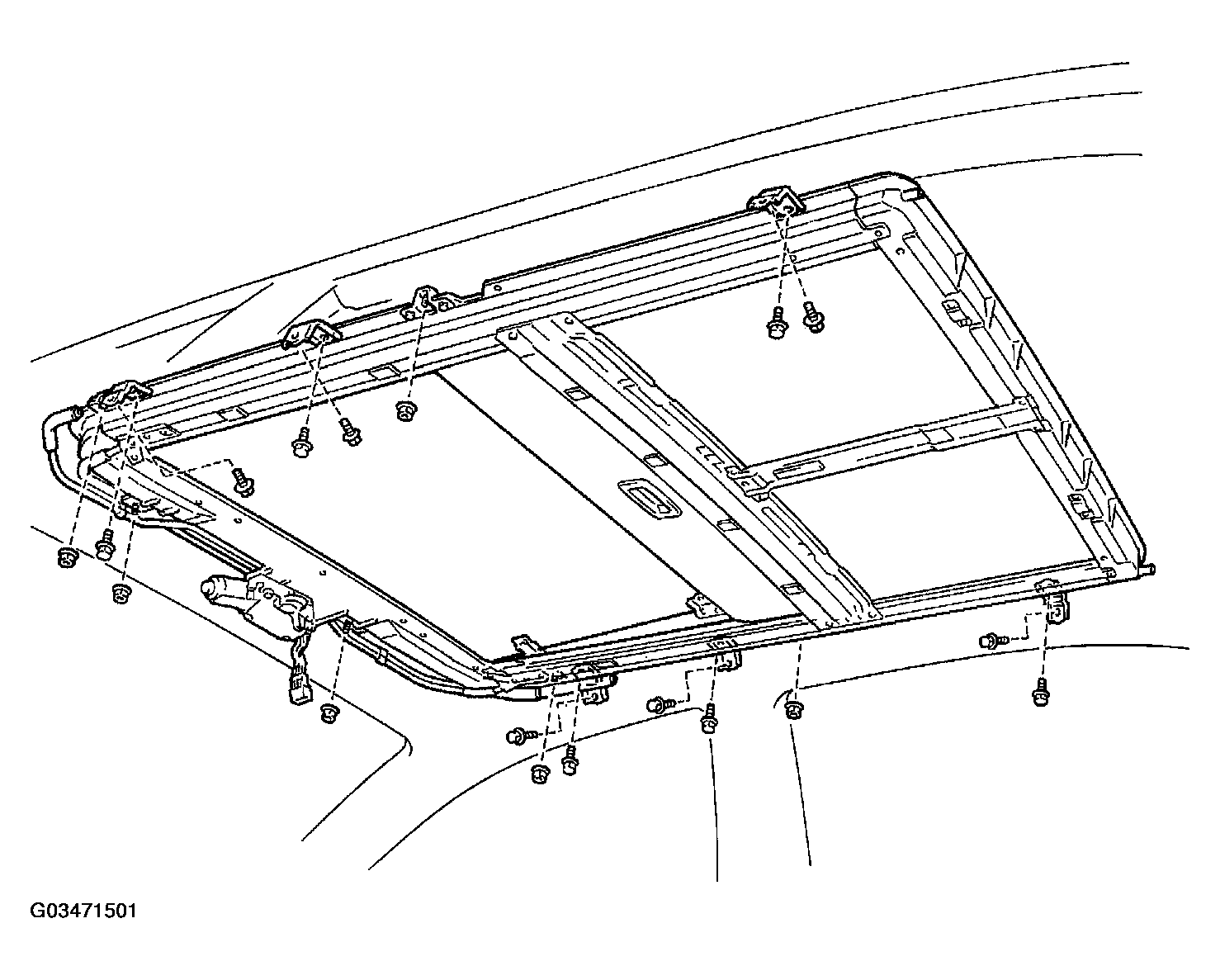

    Fig 8: Removing Sliding Roof Housing
    G03471501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
