On-Vehicle Inspection
WARNING: This page is about a different car, the 2003 Lexus GS 430 and 2003 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
INSPECT SLIDING ROOF GLASS ALIGNMENT
- Start the engine and check the operation time of the sliding roof.
- Operation time: Approx. 6 secs.
- Check for abnormal noise or binding during operation.
- With the sliding roof fully closed, check for water leakage.

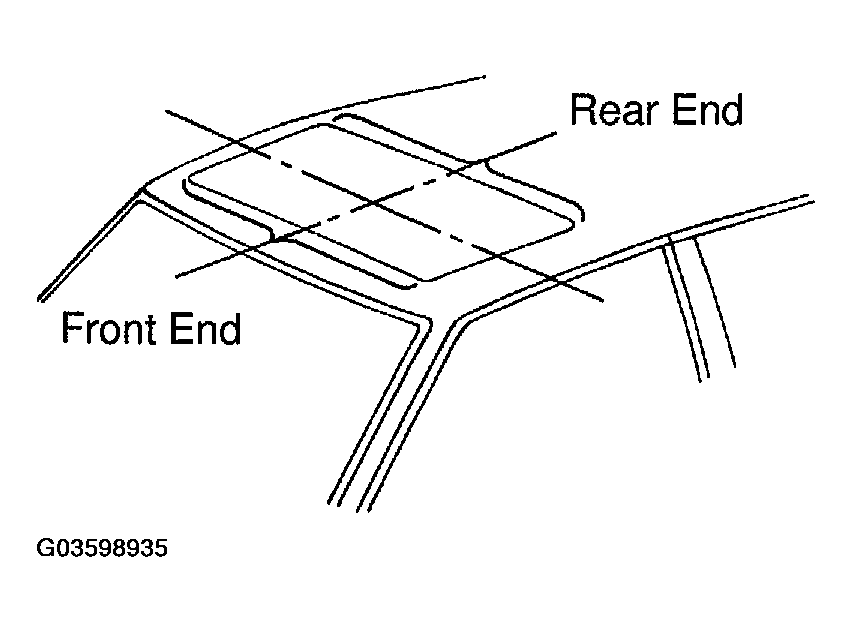

- Check for a difference in level between the sliding roof weatherstrip and roof panel.
- Front end : -0.5 +/-1.5 mm (-0.020 +/- 0.059 in.)
- Center line: 0 +/- 1.5 mm (0 +/- 0.059 in.)
- Rear end: 0.5 +/- 1.5 mm (0.020 +/- 0.059 in.)
