Cd Auto Changer

WARNING: This page is about a different car, the 2004 Lexus GS 430 and 2004 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

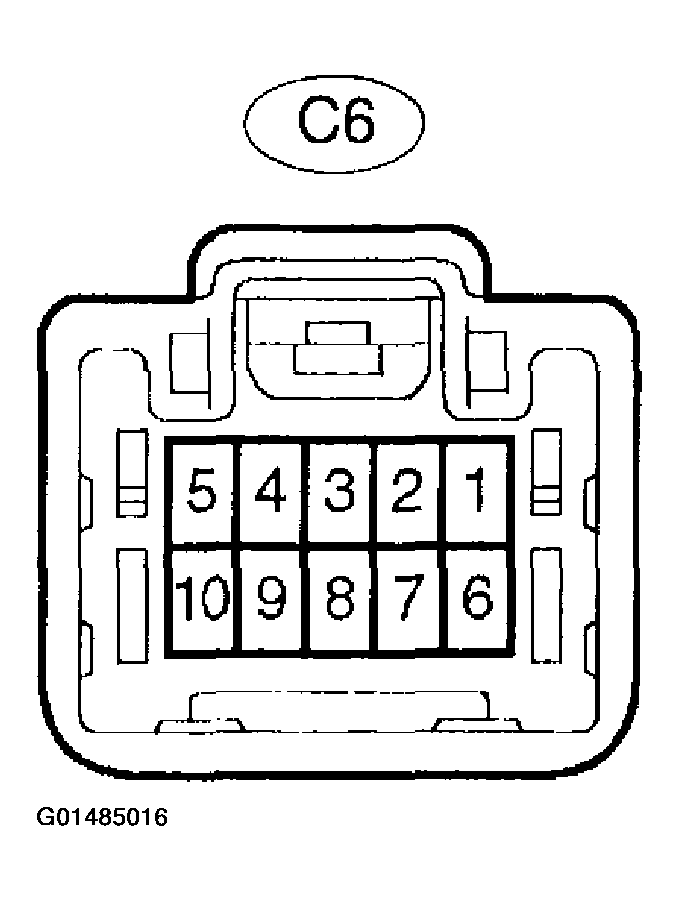

Fig 1: Identifying CD Auto Changer Connector
G01485016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

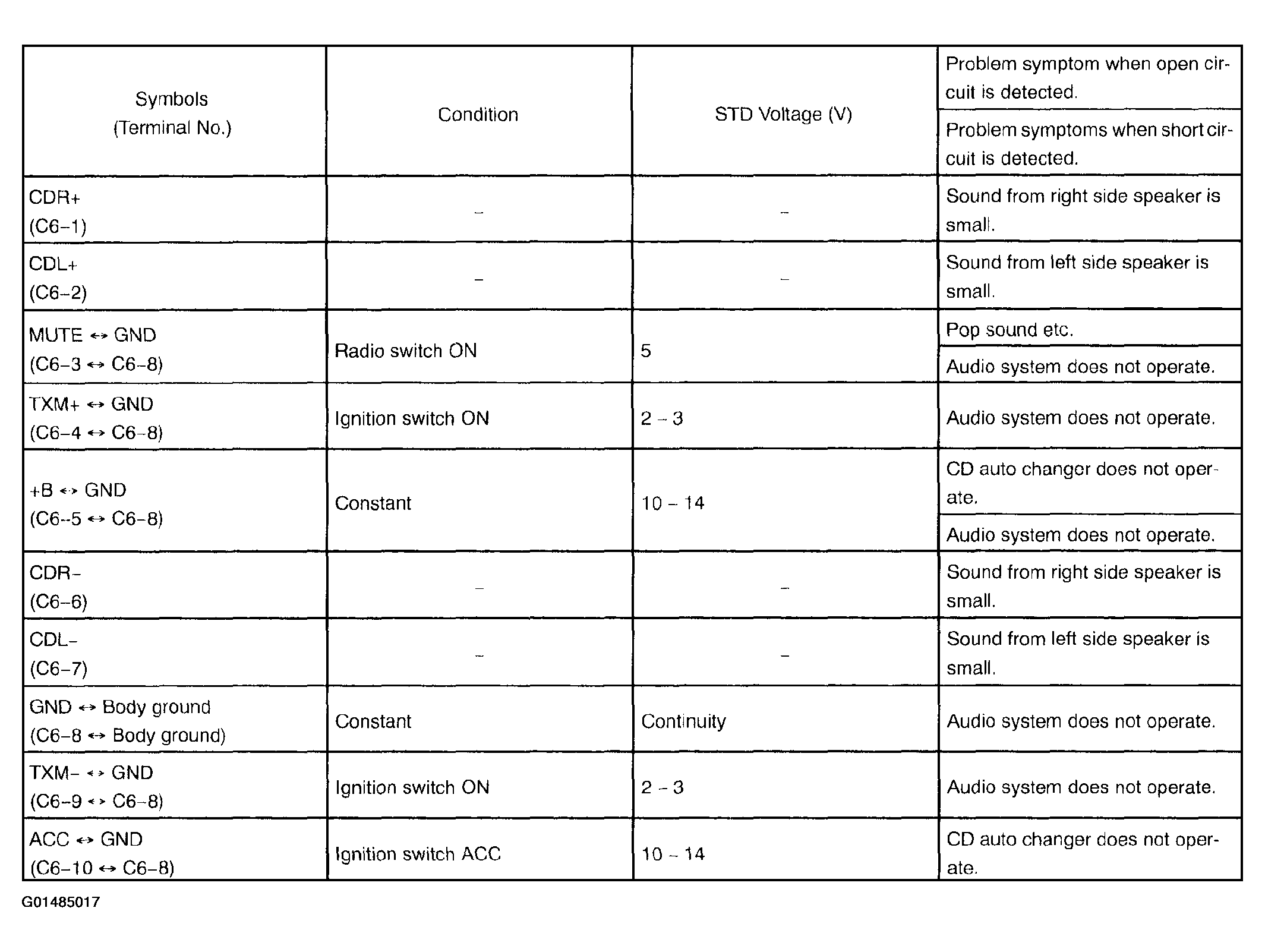

Fig 2: CD Auto Changer Problem Symptom Table
G01485017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
