Ignition Switch

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal.
  2. Remove the instrument panel finish lower panel left side. See Fig 1.
      NOTE: Place tape on screwdriver tip to avoid damage.
    1. Using a screwdriver, open the cover of the instrument panel finish lower panel left side.
    2. Remove the bolt "D" and screws "H". See Fig 1.
    3. Disconnect the hood lock control cable.
    4. Disengage the 4 clips. See Fig 1 and remove the instrument panel finish lower panel left side.
    5. Disconnect the connectors.
  3. Remove ignition switch.
    1. Disconnect the ignition switch connector and unlock switch connector.
    2. Remove clamp.
    3. Remove the 2 screws and ignition switch.

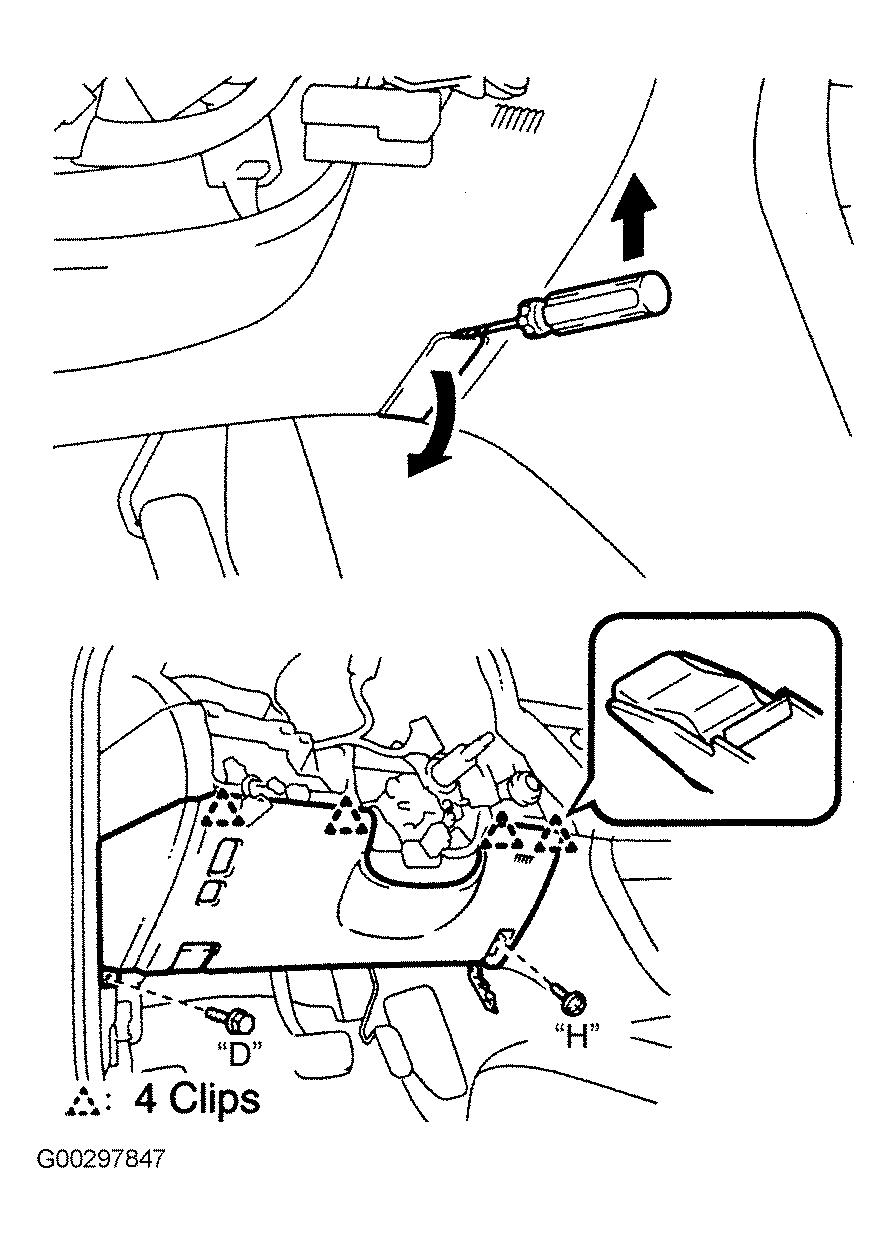

Fig 1: Indentifying Instrument Panel Finish Lower Panel Left Side Components
G00297847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
