Installation - Upper

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place upper trim panel into position.

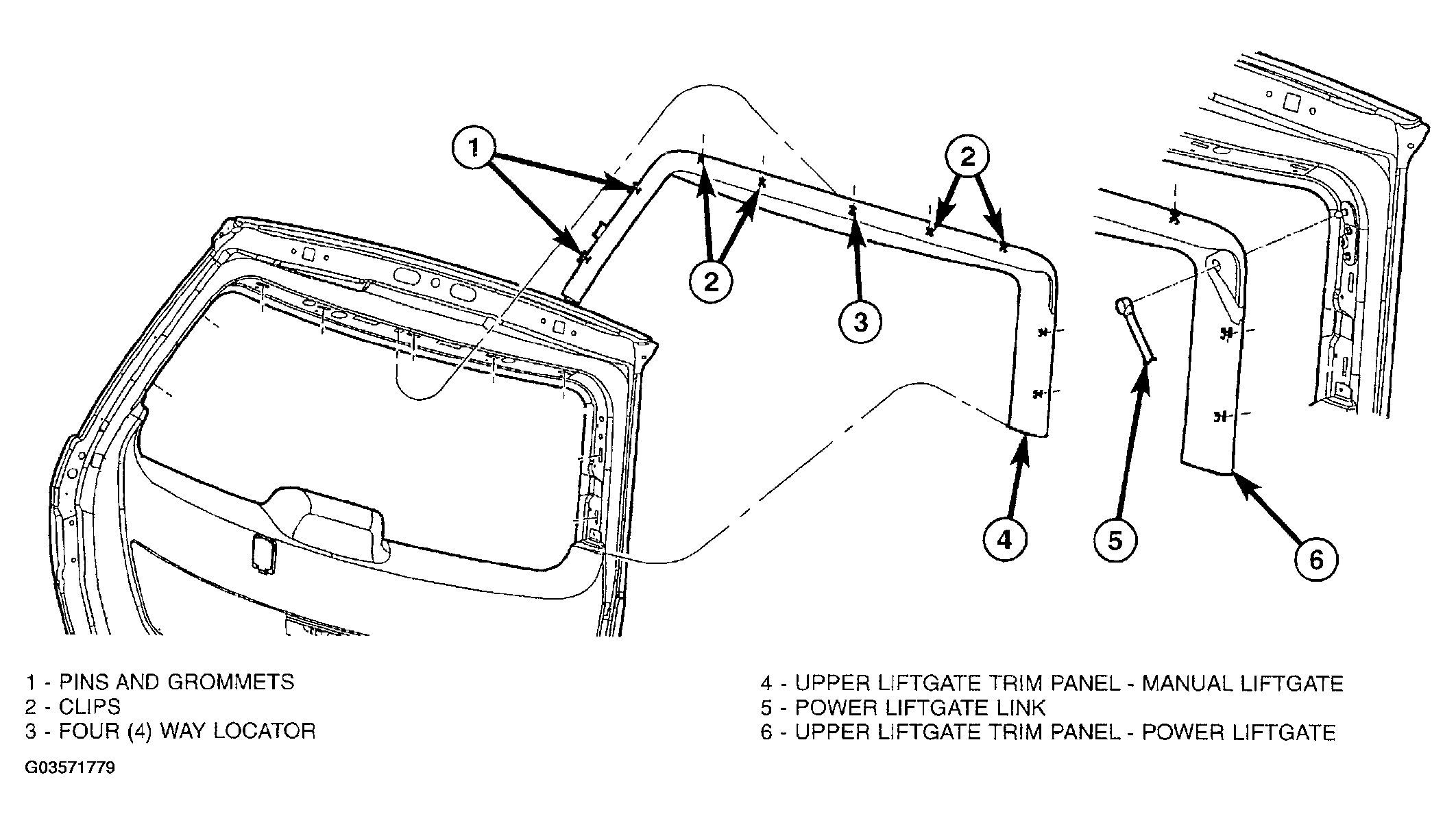

  2. Press the upper trim panel locking tabs into the locked position (Figure ).
  3. Connect power liftgate link onto ball head bracket, if equipped. (Refer to POWER LIFTGATE SYSTEM ).
  4. Close liftgate.
