Speed Sensor (U151E): Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE BATTERY
  2. REMOVE AIR CLEANER ASSEMBLY
  3. REMOVE AIR CLEANER HOSE NO. 1
  4. REMOVE AIR CLEANER BRACKET
  5. REMOVE AIR CLEANER INLET NO. 1
  6. REMOVE SPEED SENSOR (NT SENSOR)
    1. Disconnect the speed sensor connector.
    2. Remove the bolt and speed sensor.

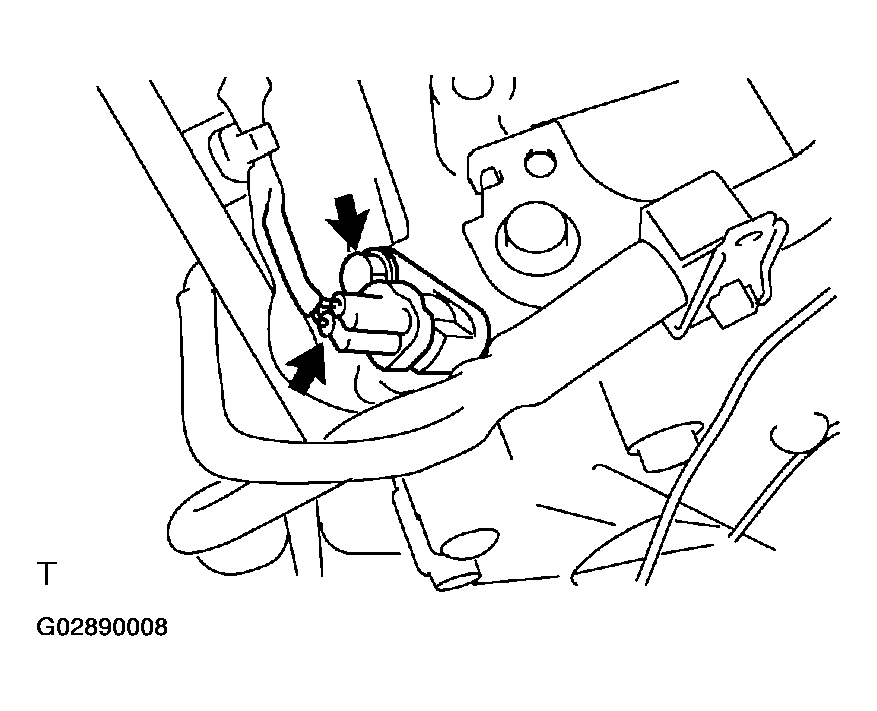

      Fig 1: Removing Speed Sensor (NT)
      G02890008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SPEED SENSOR (NC SENSOR)
    1. Disconnect the speed sensor connector.
    2. Remove the bolt and speed sensor.

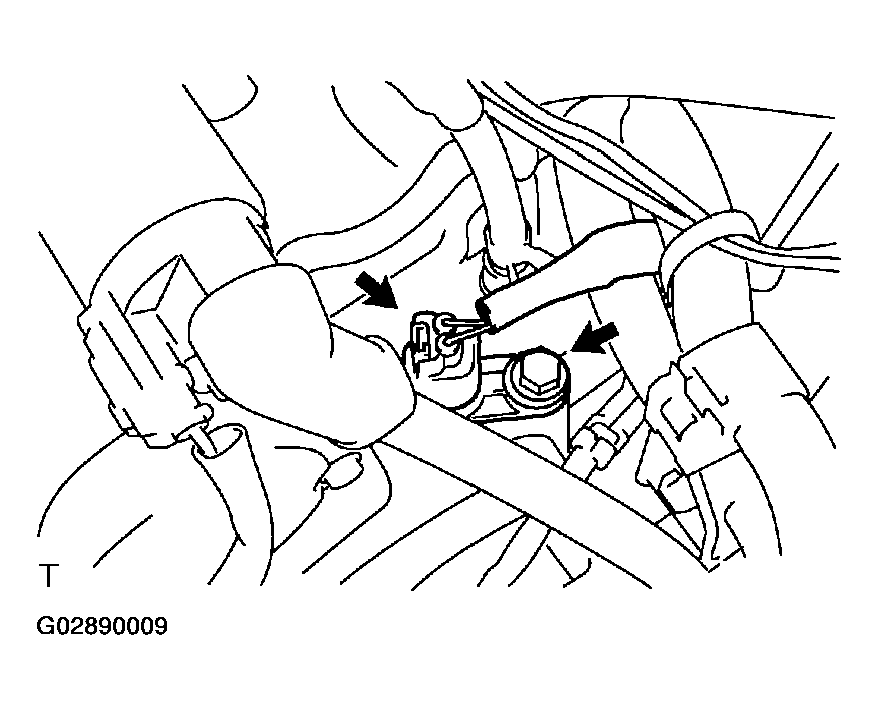

      Fig 2: Removing Speed Sensor (NC)
      G02890009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL SPEED SENSOR (NC SENSOR)
    1. Coat O-ring with ATF.
    2. Install the speed sensor with the bolt.

      Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)

      HINT:

      Make sure the name of manufacturer.

    3. Connect the speed sensor connector.
      Fig 3: Installing Speed Sensor (NC)
      G02890010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL SPEED SENSOR (NT SENSOR)
    1. Coat O-ring with ATF.
    2. Install the speed sensor with the bolt.

      Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)

      HINT:

      Make sure the name of manufacturer.

    3. Connect the speed sensor connector.

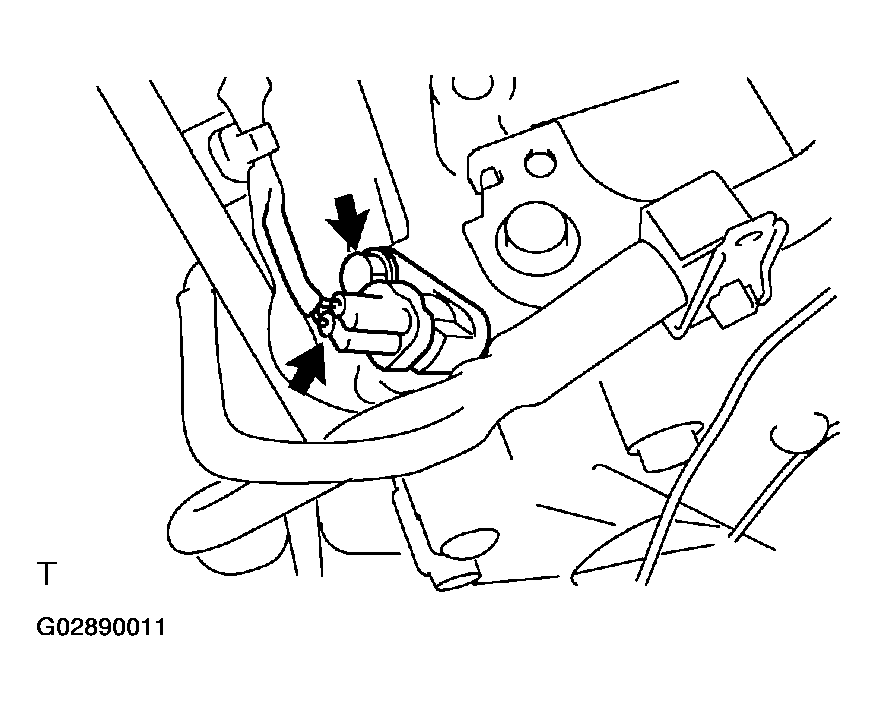

      Fig 4: Installing Speed Sensor (NT)
      G02890011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL AIR CLEANER INLET NO. 1
  11. INSTALL AIR CLEANER BRACKET
  12. INSTALL AIR CLEANER HOSE NO. 1
  13. INSTALL AIR CLEANER ASSEMBLY
  14. INSTALL BATTERY
