Floor Shift Cable Transmission Control Shift: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY (See  REPLACEMENT  )
  2. REMOVE AIR CONDITIONING RADIATOR ASSEMBLY (See  OVERHAUL  )
  3. REMOVE AIR BAG SENSOR ASSEMBLY CENTER (See  AIR BAG SENSOR ASSEMBLY  )
  4. REMOVE BATTERY
  5. REMOVE AIR CLEANER ASSEMBLY
  6. REMOVE AIR CLEANER HOSE NO. 1
  7. REMOVE INTAKE AIR RESONATOR SUB-ASSEMBLY
  8. DISCONNECT SHIFT CABLE GROMMET RETAINER NO. 2
    1. Remove the 2 bolts and disconnect shift cable grommet retainer No. 2.

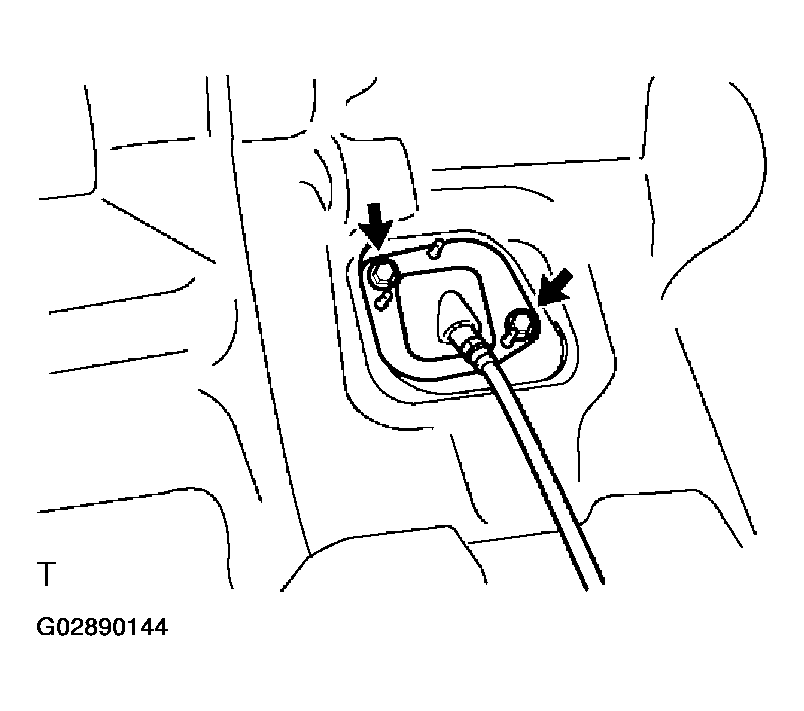

      Fig 1: Removing Bolts And Disconnect Shift Cable Grommet Retainer
      G02890144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
    1. Remove the nut from the control shaft lever.
    2. Disconnect the control cable from the control shaft lever.
      Fig 2: Removing Nut From Control Shaft Lever
      G02890145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the clip and disconnect the control cable from the control cable bracket.

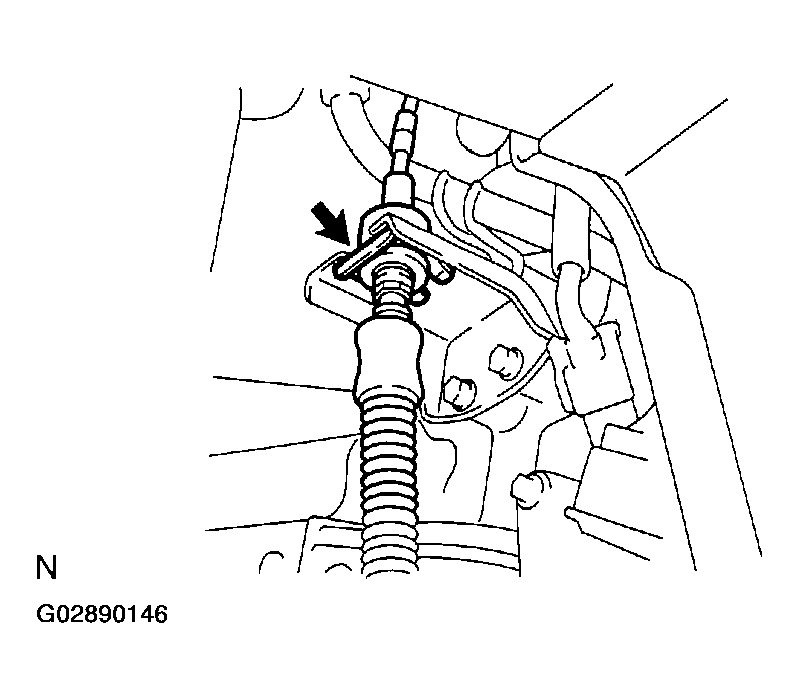

      Fig 3: Removing Clip And Disconnect Control Cable From Control Cable Bracket
      G02890146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the control cable from the control cable clamp.

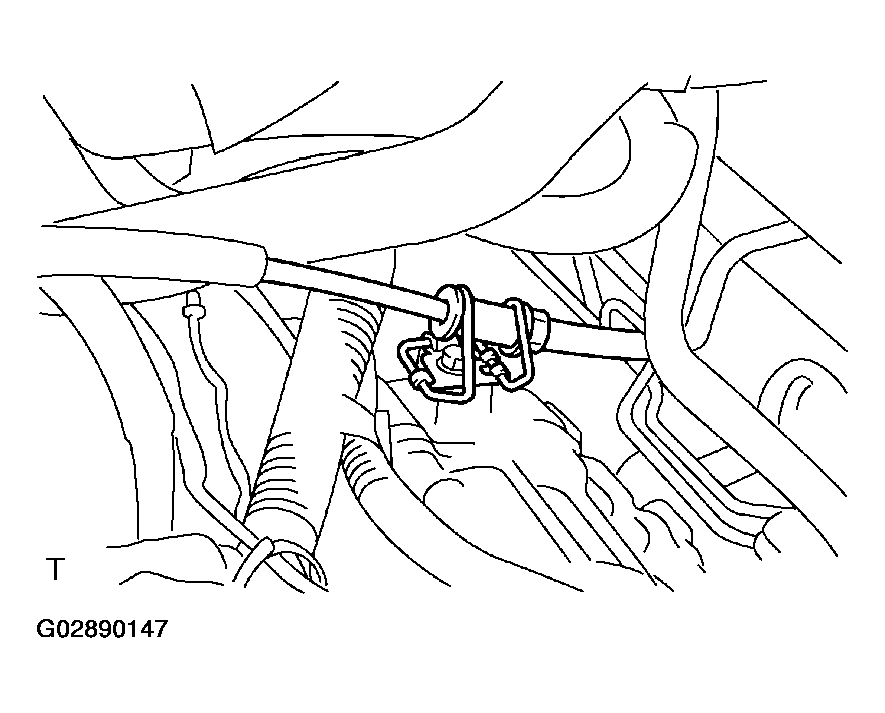

      Fig 4: Disconnecting Control Cable From Control Cable Clamp
      G02890147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the floor shift cable from the transmission floor shift assembly.
    6. Pull out the control cable from the body.
    7. Remove the shift cable grommet retainer No. 2.

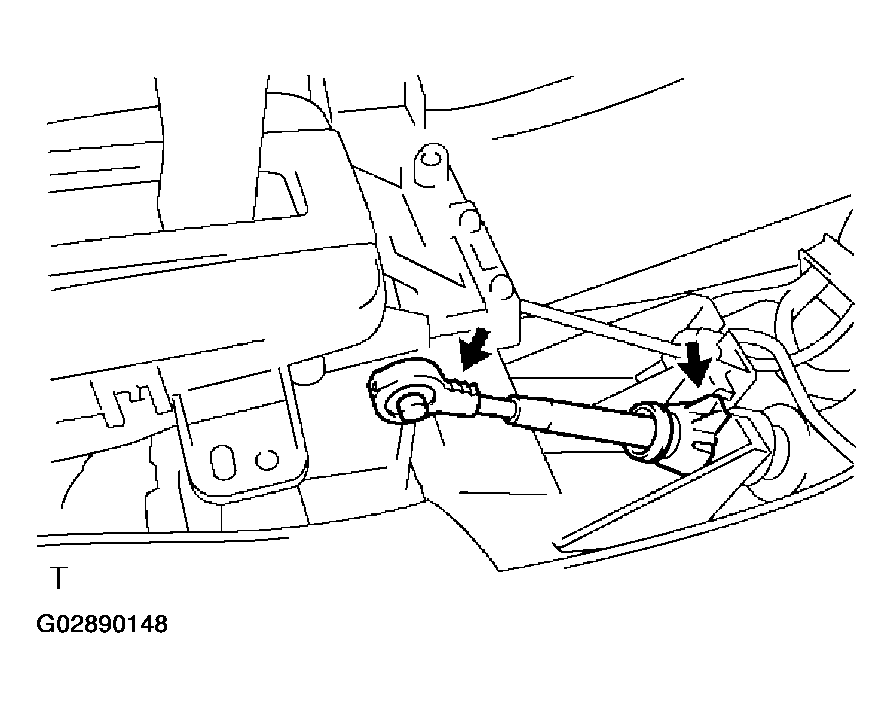

      Fig 5: Disconnecting Floor Shift Cable From Transmission Floor Shift Assembly
      G02890148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
    1. Put in the control cable to the body.
    2. Install the shift cable grommet retainer No. 2 to the floor shift cable.
    3. Install the floor shift cable as shown in the illustration.
      Fig 6: Installing Floor Shift Cable Transmission Control Shift
      G02890149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • Install it with the uneven surface facing to up.
      • Fit the claws securely.
    4. Connect the control cable to the control cable clamp.
      Fig 7: Connecting Control Cable To Control Cable Clamp
      G02890150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the control cable and a new clip to the bracket.

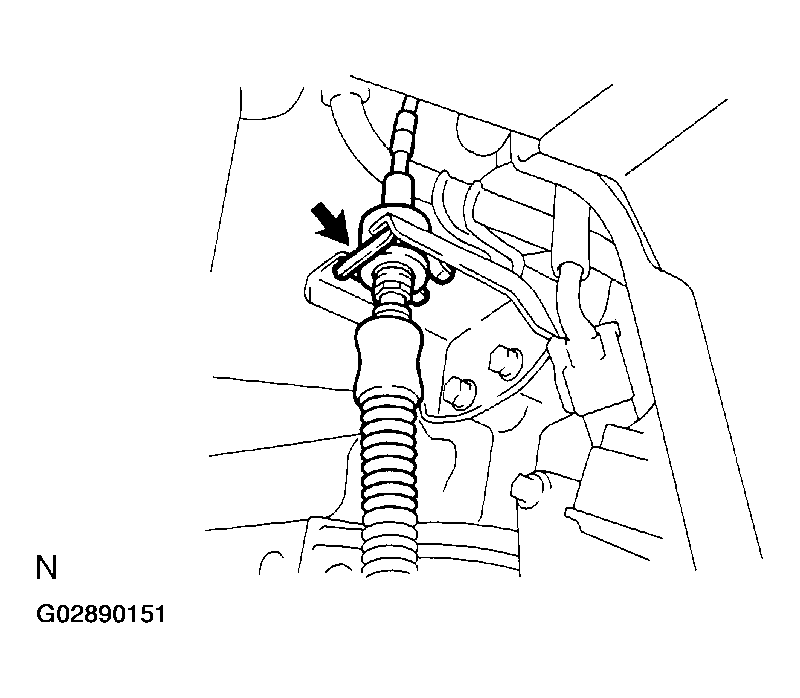

      Fig 8: Installing Control Cable And A New Clip To Bracket
      G02890151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Temporarily install the control cable to the control shaft lever with nuts.

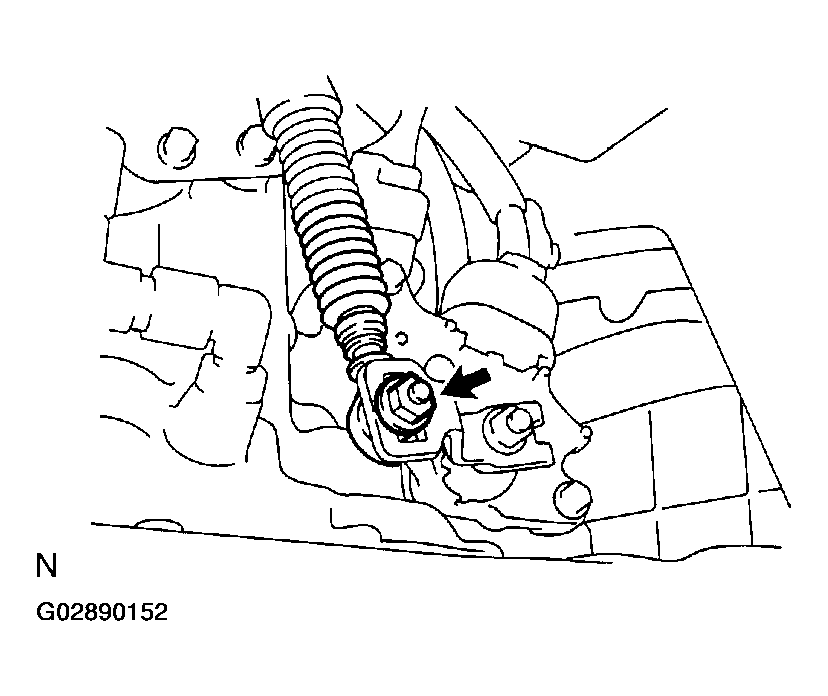

      Fig 9: Installing Control Cable To Control Shaft Lever With Nuts
      G02890152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL SHIFT CABLE GROMMET RETAINER NO. 2
    1. Install the shift cable grommet retainer No. 2 with the 2 bolts.

      Torque: 4.9 N.m (50 kgf.cm, 43 in.lbf)

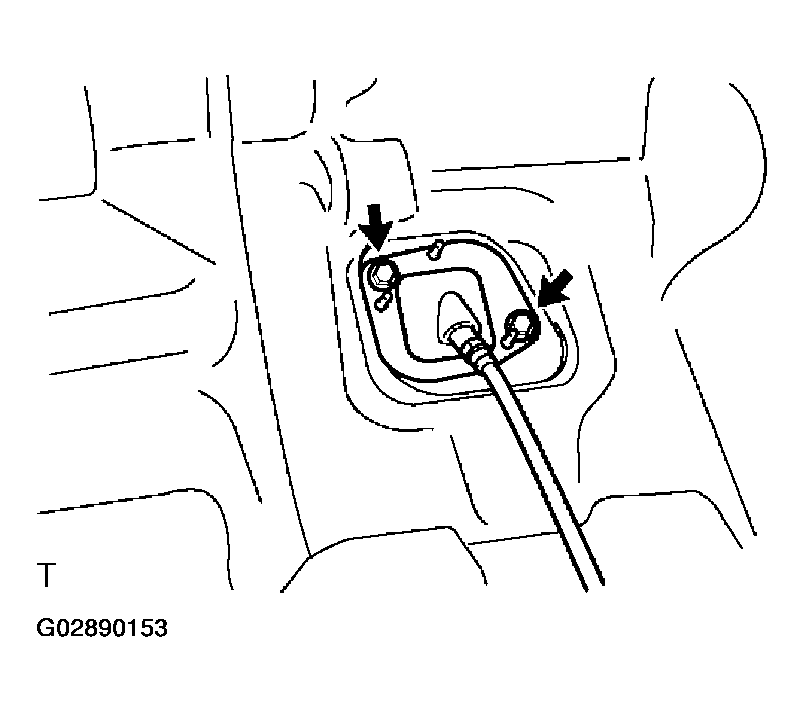

      Fig 10: Installing Shift Cable Grommet Retainer
      G02890153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL AIR BAG SENSOR ASSEMBLY CENTER (See  AIR BAG SENSOR ASSEMBLY  )
  13. INSTALL AIR CONDITIONING RADIATOR ASSEMBLY
  14. ADJUST SHIFT LEVER POSITION (See  ADJUSTMENT  )
  15. INSPECT SHIFT LEVER POSITION (See  ADJUSTMENT  )
  16. INSTALL INTAKE AIR RESONATOR SUB-ASSEMBLY
  17. INSTALL AIR CLEANER HOSE NO. 1
  18. INSTALL AIR CLEANER ASSEMBLY
  19. INSTALL BATTERY
