Wheel Speed Sensor (Front): Removal

Remove front wheel and front fender liner.
Disconnect speed sensor harness connector and clamp. See Fig 1.
Remove 2 clamp bolts (A, B) holding sensor harness and clamp from body and shock absorber. See Fig 2.
Remove bolt and wheel speed sensor. See Fig 3.

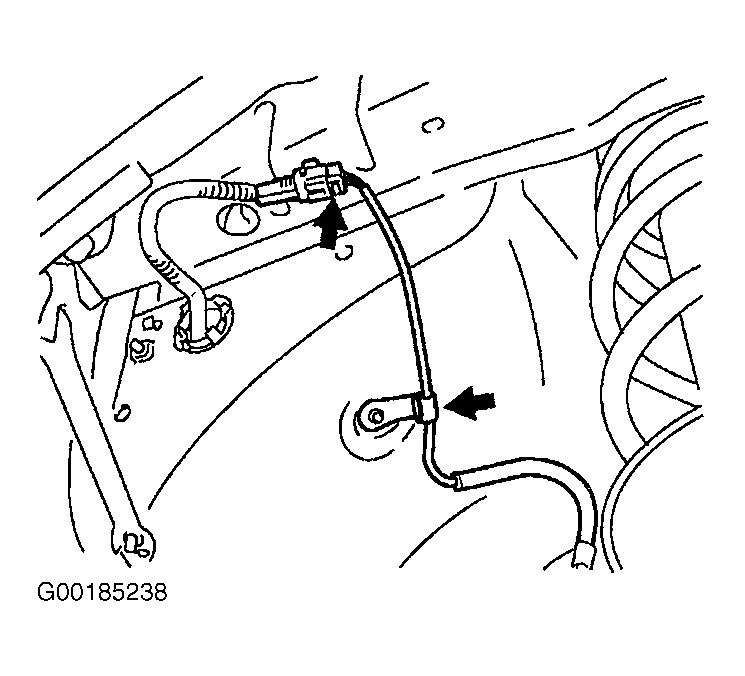

Fig 1: Disconnecting Front Speed Sensor Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

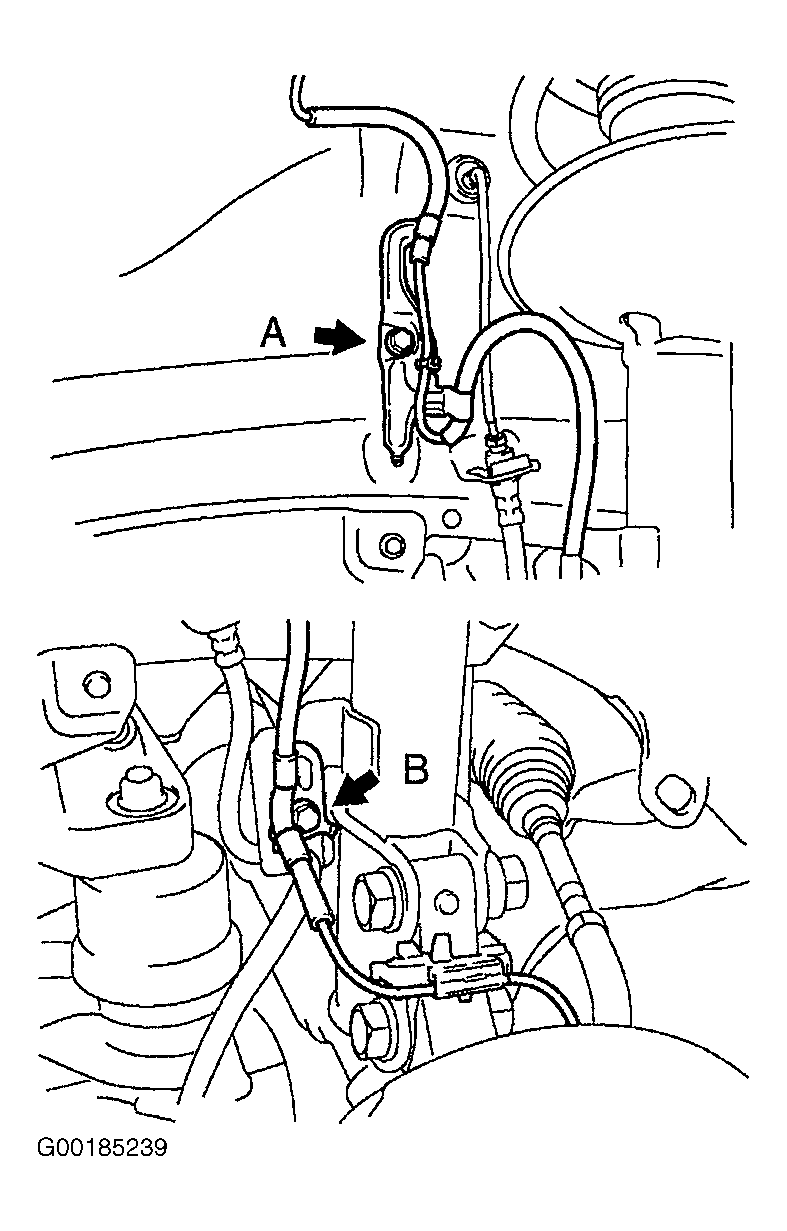

Fig 2: Locating Clamp Bolts

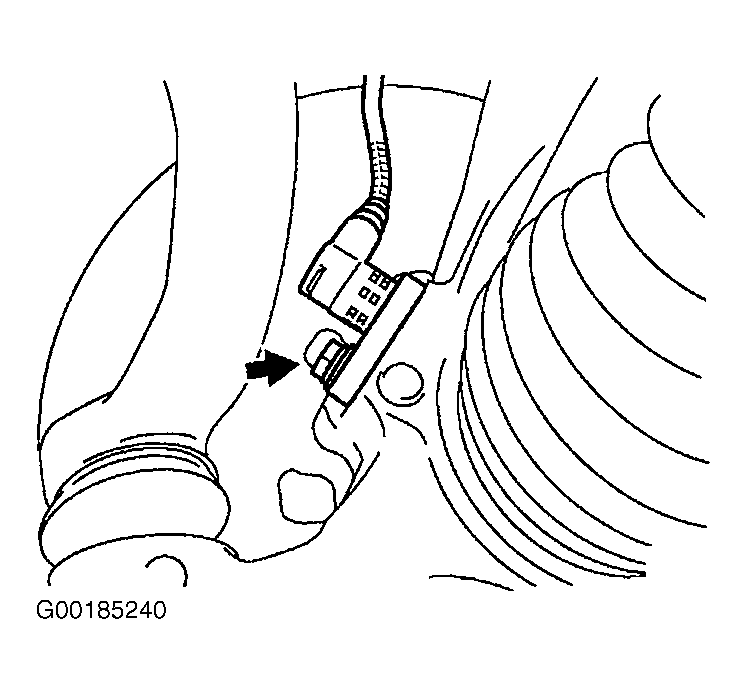

Fig 3: Removing Front Wheel Speed Sensor
