Pin Voltage Tests

For pin voltages of ABS/TRAC control module (or skid control ECU) see Fig 1-Fig 3 .

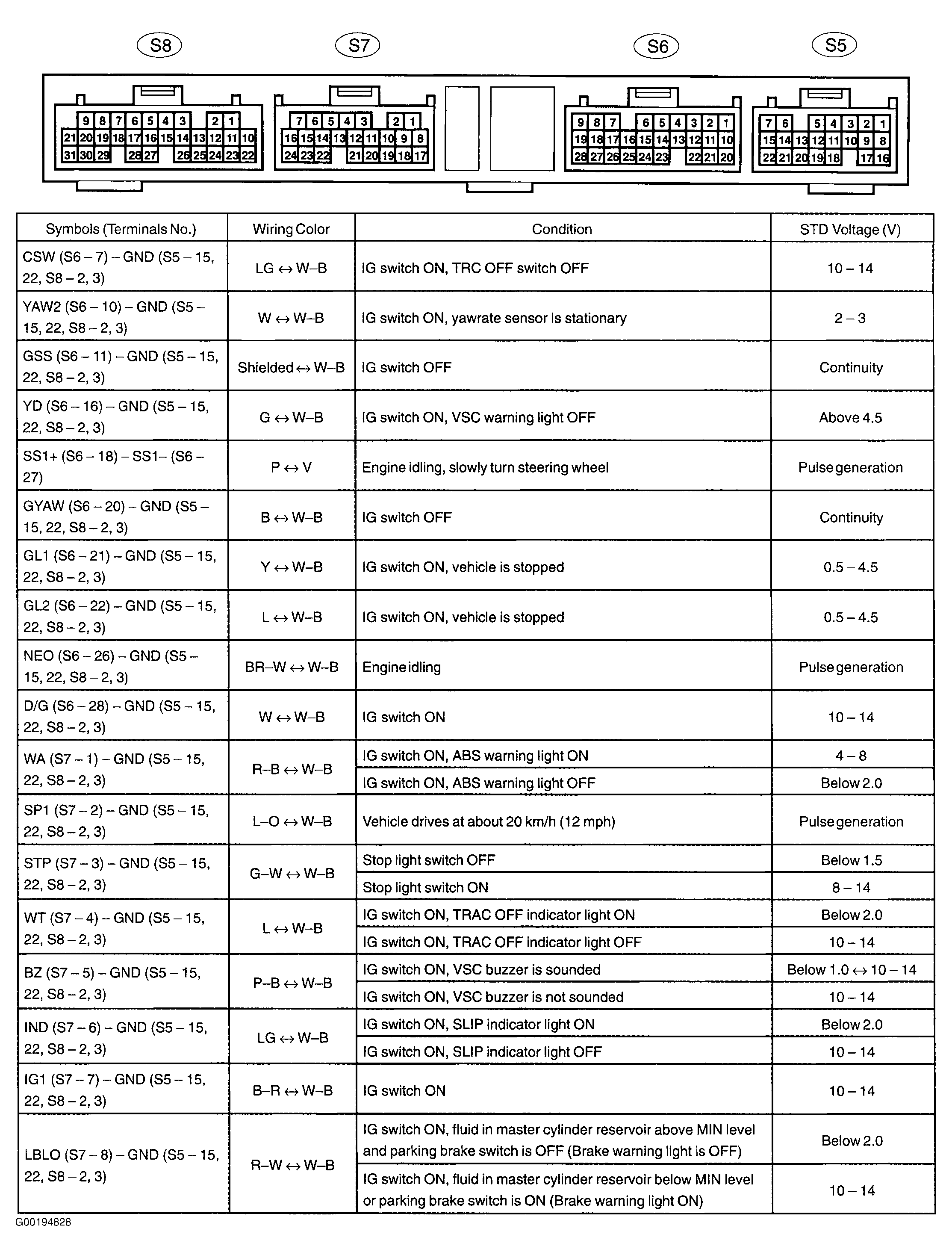

Fig 1: Identifying Pin Voltages Of ECU (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

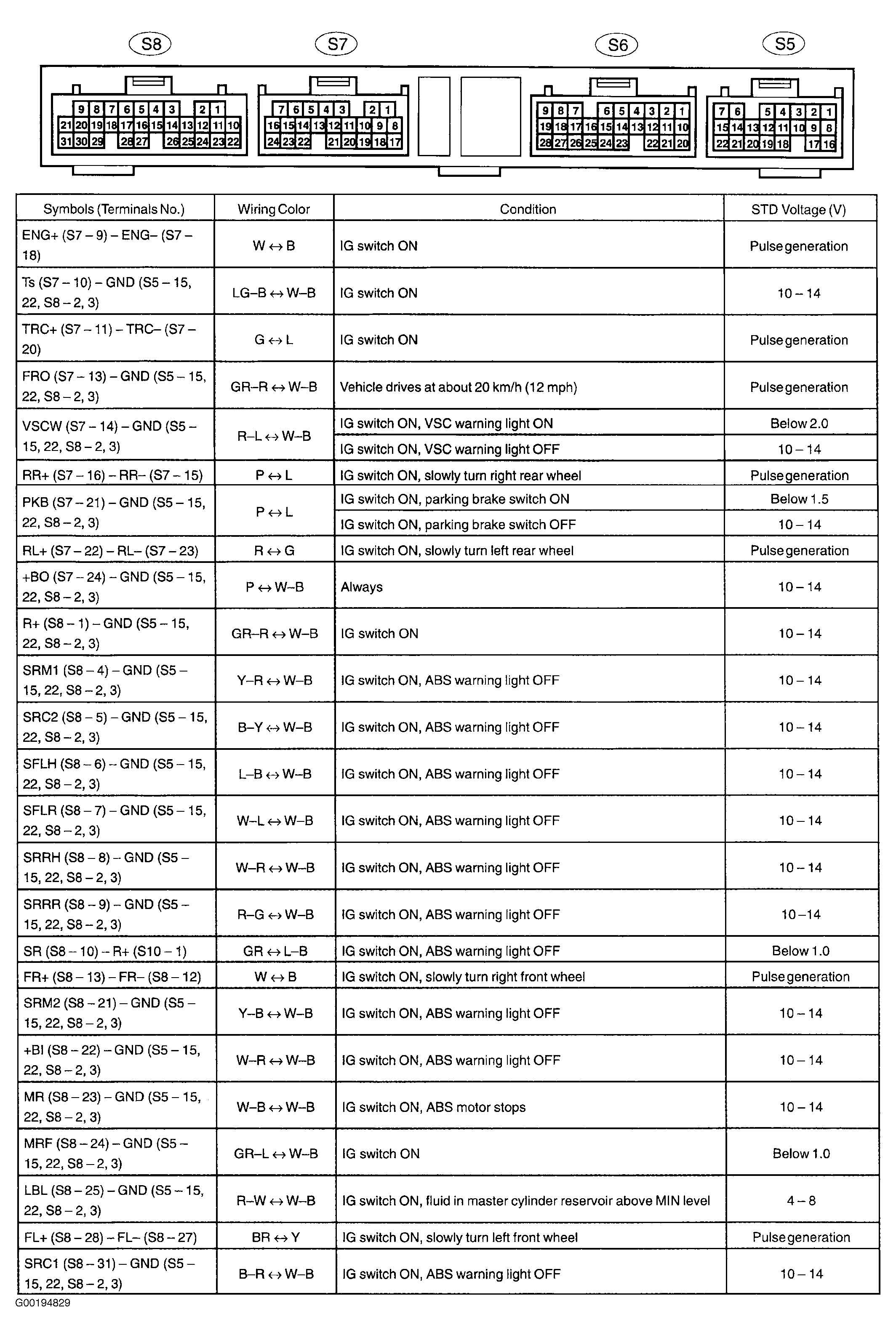

Fig 2: Identifying Pin Voltage Of ECU (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

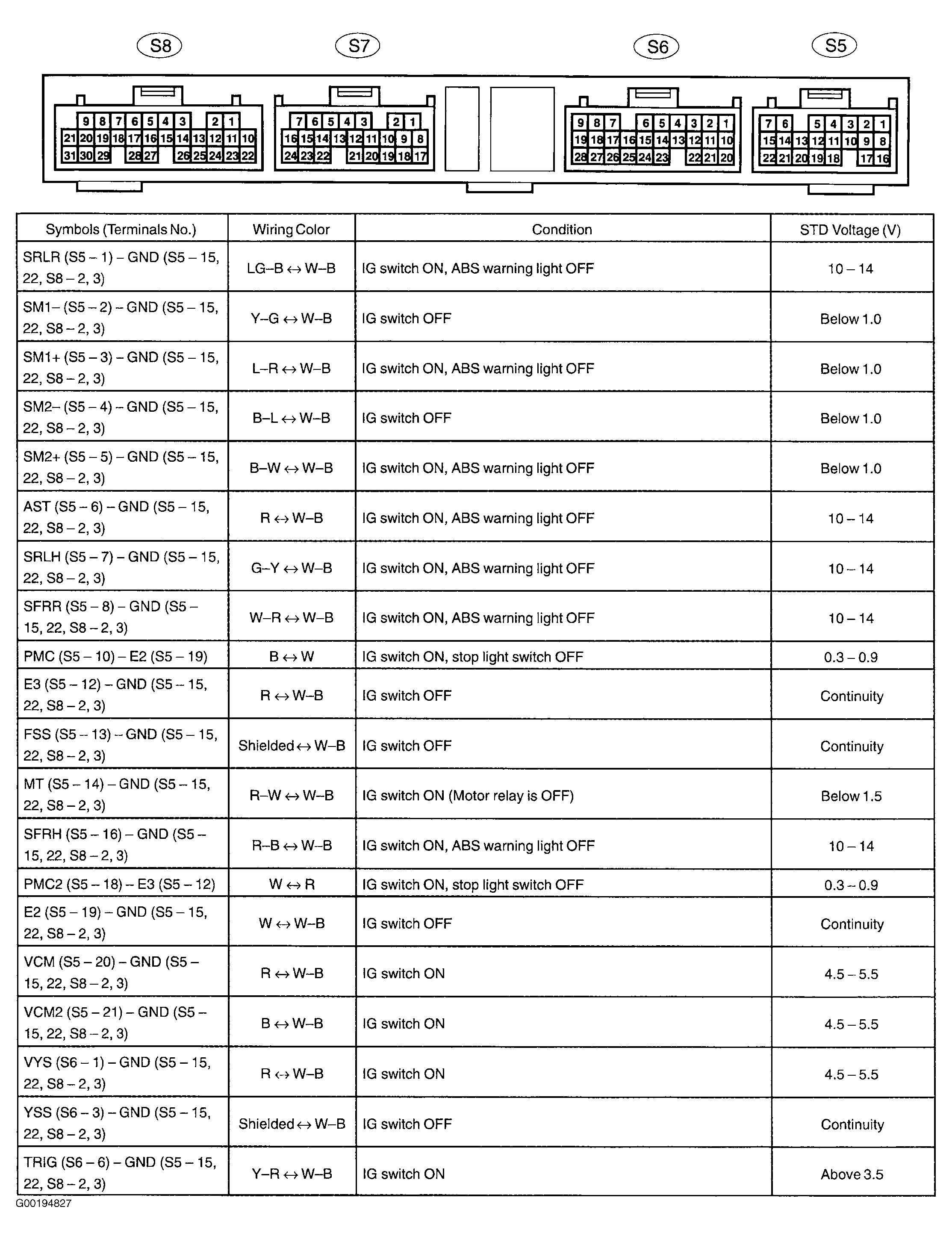

Fig 3: Identifying Pin Voltage Of ECU (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
