Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2.

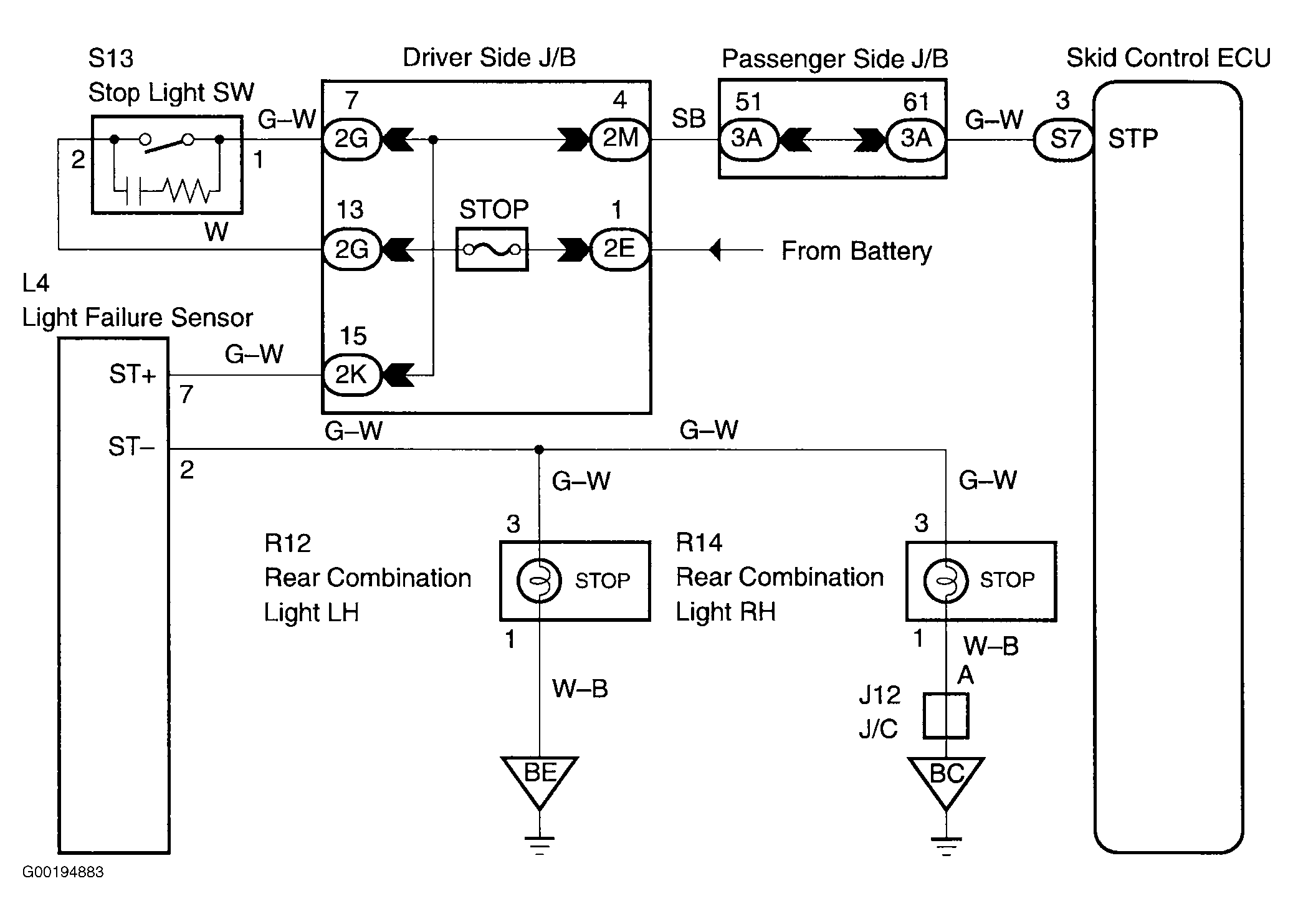

Fig 1: Wiring Diagram (Stop Light Switch Circuit)
G00194883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

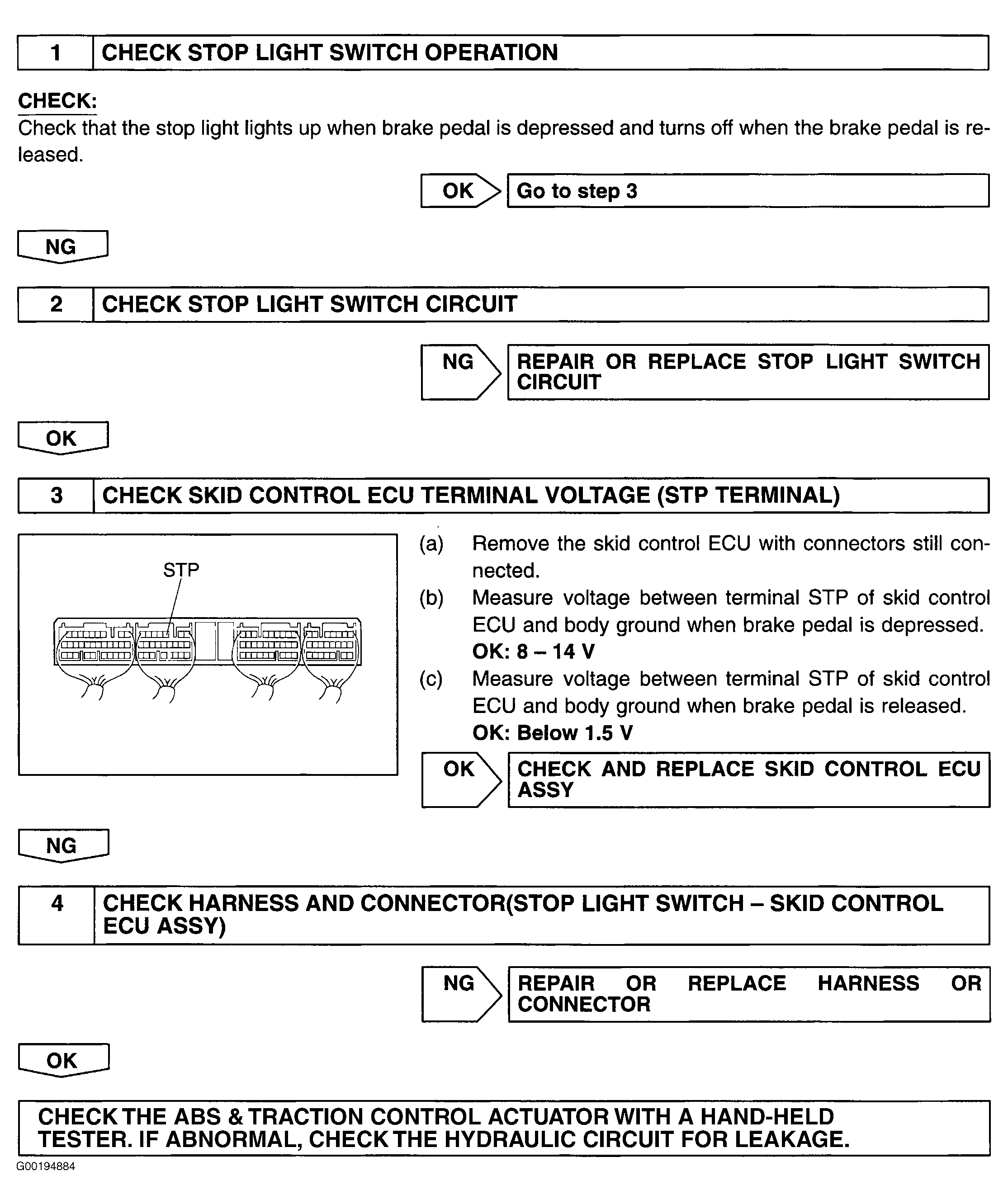

Fig 2: Testing Procedure (Stop Light Switch Circuit)
G00194884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
