Outside Rear View Mirror Assembly: Installation

1. Install the outside rear view mirror. Insert the claws placed in the upper part of the backside of the mirror into the actuator hole. See Fig 1.
2. Set the mirror in the actuator.
3. Insert the lower portion of the mirror to engage the 2 clips securely.
4. Connect the wiring harness terminal to the connector.
5. For installation of front door trim board sub-assembly, front door inside handle bezel plug, front door lower frame bracket garnish and power window regulator master switch assembly, reverse the removal procedure.

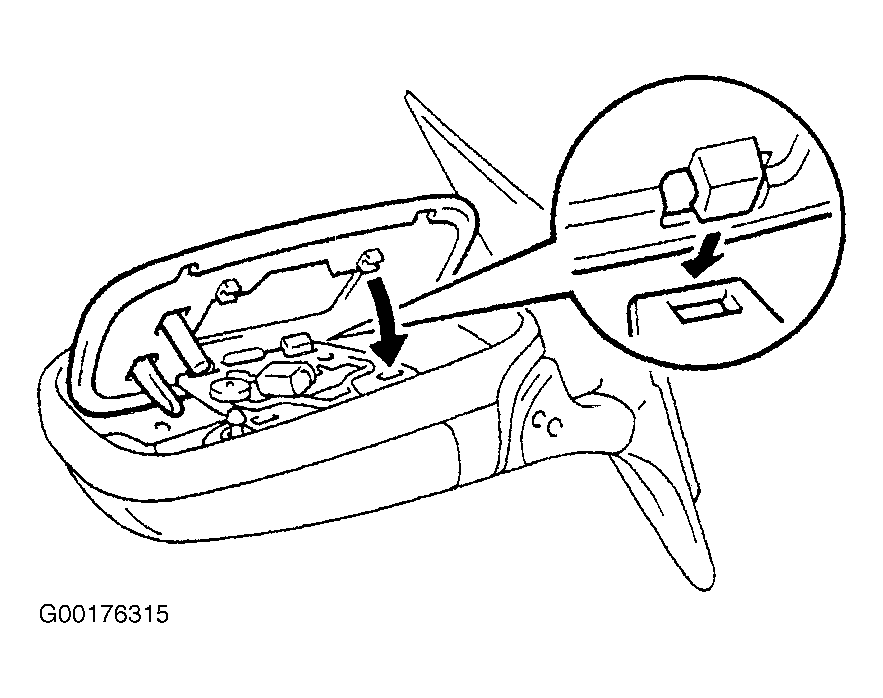

Fig 1: Installing Outside Rear View Mirror

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
