Cooling System (Mechanical): Radiator: Components

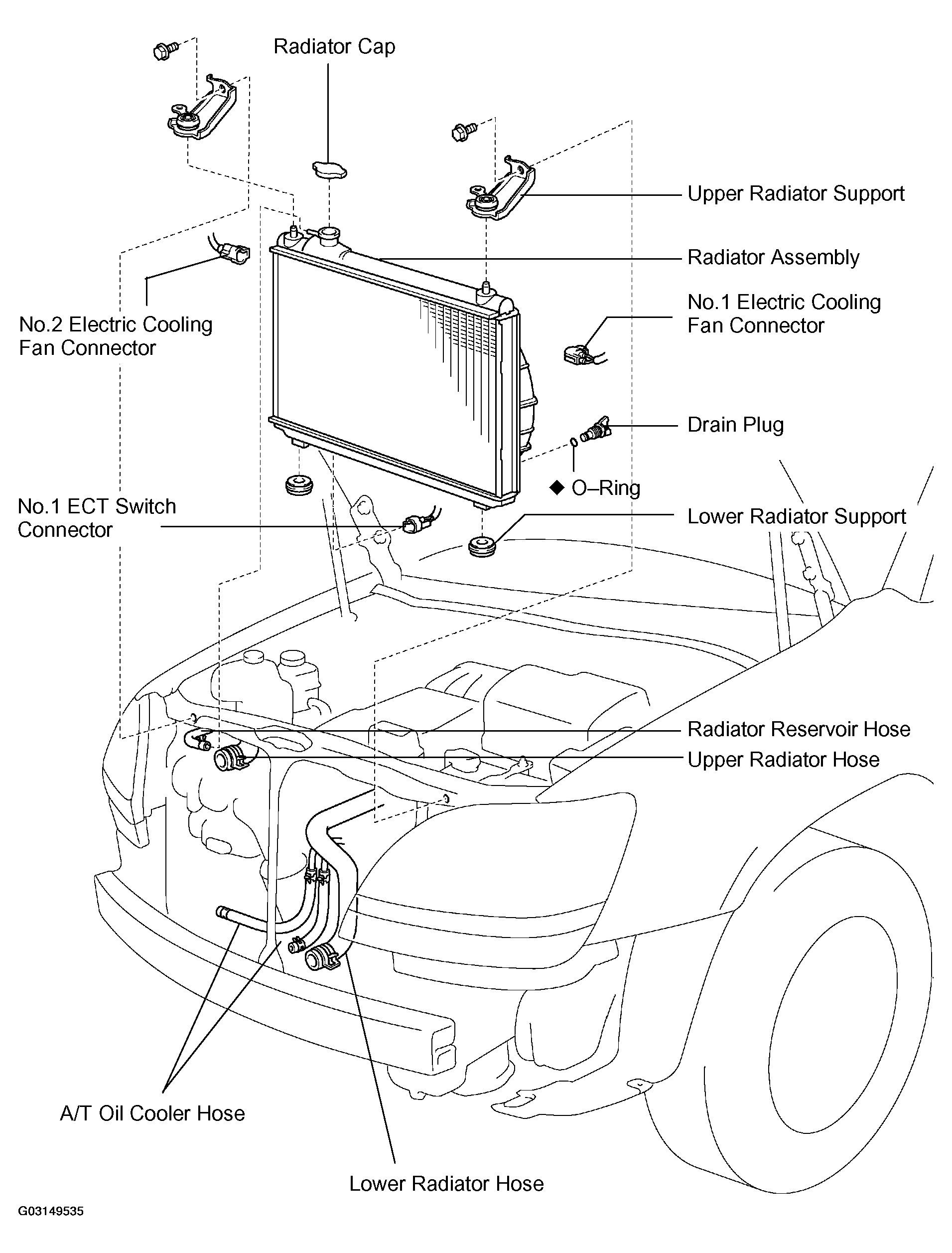

Fig 1: Identifying Components For Radiator Removal (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

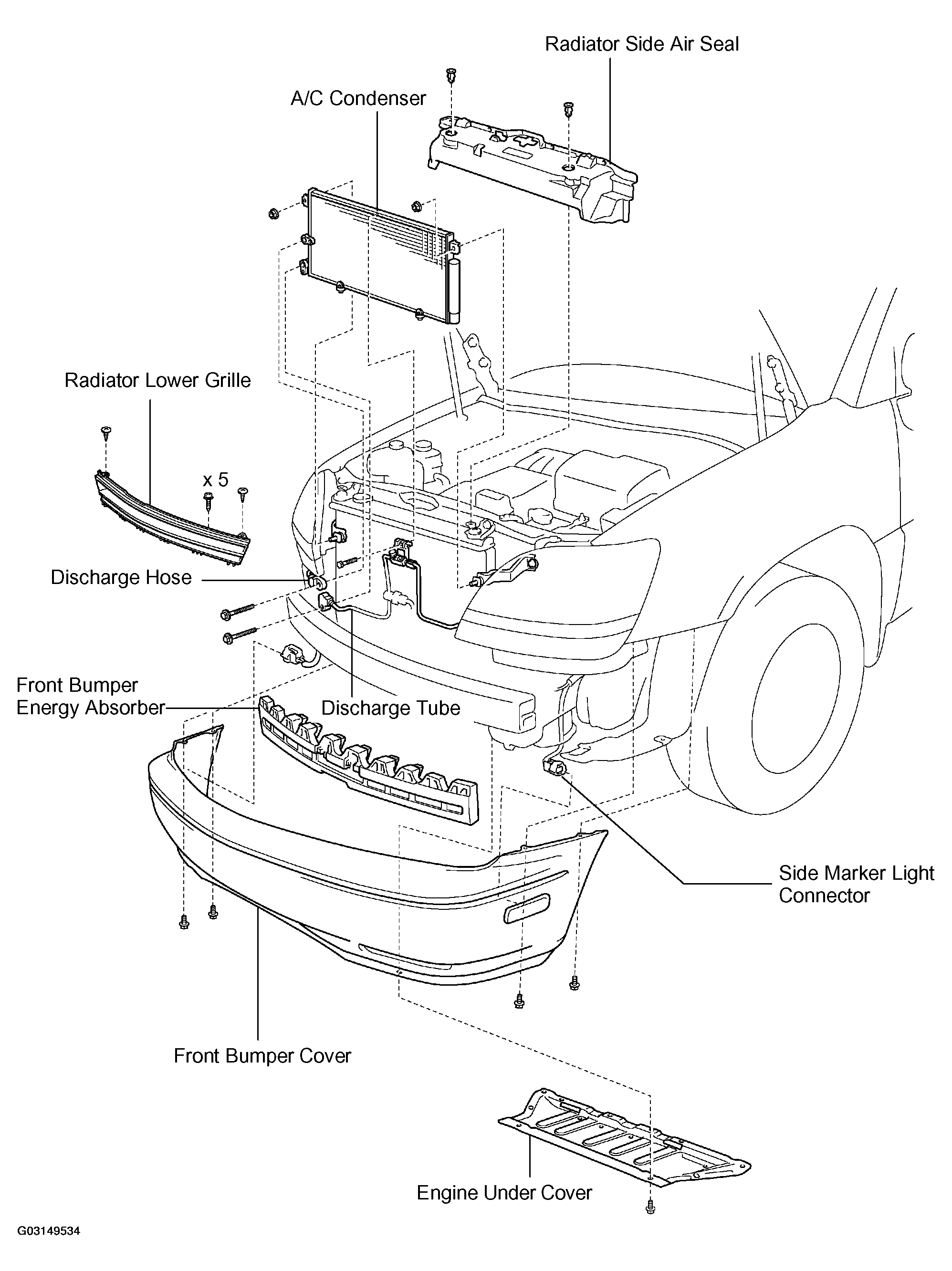

Fig 2: Identifying Components For Radiator Removal (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

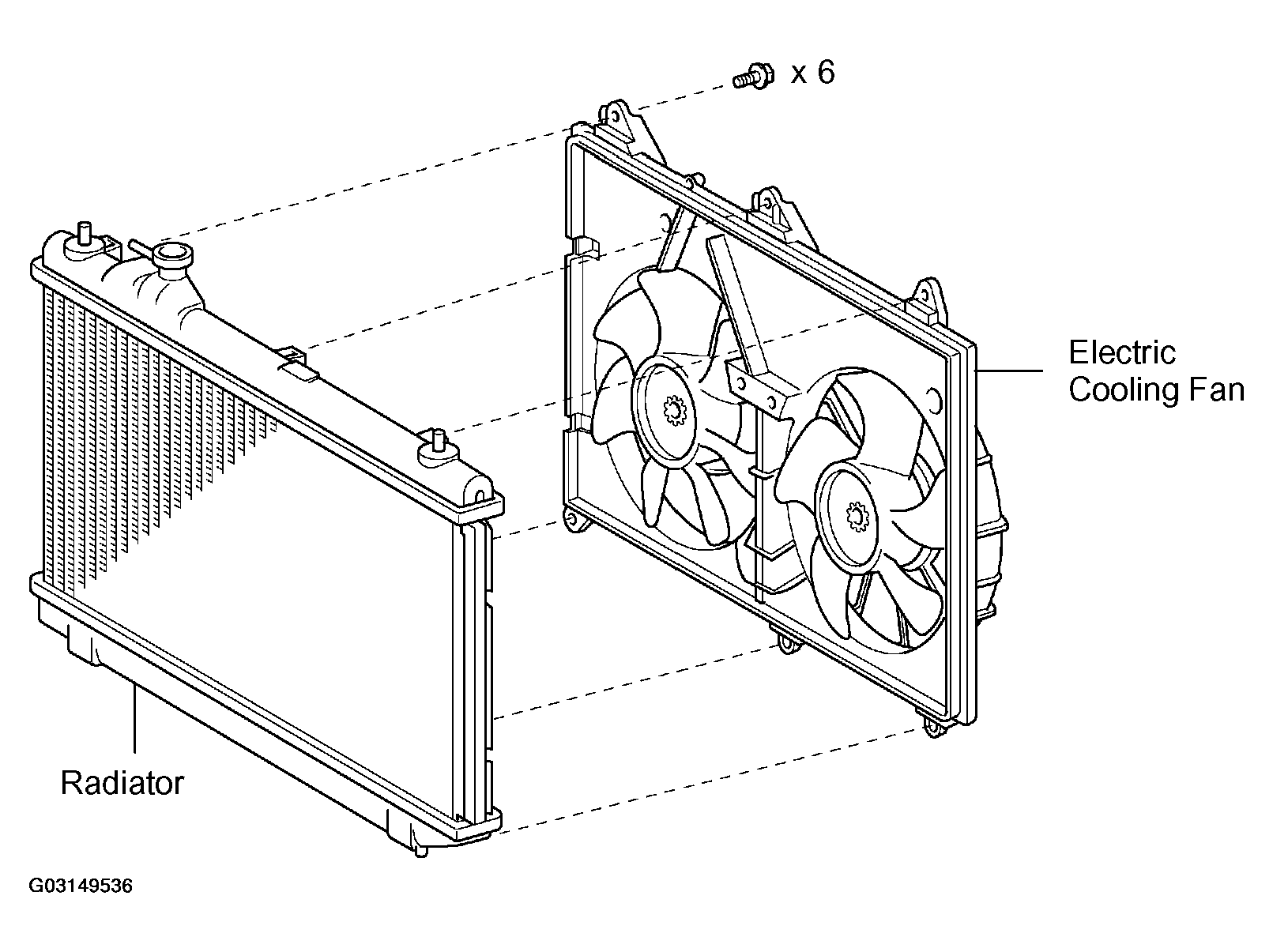

Fig 3: Removing Electric Cooling Fan From Radiator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

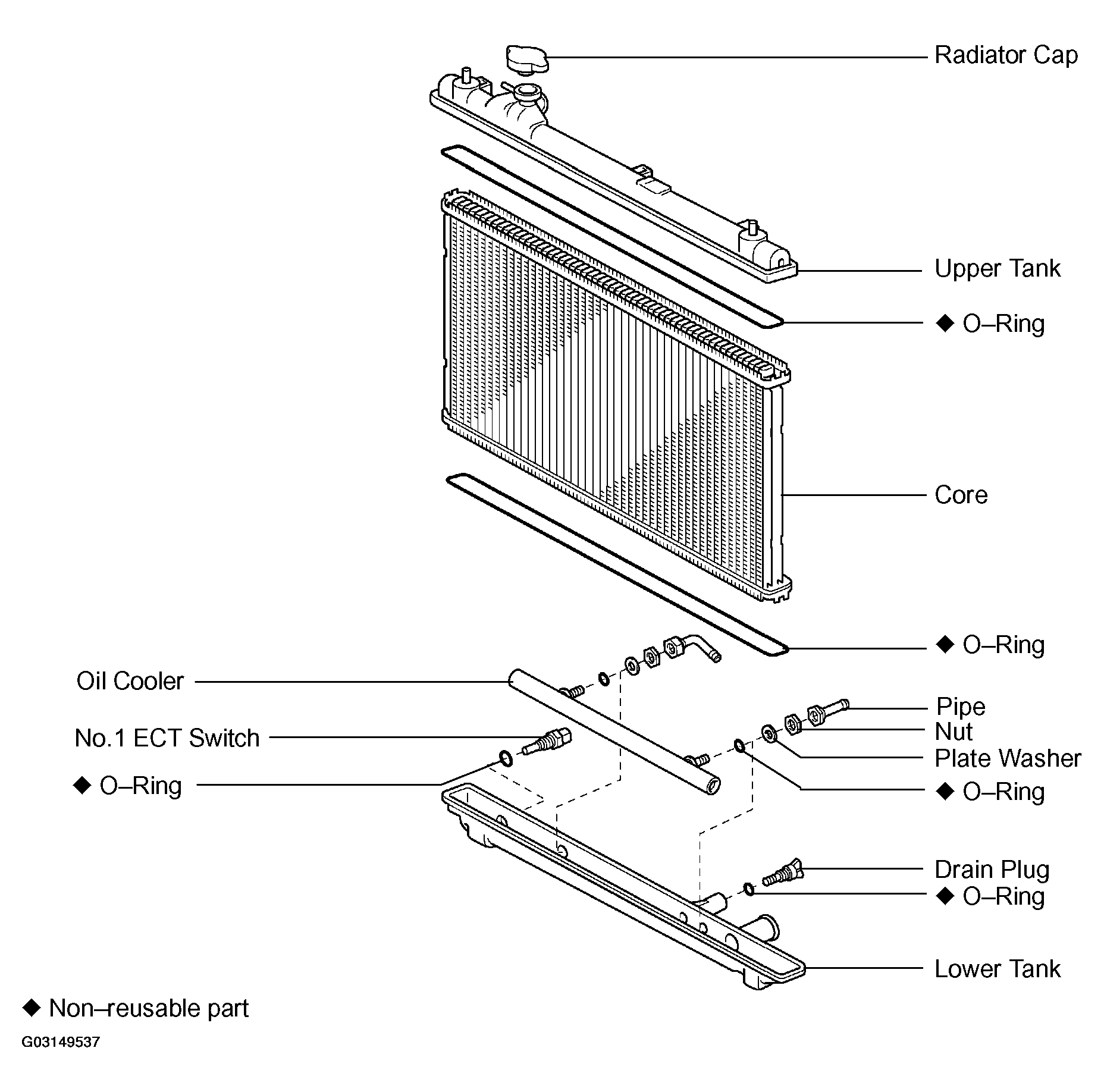

Fig 4: Exploded View Of Radiator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
