Instrument Panel Junction Block

Instrument panel junction block (J/B) is located behind left side of instrument panel. See Fig 1.

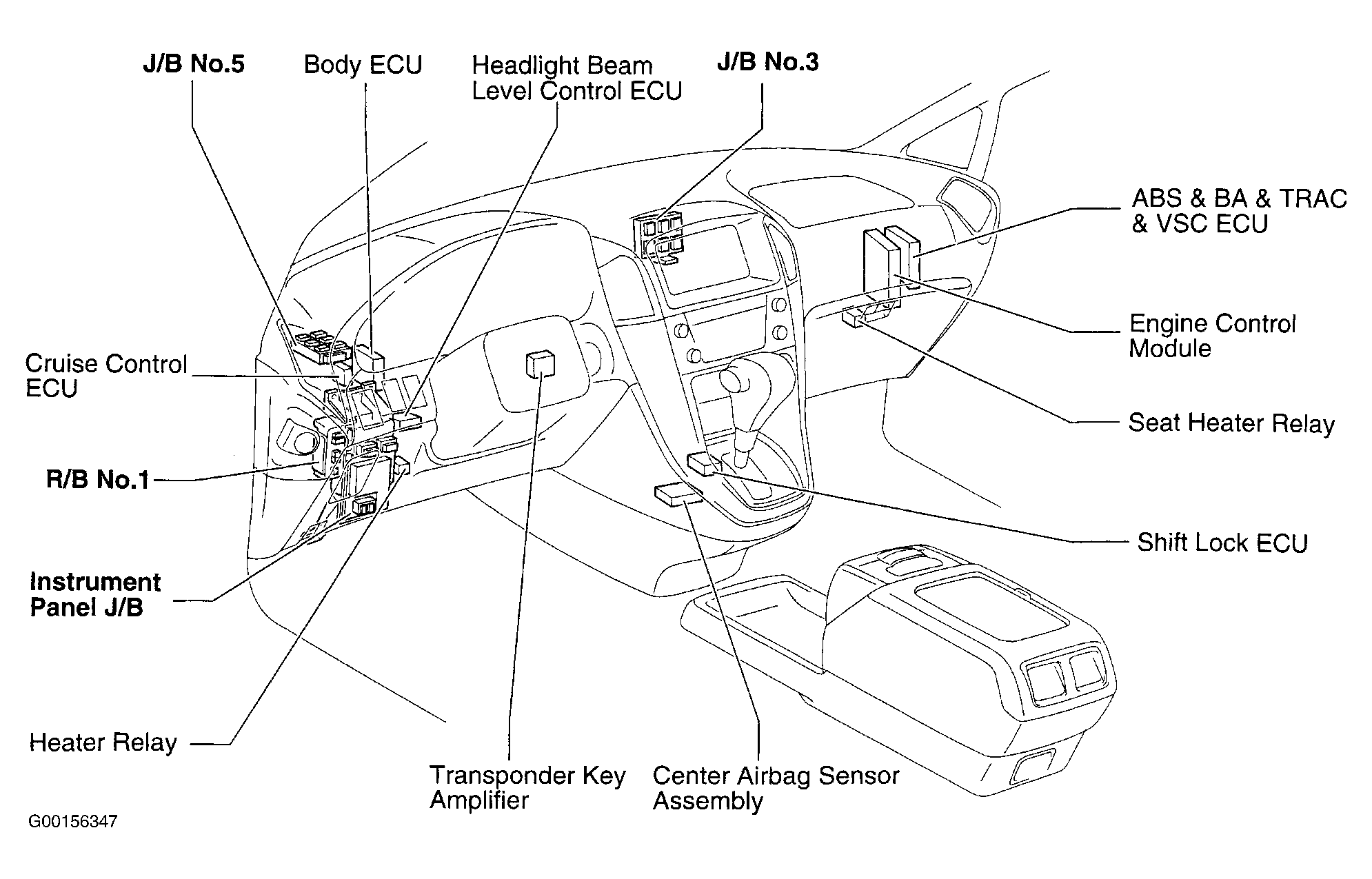

Fig 1: Locating Instrument Panel Junction Block& Relay Block No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

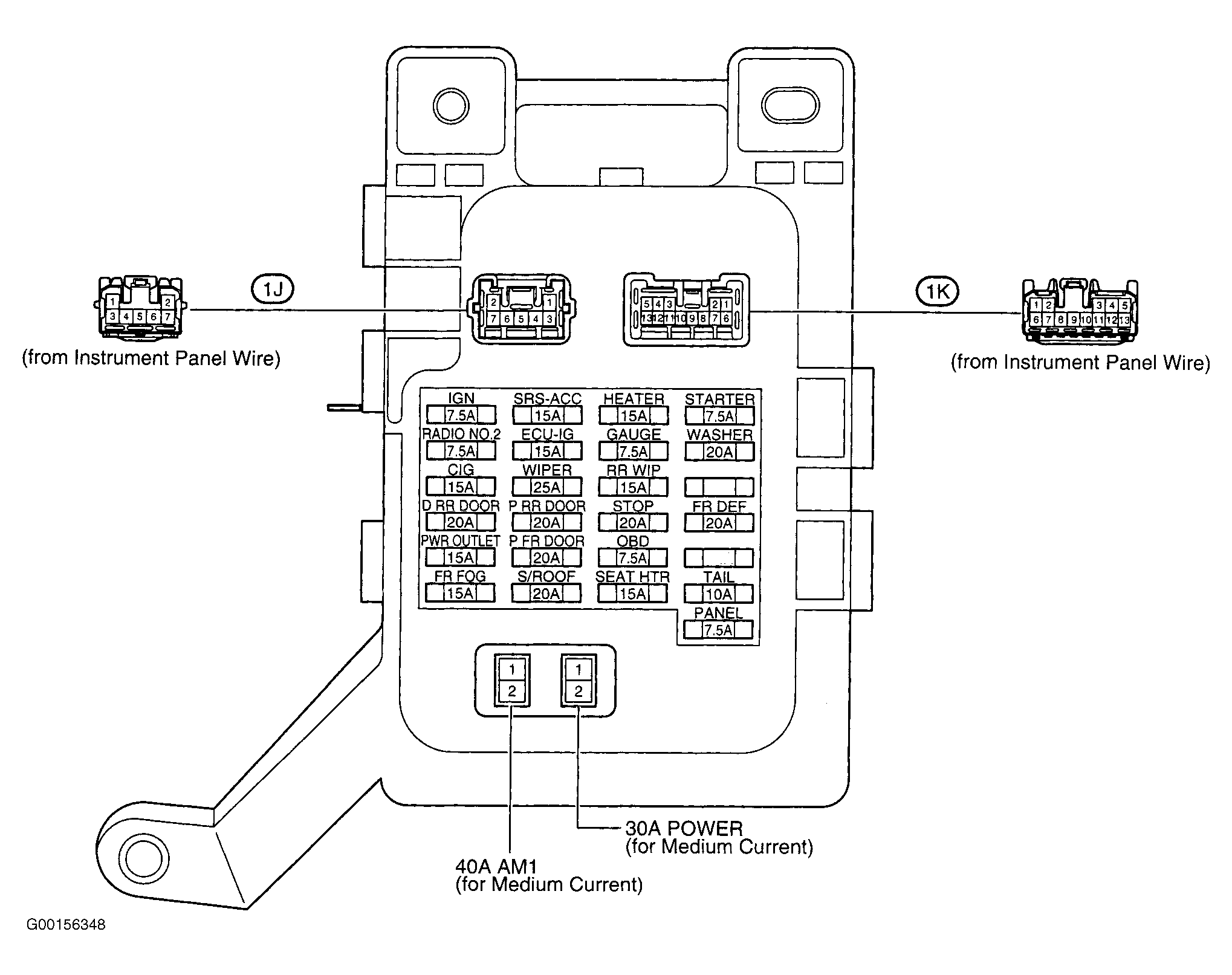

Fig 2: Identifying Instrument Panel Junction Block Fuses

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

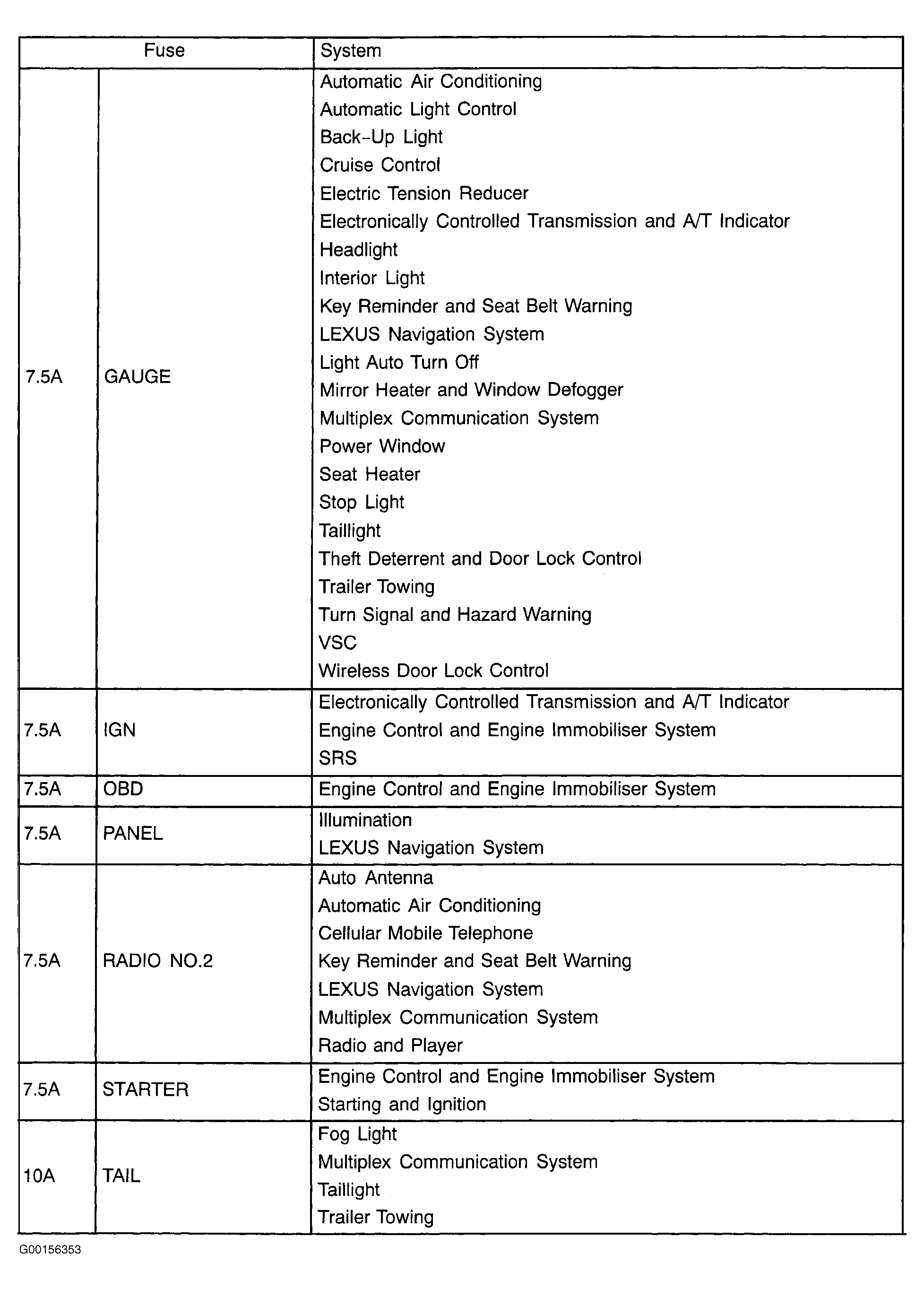

Fig 3: Instrument Panel Junction Block Legend (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

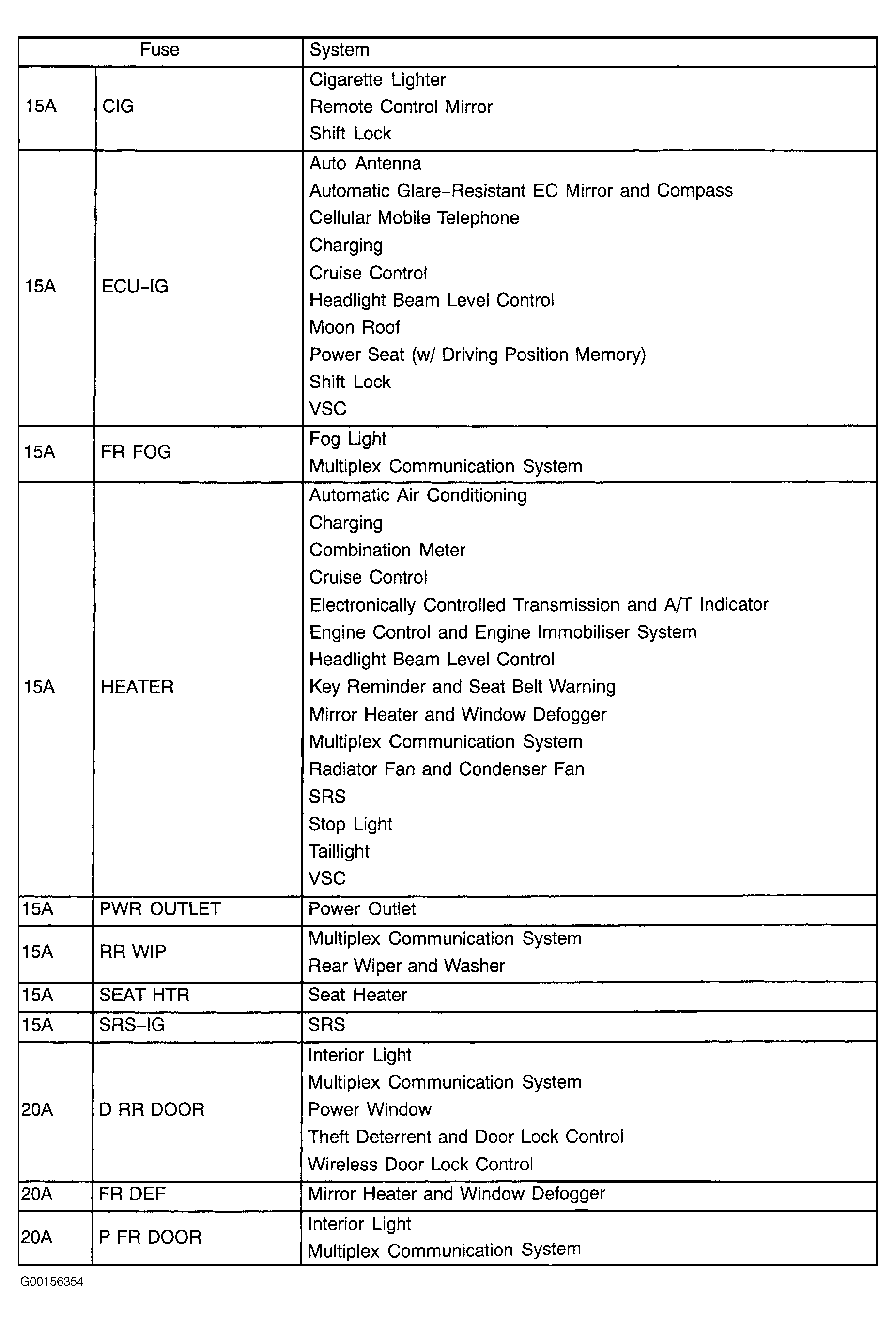

Fig 4: Instrument Panel Junction Block Legend (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

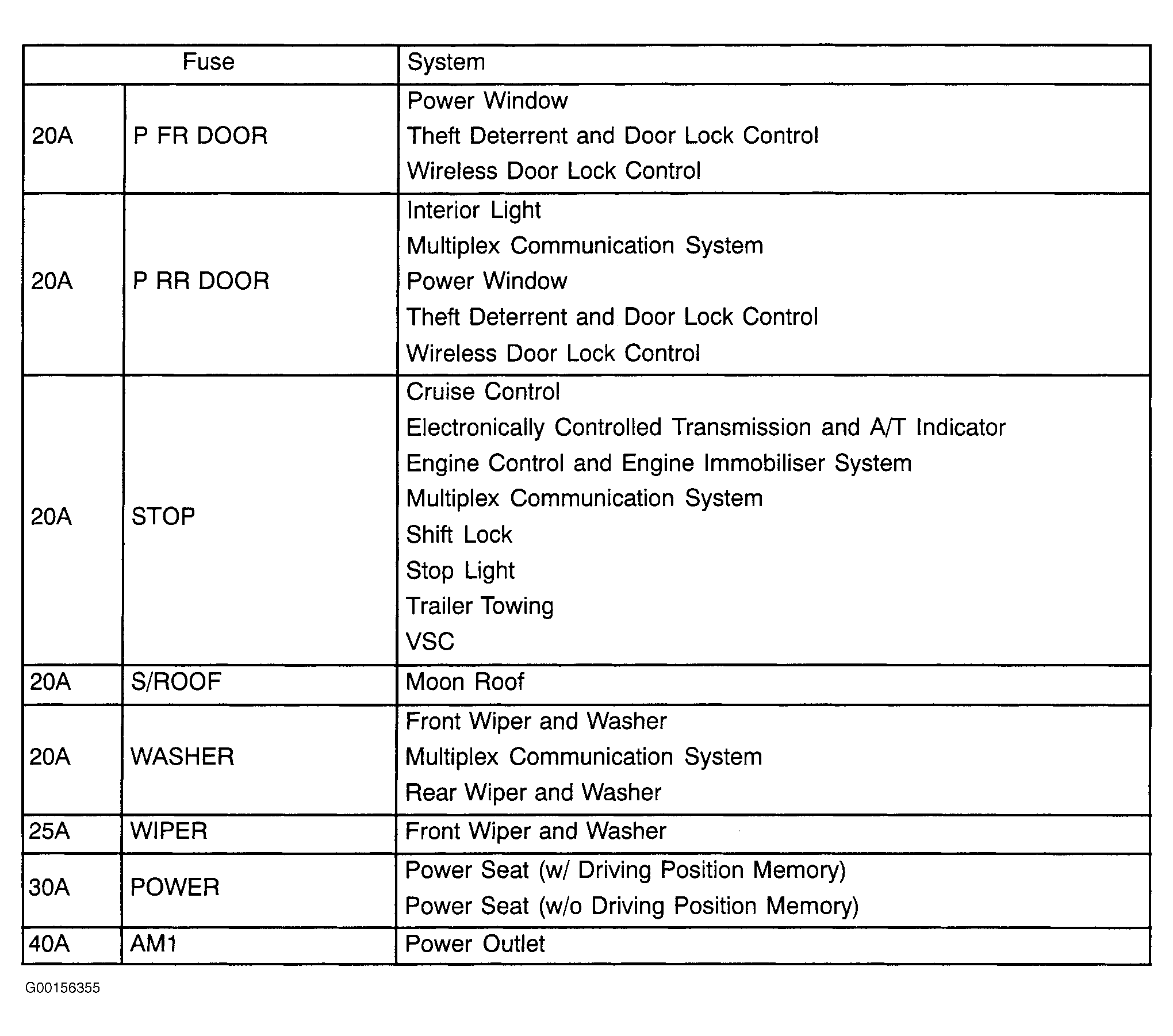

Fig 5: Instrument Panel Junction Block Legend (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
