Fusible Link Block

Fusible link block is located near engine room junction block (J/B). See Figure.

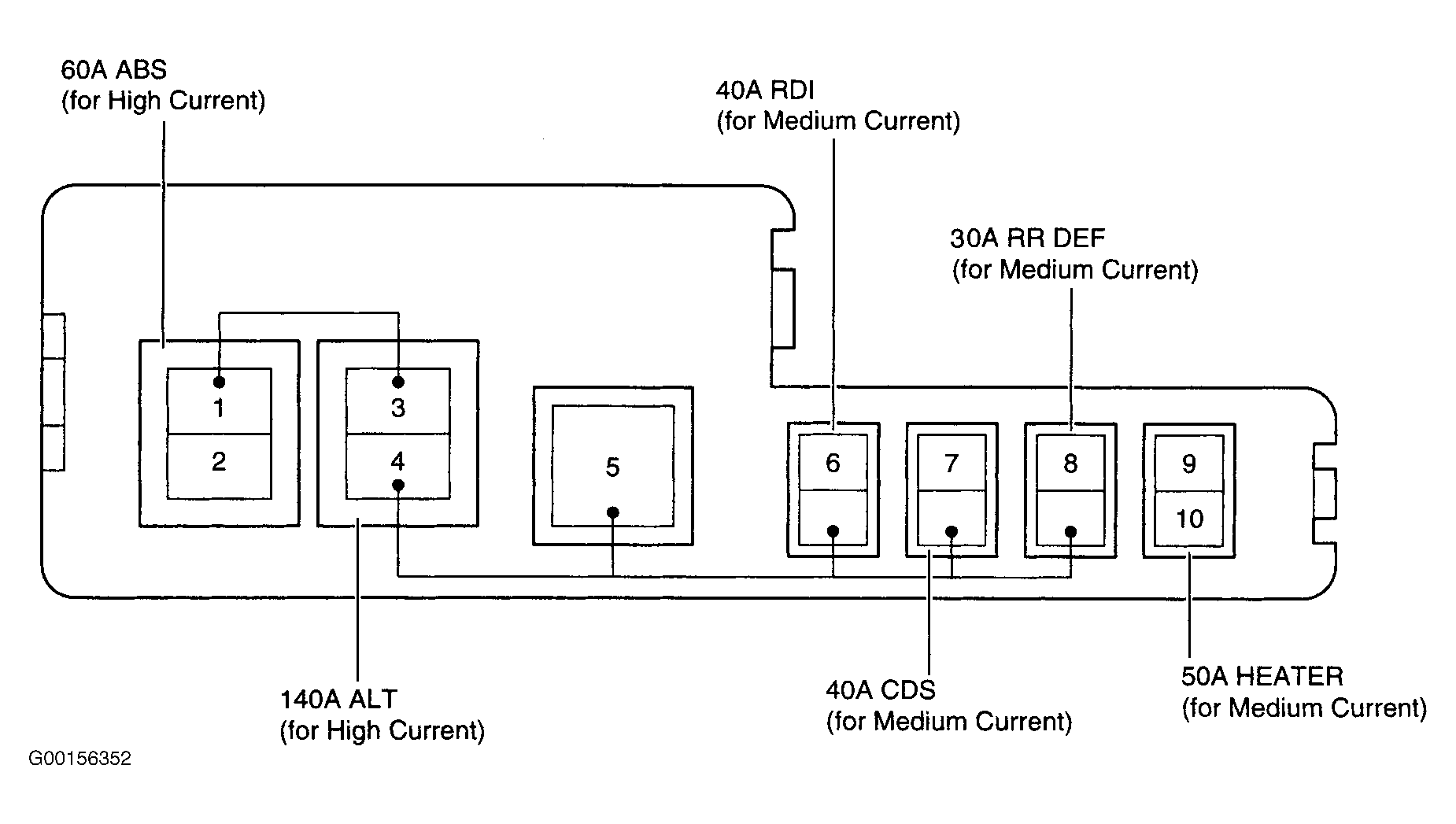

Fig 1: Identifying Fusible Link Block
G00156352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

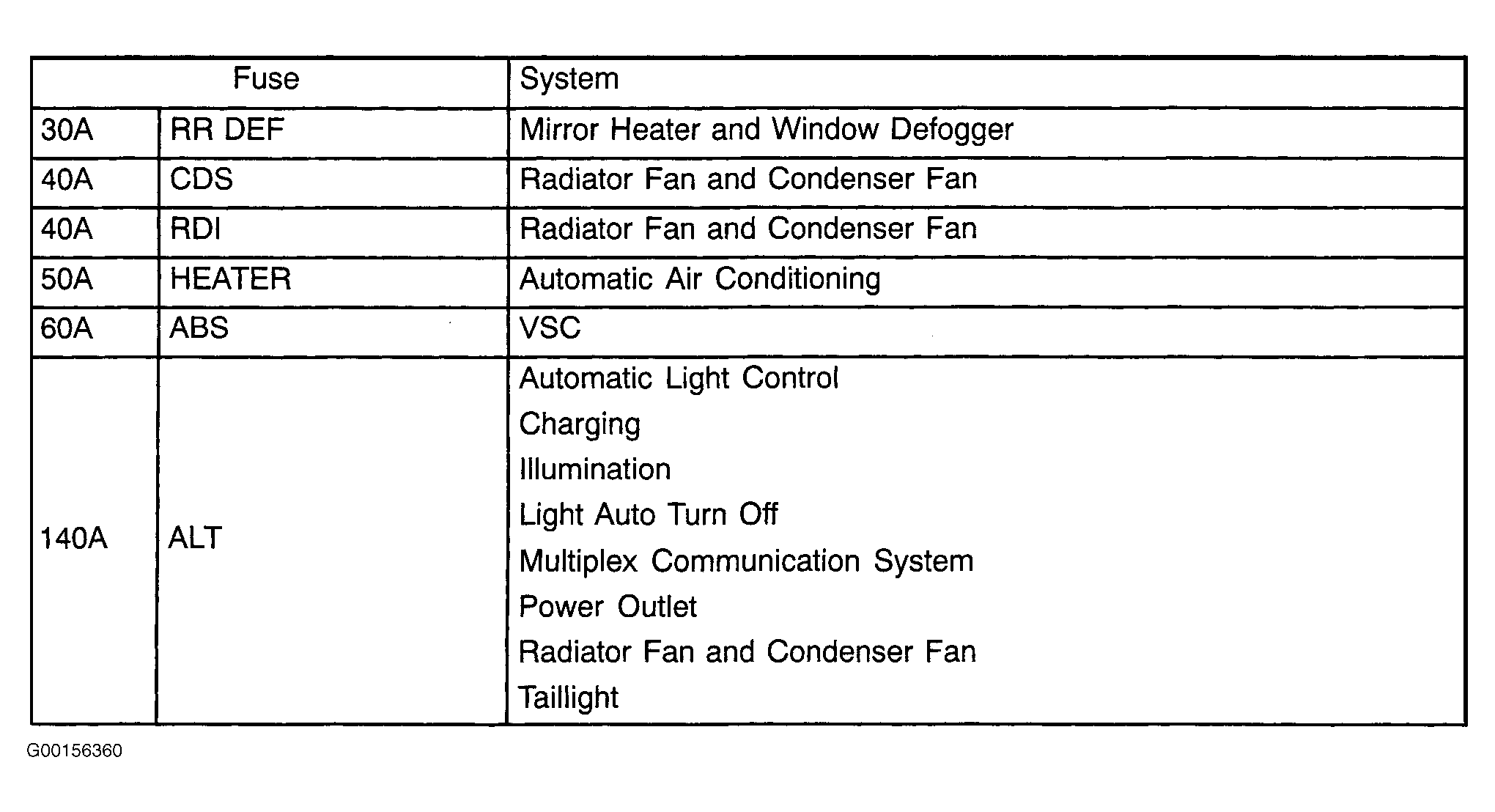

Fig 2: Fusible Link Block Legend
G00156360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
